WX1 Micro OEM Peristaltic Pumps
- Models: WX1
- Maximum channel quantity: 1
- Reference flow rate: ≤50ml/min
■ Tube inlet and outlet directions can be adjusted according to user’s applications (can be rotated 180 °).
■ Fine workmanship, compact and compact structure
■ Light weight, only 41g
■ Low noise, suitable for supporting small household appliances
■ 3-roller low-pulse design, suitable for micro dosing
■ High-speed micromotors suitable for interval operation
■ The back of the pump body is designed with mounting holes, which can be directly fixed on the user equipment.
WX1 Micro OEM peristaltic pump offers a flexible design that allows for a 180° rotation to adjust the inlet and outlet directions of the tube, providing exceptional versatility. Weighing just 41g and operating with low noise, this pump is ideal for use with small household appliances. It features a 3-roller low-pulsation design, supports micro-dosing, and is equipped with a high-speed micromotor, making it suitable for interval operation.
WX1 Micro Peristaltic Pump is available in multiple DC voltage options, including 3V, 5V, 6V, and 12V, ensuring compatibility with a wide range of power systems. The pump body also includes a convenient mounting hole, allowing for direct attachment to equipment, further enhancing installation ease and flexibility.

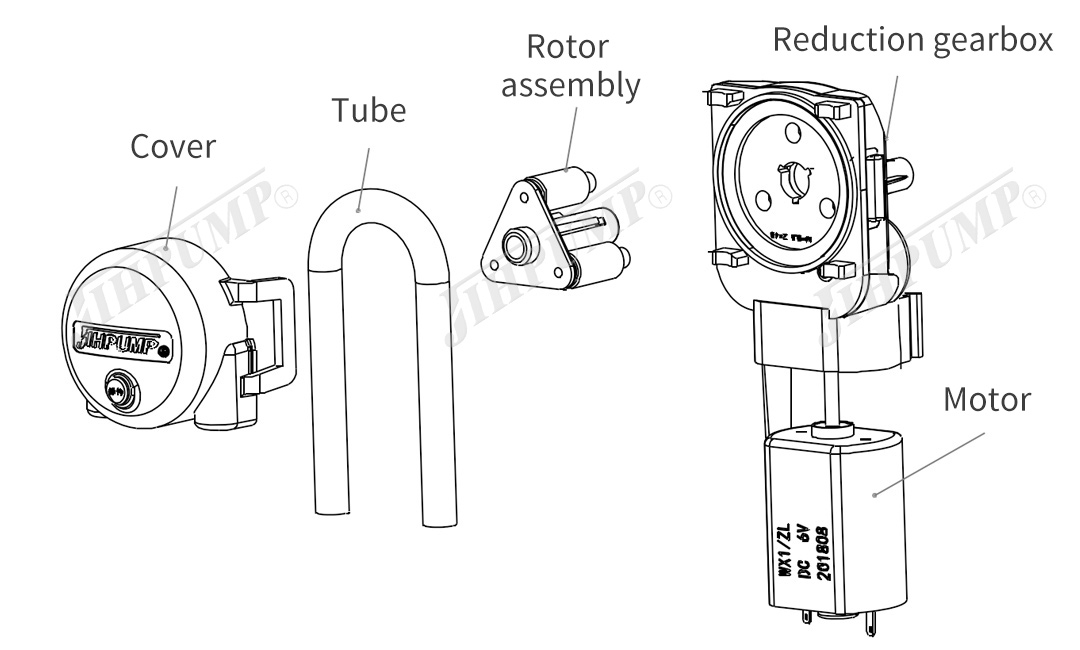

Product Configuration
Product Parameters
| Product Parameters | |
| Product Model | WX1 |
| Motor Type | Geared DC motor |
| Voltage | DC3～6V / DC6～12V |
| Power | 1～3W |
| Motor Life | ≥150h |
| Weight | 41g |
| Work Environment | Temperature 0 (no icing)～60℃, relative humidity≤85% |
| Outlet Pressure | ≤0.1MPa |
| Tube Connection Method | Standard: Direct joint,Hard tube joint |
| Installation Method | Pump body with mounting holes. |
| Noise | ≤55dB （Testing environment noise≤40dB. The horizontal distance between the test product and the noise meter is 0.3 meter.） |
| Function | Start/stop, cw/ccw rotation |
| Main Material | Cover: POM Rotor frame: POM Rollers: PA |
Reference Flow Rate
| Reference Flow Rate（unit: ml/min） | |||
| Motor Speed/Tube Type | Silicone tube（ID*OD*Wall unit: mm） | BPT tube | |
| 3*5*1 | 4*6*1 | 3*5*1 | |
| 3~6V 116rpm | 13～26 | 18～45 | 12～23 |
| 6~12V 116rpm | 11～28 | 20～50 | 10.5～28 |
| Flow Description | The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water. | ||
Typical Applications
Sweeper, mopper, scrubber, aromatherapy machine, clothes dryer (aromatic wrinkle removal), cleaning armrest, portable smoke analyzer, intelligent toilet, titration (hydroponic, coral), beauty instrument

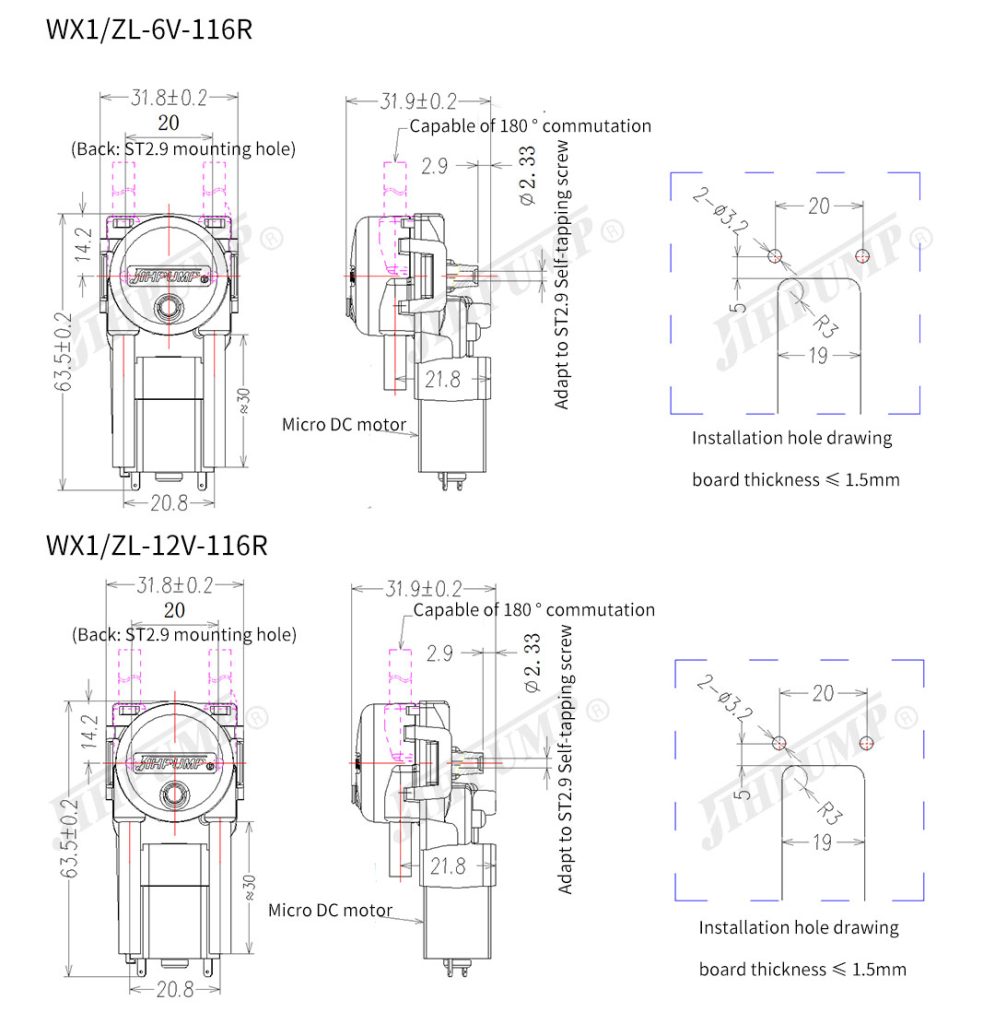

Overall Dimension
