DT Multi-channel Easy Load Peristaltic Pump Heads
- Models: DT Pump head
- Maximum channel quantity: 12
- Reference flow rate: ≤55ml/min(Reference flow of single channel）
■ The product is formed by exquisite and precise molds, industrial design
■ Dust-proof back cover design, more hygienic and clean
■ Easy-to-install peristaltic pump head, easy to disassemble and install tubes
■ The pump head can be matched with various structures such as OEM bracket-type peristaltic pumps and complete pump products.
■ The pump head can be installed with 1×1, 2×1, 3×1 and other tubes with a wall thickness of 1mm
■ DT pump head is available in 2/3/4/6 multi-channel options, or 2 pump heads can be connected in series
DT Multi-channel Easy Load Peristaltic Pump Head ensures exceptional performance and durability through precise molding and industrial-grade design. Its dust-proof back cover enhances hygiene standards, while its convenient installation features simplify tubing assembly and disassembly. This pump head is compatible with various structures, including OEM bracket-style peristaltic pumps and complete pump systems, enabling flexible adaptation to different application needs. It supports 1mm wall thickness tubing in 1×1, 2×1, and 3×1 configurations and offers options for 2, 3, 4, and 6 channels, with the capability to connect two pump heads in series, significantly improving fluid transfer flexibility and efficiency.
Product Configuration
Product Parameters
| Product Parameters | |
| Product Model | DT |
| Speed Range | 0~150rpm |
| Number of Rollers | 8-roller |
| Work Environment | Temperature 0～60℃, relative humidity＜85%RH |
| Weight | 420g （DT4） |
| Outlet Pressure | ≤0.10MPa |
| Motor Torque | Static torque 100N.cm（≤100rpm）/Static torque 1400N.cm(≤150rpm) |
| Main Material | Front support/Back support：PES Roller：POM Wheel frame: 304 stainless steel |
| Other | Single pump head has 2/3/4/6 channels and can be connected in series with 2 pump heads |
Reference Flow Rate
| Reference Flow of Single Channel (unit: ml/min) | ||||||
| Motor Speed/Tube Type | Silicone tube | BPT tube | ||||
| 1*1(ID1*OD3) | 2*1(ID2*OD4) | 3*1(ID3*OD5) | 1*1(ID1*OD3) | 2*1(ID2*OD4) | 3*1(ID3*OD5) | |
| 150rpm | 10 | 30 | 50 | 9.5 | 30 | 55 |
| Flow Description | 1. The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water. 2. The total flow of multiple channels ≈ single channel flow * number of channels | |||||
Typical Applications
Laboratory, Industrial production, Pharmaceutical granulation coating, Medical equipment

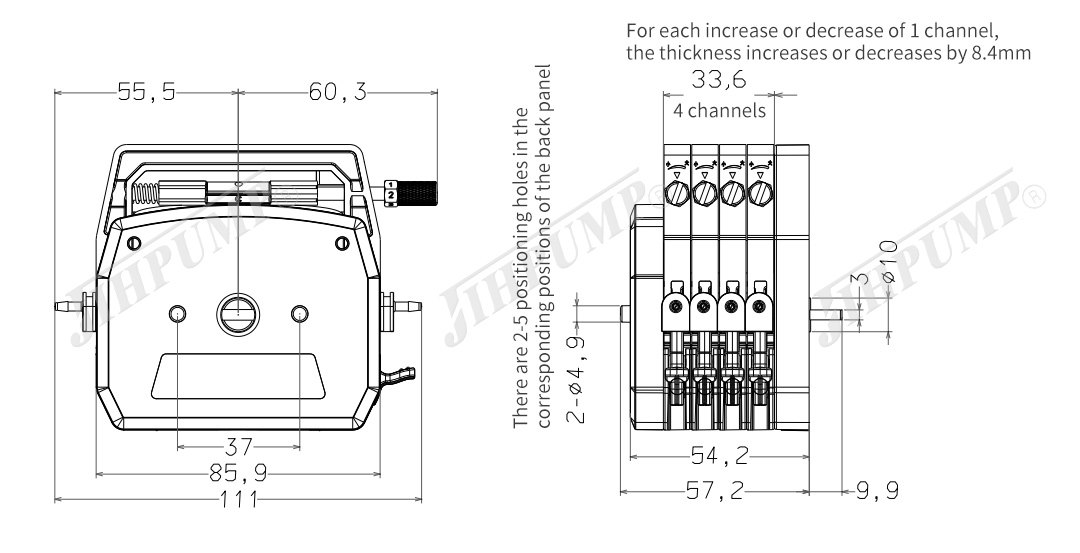

Overall Dimension
