253D Easy Load Peristaltic Pump Heads
- Models: 253D Pump head
- Maximum channel quantity: 2
- Reference flow rate: ≤5400ml/min
■ Easy-to-install peristaltic pump head, easy to disassemble and install tubes;
■ The pump head can be installed with 35# and 36# tubes, and the flow rate of a single pump can reach 5.4L/min;
■ The pump head is available in single pump head or double pump head configurations;
■ The pump head is made of special engineering plastics, which can withstand strong chemical corrosion.
253D Easy Load Peristaltic Pump Heads is user-friendly with its convenient installation design and quick tubing disassembly. 253D Easy Load Peristaltic Pump Head is compatible with 35# and 36# tubing and can achieve a single pump flow rate of up to 5.4L/min, providing an efficient fluid transfer solution. It is available in both single and dual-pump configurations that are flexible in meeting different needs. Additionally, the pump head is made from special engineering plastics, offering excellent chemical resistance to ensure stable operation in demanding environments.
Product Configuration
Product Parameters
| Product Parameters | |
| Product Model | 253D |
| Number of Rollers | 3 rollers |
| Speed Range | 60-600rpm |
| Clip tube gap | Adjustable |
| Work Environment | Temperature 0～60℃, relative humidity＜85%RH |
| Tube no.(mm) | 35#(ID7.9*OD12.7)，36#(ID9.6*OD14.4) |
| Flow Range | ≤5400ml/min |
| Main Materials | PPS |
Typical Applications
Industrial process

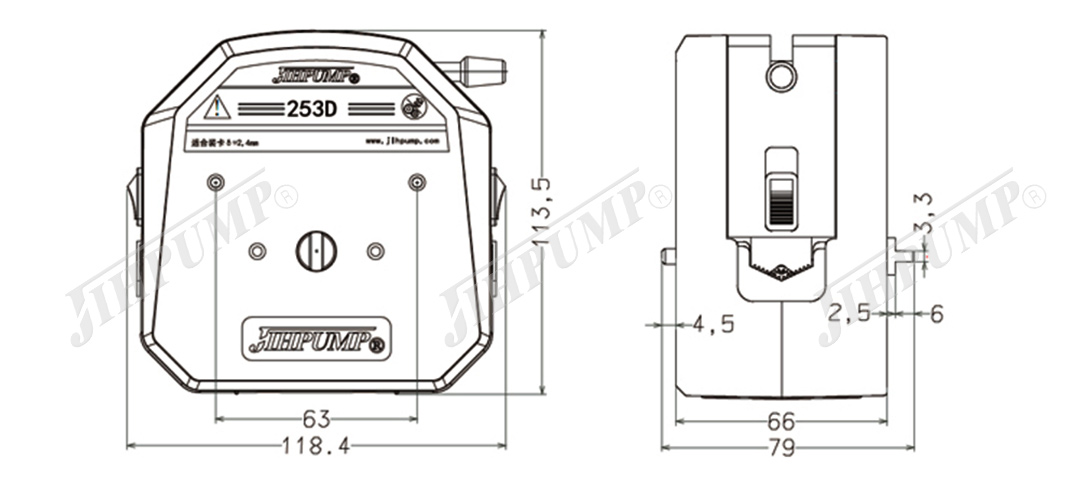

Overall Dimension
