Tygon-chemical Tube
- Models: Tygon-chemical Tube
- Maximum channel quantity:
- Reference flow rate:
■ Tygon Chemical is imported for peristaltic pump can be sued as peristaltic tub and can be sued as peristaltic tube;
■ Having relatively longer life (1000h) in Tygon® hoses;
■ Easy to inspect flowing status; smooth inner wall, fitting for pumping high viscous fluid;
■ Abroad chemical resistance, high dielectric constant;
■ Anti-aging and oxidation, ETO or high temperature sterilization;
■ Conforming to USP Class VI & FDA standard;
■ Anti-aging & anti-corrosion, the tube can be widely used in pharmacy, cosmetics, food and beverage.
The imported Tygon Chemical peristaltic pump tube is a versatile and high-performance tubing that can be used as a peristaltic pump tube or for other fluid transfer applications. With a lifespan of up to 1000 hours, it ensures long-term stable performance. The smooth inner wall helps with flow status inspection and is particularly suitable for pumping high-viscosity fluids.
This tubing has excellent chemical resistance and a high dielectric constant, along with aging and oxidation resistance, which supports both ethylene oxide (ETO) and high-temperature sterilization, and meets USP Class VI and FDA standards. Due to its aging and corrosion resistance, the Tygon Chemical peristaltic pump tube is widely used in the pharmaceutical, cosmetic, food, and beverage industries, providing safe and dependable fluid transfer solutions.
Product Parameters
| Product Parameters | |
| Product Name | Tygon-chemical Teflon-coated tube |
| Certification | Meets FDA food contact requirements |
| Life | Peristaltic pump extrusion life: ≥1000h |
| Color | Yellow and opaque |
| Advantages | Excellent chemical resistance, almost unaffected by chemical disinfectants and cleaning agents, no plasticizer cavity, anti fluid adsorption/adhesion performance. |
| Applications | Peristaltic pump extrusion tube, connecting pipe, long-term application in industrial and chemical detergent used in the transportation industry. |
| Note | 1. The values are provided by the official Saint Gobain for reference only. 2. Condition for hose life test: Using a 3-roller peristaltic pump, deliver clean water at a speed of 600rpm and 23 ℃ in an environment without pressure at the inlet and outlet, and continue running until the hose cracks. |
Product Specifications
| Tygon-chemical tube detailed dimensions（Unit: mm） | ||||||||||||

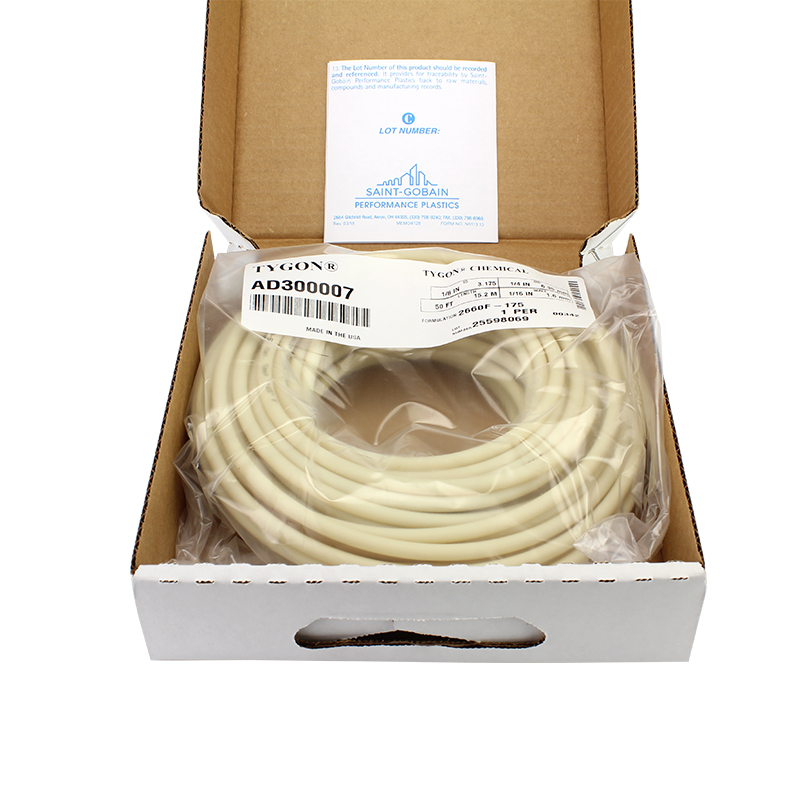

| Tygon-chemical | AD300007 | AD300012 | AD300017 | |||||||||
| Tube no. | 1*1 | 2*1 | 3*1 | 4*1 | 13# | 14# | 19# | 16# | 25# | 17# | 18# | |
| ID（mm) | 1 | 2 | 3 | 4 | 0.8 | 1.6 | 2.4 | 3.2 | 4.8 | 6.4 | 7.9 | |
| OD（mm) | 3 | 4 | 5 | 6 | 4 | 4.8 | 5.6 | 6.4 | 8 | 9.6 | 11.1 | |
| Wall Thickness（mm) | 1 | 1.6 | ||||||||||
| Hose Pressure-bearing（Mpa） | Continuous | 0.1 | 0.1 | 0.1 | 0.1 | 0.17 | 0.17 | 0.17 | 0.17 | 0.14 | 0.1 | 0.07 |
| Interval | 0.1 | 0.1 | 0.1 | 0.1 | 0.27 | 0.27 | 0.27 | 0.27 | 0.24 | 0.14 | 0.1 | |
| Tygon-chemical | AD300038 | |||||||
| Tube no. | 15# | 24# | 35# | 36# | 26# | 73# | 82# | |
| ID（mm) | 4.8 | 6.4 | 7.9 | 9.6 | 6.4 | 9.6 | 12.7 | |
| OD（mm) | 9.6 | 11.2 | 12.7 | 14.4 | 13 | 16.2 | 19.3 | |
| Wall Thickness（mm) | 2.4 | 3.3 | ||||||
| Hose Pressure-bearing（Mpa） | Continuous | 0.17 | 0.17 | 0.14 | 0.1 | 0.27 | 0.17 | 0.2 |
| Interval | 0.27 | 0.27 | 0.24 | 0.14 | 0.27 | 0.27 | 0.27 | |
| Tube no. | 88# | 92# | 86# | 90# | |
| ID（mm) | 12.7 | 25.4 | 9.5 | 19 | |
| OD（mm) | 22.3 | 35 | 21.6 | 31.6 | |
| Wall Thickness（mm) | 4.8 | 6.3 | |||
| Hose Pressure-bearing（Mpa） | Continuous | 0.14 | 0.25 | 0.25 | 0.25 |
| Interval | 0.14 | 0.3 | 0.3 | 0.3 | |
