Role of JIHPump 204KA Peristaltic Pump in Automatic Cocktail Machines
The emergence of automatic cocktail machines has revolutionized bars and the catering industry. As an essential core component, peristaltic pumps play an irreplaceable role and greatly boost the efficiency and quality of cocktail preparation. Below are the key advantages of applying peristaltic pumps in automatic cocktail machines.
I. Precise Ingredient Dispensing
1. Accurate Flow Control
Peristaltic pumps deliver cocktail ingredients such as liqueurs, fruit juices and syrups with exceptional precision. By adjusting the motor speed, users can accurately control the dosage of each ingredient. For instance, a classic Margarita requires fixed portions of tequila, Cointreau and lime juice. The peristaltic pump can dispense exactly 30 milliliters of tequila as specified in the recipe with minimal deviation, ensuring consistent flavor across every serving.
The pump also supports flexible flow adjustment to suit various cocktail recipes. It maintains stable low flow for special seasonings and bitters that are added in tiny quantities. When making a Manhattan cocktail that only needs a few drops of Angostura bitters to enrich the flavor, the peristaltic pump accomplishes this micro-dosing precisely.
2. Proportional Mixing of Multiple Ingredients
Complex cocktails usually require blending multiple raw materials. Multiple tubing sets can be installed on one peristaltic pump to convey different ingredients separately. For a fruit cocktail mixed with strawberry juice, pineapple juice, coconut water and rum, operators can program the operating duration and speed of each pump channel. The ingredients will be blended strictly according to the preset ratio, such as 20 ml strawberry juice : 15 ml pineapple juice : 10 ml coconut water : 30 ml rum, enabling efficient batching.
II. Hygiene and Safety
1. Prevention of Ingredient Contamination
Peristaltic pumps transfer liquids by squeezing flexible tubing with rollers. The liquid only contacts the inner wall of the tubing, which is commonly made of food-grade silicone or other hygienic materials. It never touches mechanical parts including motors and gears. This design effectively avoids contamination caused by corroded metal components or foreign impurities.
When switching between different ingredients, for example, from sweet syrup to acidic fruit juice, users only need to replace the tubing. There is no risk of cross-contamination from residual liquid, so the purity and safety of all cocktail ingredients are fully guaranteed.
2. Safe Operation
Peristaltic pumps are driven by low voltage power supplies. Compared with conventional high-voltage pumps, they deliver higher safety in bar environments with frequent manual operation. Even in humid areas near cleaning stations, the risk of electric shock is greatly reduced. In addition, the pump features a streamlined structure with no exposed rotating parts, which eliminates potential hazards such as fingers getting caught during operation.
III. Integration with Automatic Cocktail Systems
1. Seamless Connection with Control Systems

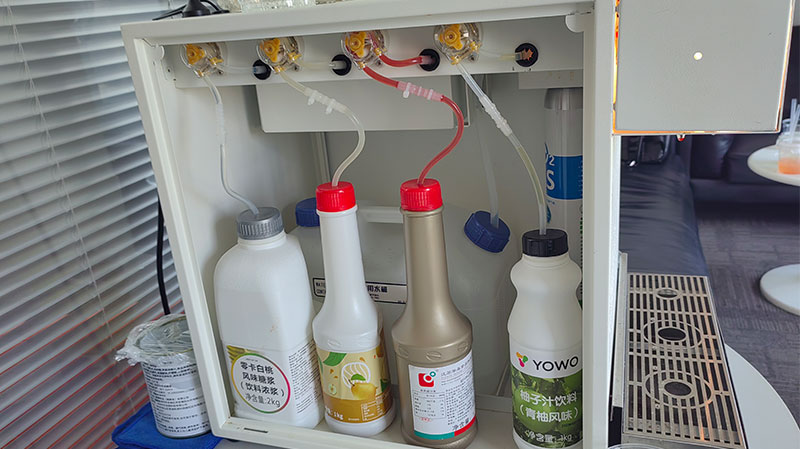

Peristaltic pumps can be easily integrated with the control system of cocktail machines. Controlled by microprocessors or PLCs, the equipment automatically starts and stops corresponding pumps following pre-set cocktail recipes. When a user selects a Mojito on the operation panel, the control system activates the pumps for rum, mint syrup, soda water and lime juice in sequence to complete automatic dosing and mixing.
2. Higher Cocktail-Making Efficiency
In busy bars, cocktail machines equipped with peristaltic pumps can prepare drinks rapidly and handle multiple orders simultaneously. During peak hours, multiple pump channels work in parallel to dispense ingredients for different cocktails. After simple stirring and blending, a variety of drinks can be served in quick succession. This dramatically improves working speed, shortens customer waiting time and optimizes overall service efficiency.
Product Features
- High-precision fluid delivery
- Long service life and outstanding reliability
- Tool-free tubing replacement
- Anti-drop design for pump cover
- Four motor types for selection
- Three tubing bore sizes available
- Multiple pump cover color options
- Wide adaptability for various industries
Flow Rate Range
Combined with different motor types and tubing inner diameters, the flow range of the 204KA peristaltic pump reaches 0 ~ 680 mL/min.
Product Parameters

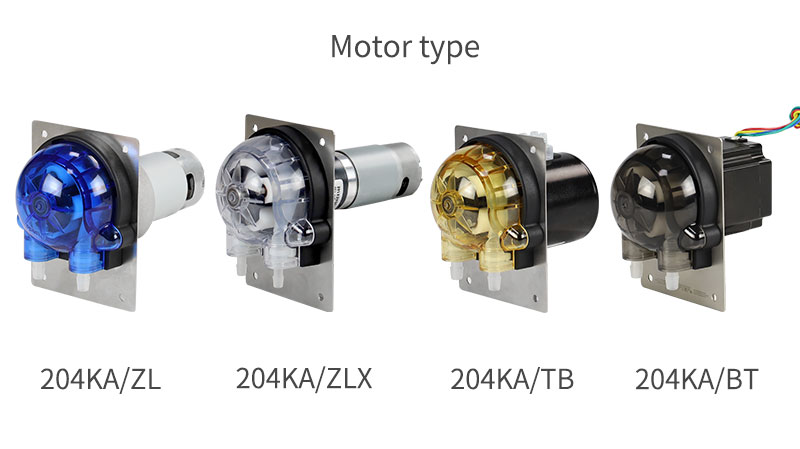

| Product Model | 204KA/ZL | 204KA/ZLX | 204KA/BT | 204KA/TB |
| Motor type | DC gear motor | DC planetary gear motor | Stepper motor | Synchronous motor |
| Voltage | DC12V/24V | DC24V | AC 220V 50Hz | |
| Power | 7W～12W | 5W～15W | 48W | ≤25W |
| Weight | 765g | 530g | 930g | 760g |
| Working Environment | Temperature 0~60℃, relative humidity <85%RH | |||
| Outlet Pressure | ≤0.17MPa | |||
| Tube Connection Method | Standard: Direct joint Optional: Thread joint,Hard tube joint,Reducer threaded joint,Adjustable joint | |||
| Noise | ≤65dB | ≤60dB | ≤53dB | ≤60dB |
| (Testing environment noise≤40dB. The horizontal distance between the test product and the noise meter is 1 meter.） | ||||
| Function | Start/stop, cw/ccw rotation, up/down speed | Start/stop, cw/ccw rotation | ||
| Main Material | Pump cover: PC Roller: POM Base: PA Installation plate: 304 stainless steel | |||
Product Configuration
- Pump Cover: Various colors available for aesthetic matching and visual management.
- Pump Tubing: Three specifications: 16#: ID 3.2 × OD 6.4 mm 25#: ID 4.8 × OD 8 mm 17#: ID 6.4 × OD 9.6 mm
- Roller Assembly: Equipped with 2 driving rollers and 2 guide rollers for smoother delivery and lower pulsation. Rollers are made of imported wear-resistant self-lubricating bar stock and processed by high-precision CNC lathes for superior accuracy and durability.
- Motor Options: Four types including DC motor, DC planetary motor, stepper motor and synchronous motor. DC motors and DC planetary motors are suitable for applications with standard precision requirements and short-term intermittent operation. Stepper motors deliver high precision and support long-term continuous operation. Synchronous motors fit scenarios with ordinary precision demands for either continuous or intermittent running.
The JIHPUMP 204KA peristaltic pump brings remarkable advantages to automatic cocktail machines, including precise flow control, strong compatibility and easy cleaning & maintenance. Users shall take full consideration of flow range, pressure requirements and tubing material during model selection.
This pump not only elevates cocktail quality and maintains consistent taste, but also greatly enhances preparation efficiency to meet the demand for fast and accurate service in bars and similar venues. As the cocktail industry continues to evolve, the application of JIHPUMP peristaltic pump technology in automatic cocktail machines will keep being optimized and innovated.
