204KA Quick Mounting Panel OEM Peristaltic Pumps
- Models: 204KA
- Maximum channel quantity: 1
- Reference flow rate: ≤680ml/min
■ Quick installation peristaltic pump product, tube replacement is convenient and quick

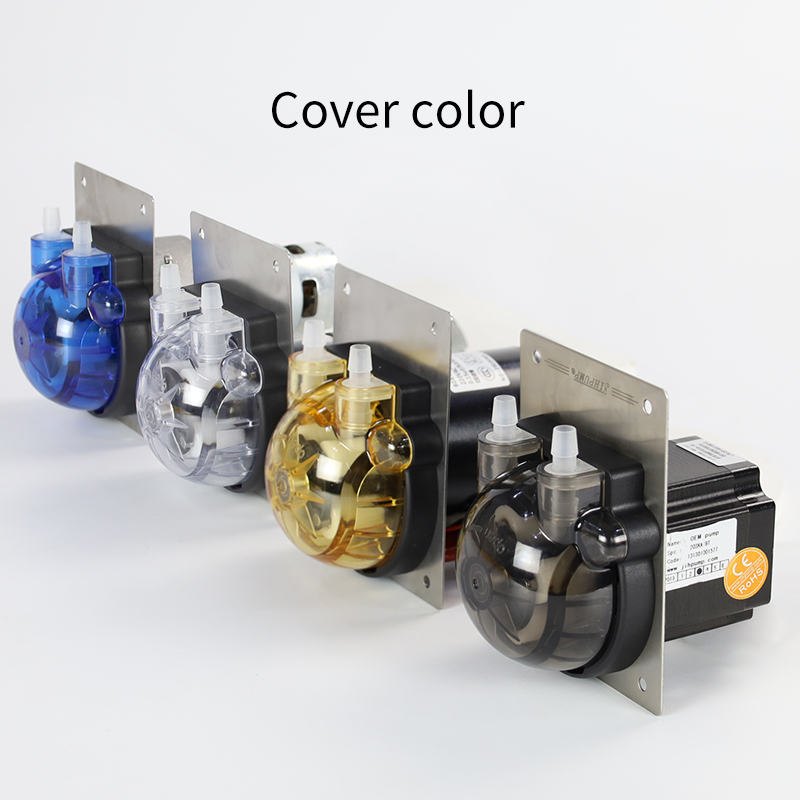

■ The product is fashionable and beautiful, with multiple colors available (clear, brown, yellow, blue) for easy operation and visual management
■ The product has a large-scale covering structure to ensure reliable operation of the product
■ 2 working rollers+ 2 guide rollers structure, smaller impact force and smoother operation
■ Can be installed with 1.6 wall thickness peristaltic pump tube
■ Can be adapted to general DC, DC planetary, stepper, synchronous and other drive motors
■ The product comes standard with a mounting plate, which does not need to be added by the user. It can also be canceled according to the user’s needs
204KA Quick Mounting Panel OEM peristaltic pump is an ideal choice for fluid transfer, featuring an innovative and aesthetically pleasing design with multiple color options. This pump provides quick and easy tube replacement and utilizes a large coverage structure to guarantee reliability. Its unique configuration of 2 working rollers and 2 guiding rollers minimizes impact, resulting in smoother operation.
It is compatible with 1.6mm wall thickness peristaltic pump tubing and can accommodate various drive motors, including universal DC motors, DC planetary motors, stepper motors, and synchronous motors. The product comes standard with a mounting plate, eliminating the need for additional installation steps, though it can be removed based on user requirements.

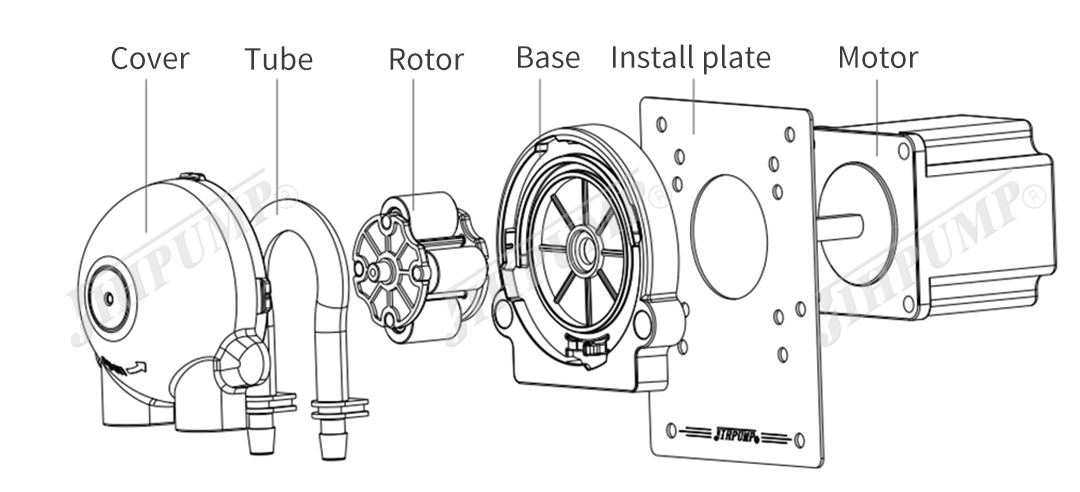

Product Configuration
Product Parameters
| Product Parameters | ||||
| Product Model | 204KA/ZL | 204KA/ZLX | 204KA/BT | 204KA/TB |

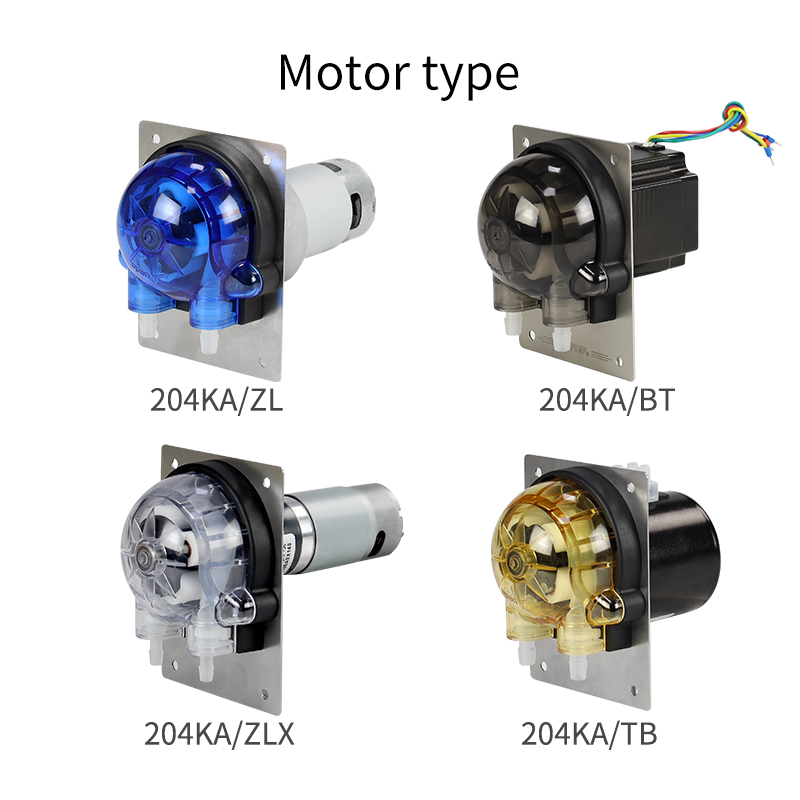

| Motor type | DC gear motor | DC planetary gear motor | Stepper motor | Synchronous motor |
| Voltage | DC12V/24V | DC24V | AC 220V 50Hz | |
| Power | 7W～12W | 5W～15W | 48W | ≤25W |
| Weight | 765g | 530g | 930g | 760g |
| Working Environment | Temperature 0~60℃, relative humidity <85%RH | |||
| Outlet Pressure | ≤0.17MPa | |||

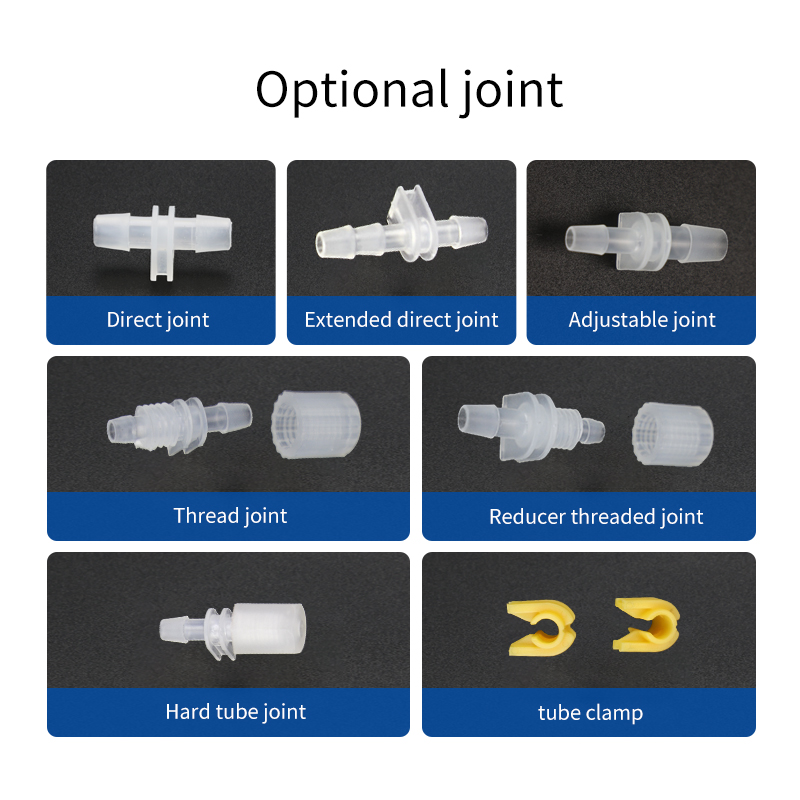

| Tube Connection Method | Standard: Direct joint Optional: Thread joint,Hard tube joint,Reducer threaded joint,Adjustable joint | |||
| Noise | ≤65dB | ≤60dB | ≤53dB | ≤60dB |
| (Testing environment noise≤40dB. The horizontal distance between the test product and the noise meter is 1 meter.） | ||||
| Function | Start/stop, cw/ccw rotation, up/down speed | Start/stop, cw/ccw rotation | ||
| Main Material | Pump cover: PC Roller: POM Base: PA Installation plate: 304 stainless steel | |||
Reference Flow Rate
| Reference Flow Rate（unit: ml/min） | |||||||||
| Product Model | 204KA/ZL | 204KA/ZLX | 204KA/BT | 204KA/TB | |||||
| Motor Speed/Tube Model | 160r | 150r | 300r | 300r | 5r | 10r | 30r | 60r | 100r |
| 16#(ID3.2*OD6.4) | 130 | 110 | 230 | 245 | 4 | 8 | 25 | 48 | 80 |
| 25#(ID4.8*OD8) | 255 | 220 | 460 | 480 | 8 | 15 | 50 | 90 | 155 |
| 17#(ID6.4*OD9.6) | 350 | 300 | 680 | 680 | 11 | 21 | 70 | 130 | 225 |
| Flow Description | The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water. | ||||||||
Typical Applications
Inkjet printer, disinfection machine, printing machine, water quality sampling, medical equipment, cooking machine, coffee machine, beverage machine, bubble tea machine, ice cream machine, hemoglobin analyzer, feces and urine analyzer, COD, CEMS, hypochlorous acid Generators, dairy washing machines, coin-operated washing machines, dishwashers, bottle washers

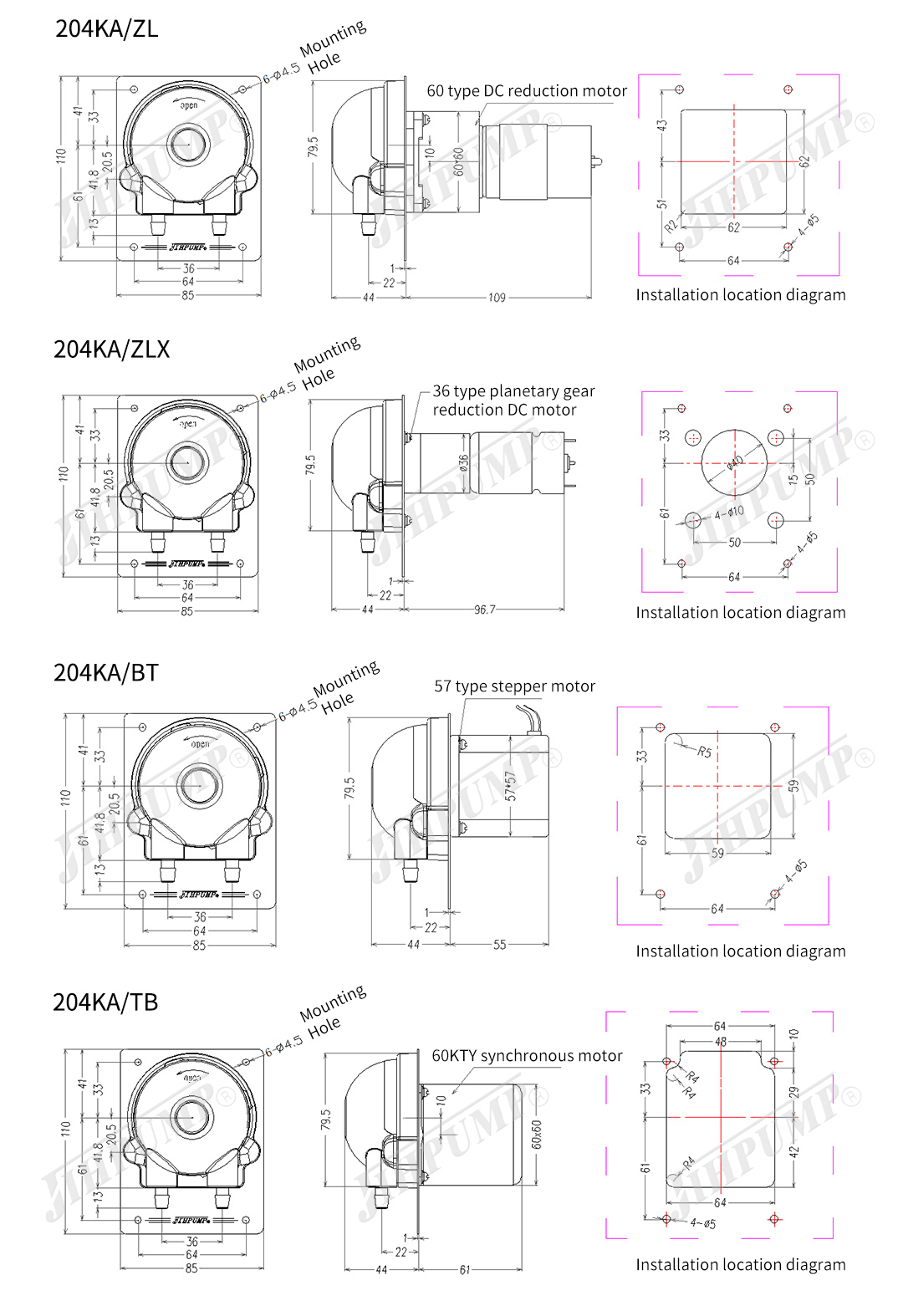

Overall Dimension
