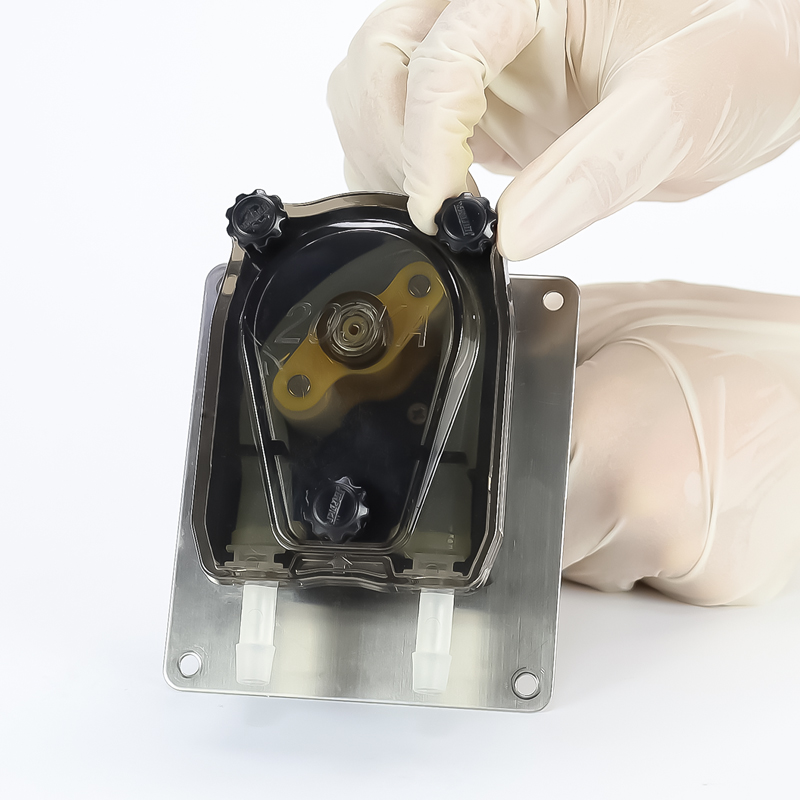

203KA Quick Mounting Panel OEM Peristaltic Pumps
- Models: 203KA
- Maximum channel quantity: 1
- Reference flow rate: ≤895ml/min
■ A simple and smooth quick-installation peristaltic pump
■ Can be installed with 15# and 24# peristaltic pump tubes
■ This peristaltic pump (constant flow pump) can be adapted to a variety of drive motors such as DC, DC planet, and stepper.
■ The pump body is equipped with a mounting plate and can be directly installed on the equipment.
203KA Quick Mounting Panel OEM Peristaltic Pump is a simple yet highly efficient fluid transfer device that offers exceptional ease of use with its sleek design and quick installation features. It supports 15# and 24# peristaltic pump tubes and is compatible with various drive motors, including DC, DC planetary, and stepper motors, making it adaptable to a variety of applications. Equipped with a mounting plate, it can be easily secured to equipment, improving installation flexibility and convenience.
Product Configuration
Product Parameters
| Product Parameters | |||
| Product Model | 203KA/ZL | 203KA/ZLX | 203KA/BT |
| Motor Type | DC gear motor | DC planetary gear motor | Stepper motor |
| Voltage | DC12V/24V | DC 24V,2A | |
| Power | 12W～20W | 5～15W(Silicone tube) 8W ~ 30W(inlet tube) | 24W(5756 motor) 42W(5776 motor) |
| Weight | 808g | 552g | 837g (5756 motor) /1156g (5776 motor) |
| Working Environment | Temperature 0~60℃, relative humidity <85%RH | ||
| Outlet Pressure | ≤0.17MPa | ||

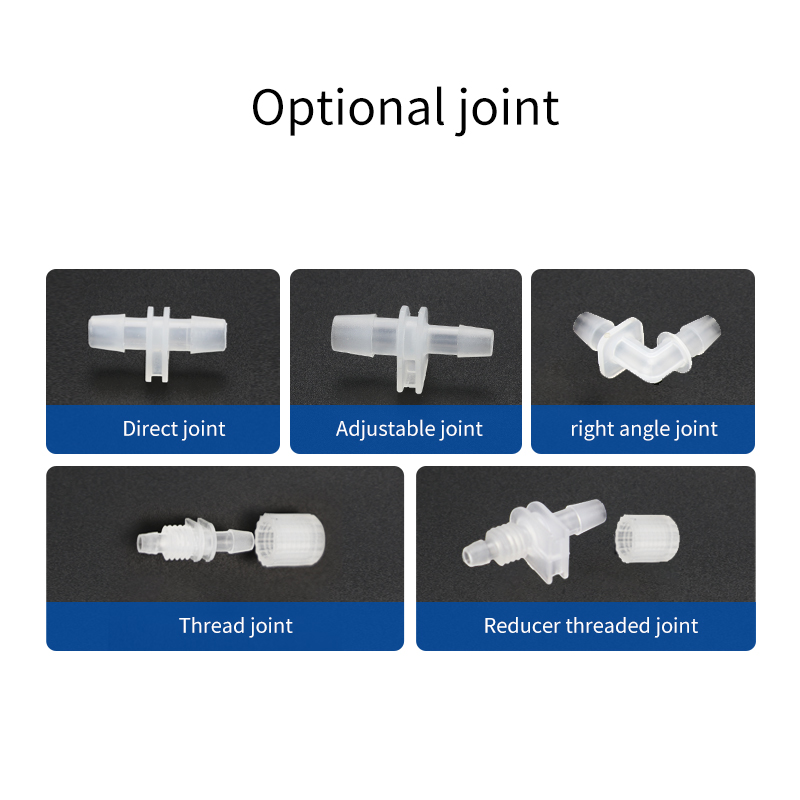

| Tube Connection Method | Standard: Direct joint Optional: Reducer threaded joint,Thread joint,Adjustable joint | ||
| Noise | ≤77dB | ≤65dB | ≤50dB |
| (Testing environment noise≤40dB. The horizontal distance between the test product and the noise meter is 1 meter.） | |||
| Function | Start/stop, cw/ccw rotation, up/down speed | ||

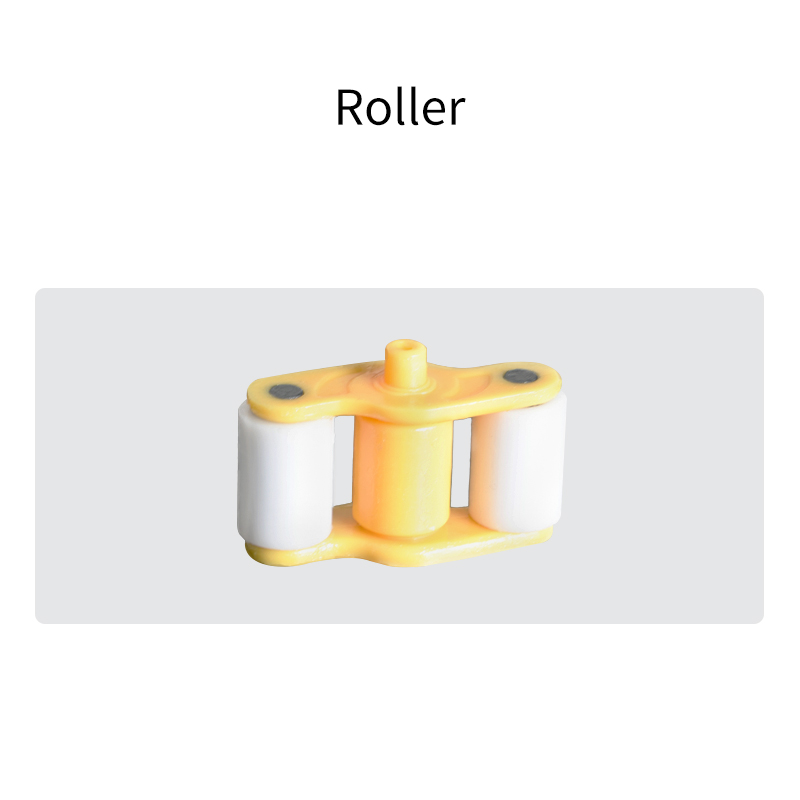

| Main Material | Pump Cover: PC Roller: POM Base: PA Mounting Plate: 304 Stainless Steel/Carbon Steel | ||
Reference Flow Rate
| Reference Flow Rate（unit: ml/min） | |||||
| Product Model | 203KA/ZL | 203KA/ZLX | 203KA/BT | ||
| Motor Speed/Tube Model | 135r | 166r | 150r | 300r | 300r |
| 15#(ID4.8*OD9.6) | 220 | 285 | 225 | 485 | 485 |
| 24#(ID6.4*OD11.2) | 380 | 470 | 400 | 870 | 895 |
| Flow Description | The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water. | ||||
Typical Applications
Ice cream machines, coffee machines, beverage machines, water quality sampling equipment, protein analyzers

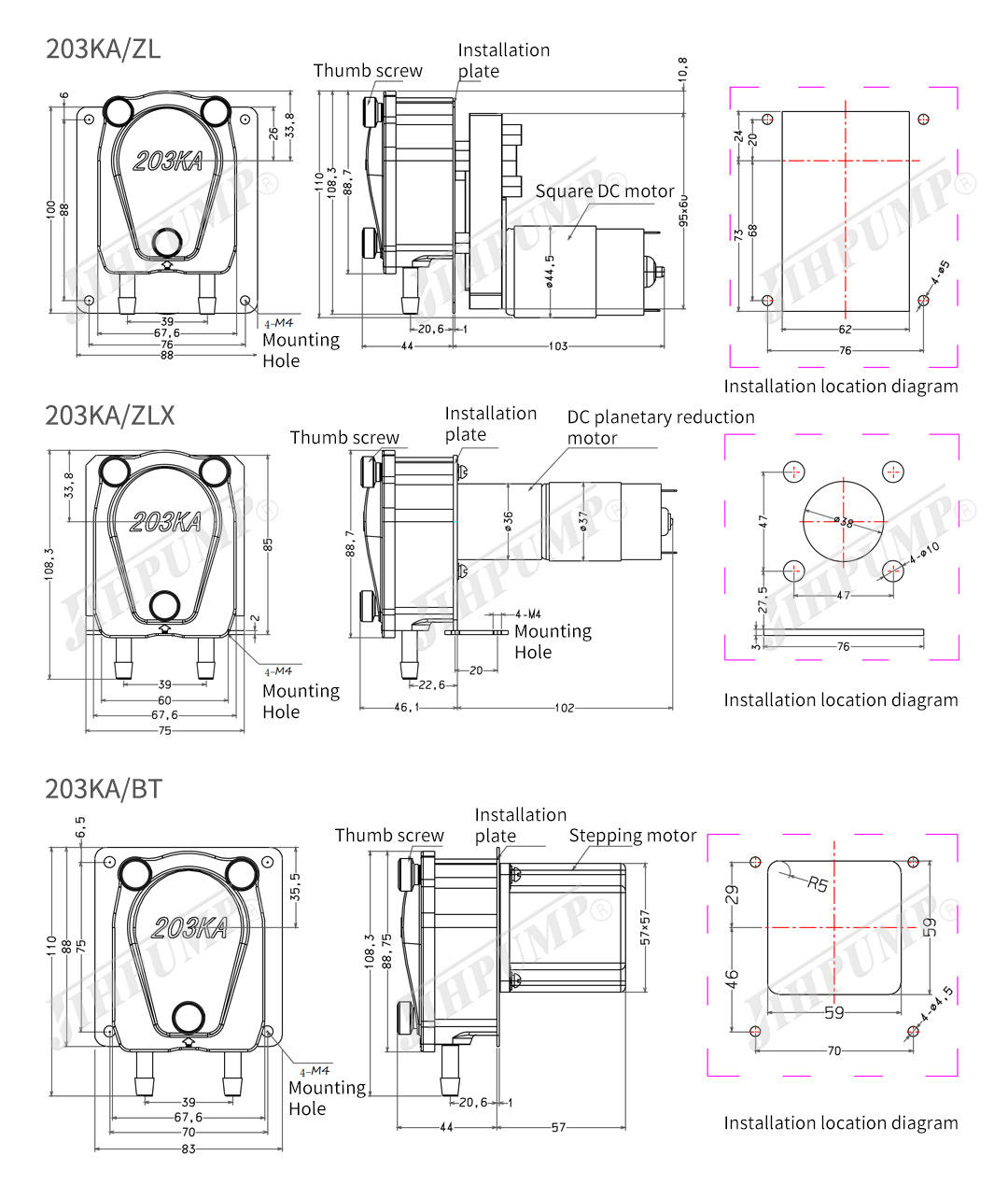

Overall Dimension
