293KC Quick Mounting Panel OEM Peristaltic Pumps
- Models: 293KC
- Maximum channel quantity: 1
- Reference flow rate: ≤270ml/min
■ Streamlined appearance, exquisite and compact
■ Tube directions can be adjusted according to customer system application
■ The pump cover is available in clear, blue and yellow color.
■ 3-roller design, suitable for low pulse dose
■ High speed micro motor, more suitable for interval operation
■ The pump base is designed with strip-shaped mounting holes, which can be directly fixed to user’s equipment.
293KC Quick Mounting Panel OEM peristaltic pump features a sleek and compact design that seamlessly integrates into various applications. Users can adjust the tubing direction based on system requirements, and the pump cover offers transparent, blue, and yellow options to match different aesthetic preferences.
Its three-roller design is suitable for low-pulse dosing, and paired with a high-speed micro motor, it is particularly well-suited for intermittent operations. This peristaltic pump is available in both 12V and 24V versions to cater to different power supply needs. The pump base features a bar-shaped mounting hole design, allowing for easy attachment to user equipment, enhancing installation convenience.
Product Configuration
Product Parameters
| Product Parameters | |
| Product Model | 293KC |
| Motor Type | DC gear motor |
| Voltage | DC12V/24V，1A |
| Power | ≤15W |
| Work Environment | Temperature 0 ~ 60℃, relative humidity＜85%RH |
| Weight | 145g |
| Outlet Pressure | ≤0.1MPa |
| Noise | ≤80dB（ The horizontal distance between the test product and the noise meter is 0.3 meter.） |
| Function | Start/stop, cw/ccw rotation, up/down speed |
| Main Materials | Pump cover: PC Roller: PA Wheel frame: POM |
Reference Flow Rate
| Reference Flow Rate(unit: ml/min) | |||||
| Motor Speed/Tube Type | Silicone tube（ID*OD*WALL unit: mm） | BPT tube | |||
| 1*3*1 | 2*4*1 | 3*5*1 | 4*6*1 | 3*5*1 | |
| 12V 600rpm | 23 | 81 | 151 | 225 | 150 |
| 24V 680rpm | 29 | 114 | 182 | 270 | 175 |
| Flow Description | 1.The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water. 2.Dc motor life is about 500-1000h, short time interval operation | ||||
Typical Applications
Sweepers, mops, floor washers, aromatherapy machines, portable CEMS, smart toilets, titration (hydroponics, coral), beauty equipment, hydroponics, car washers, aquariums, waste liquids, bead blasting machines

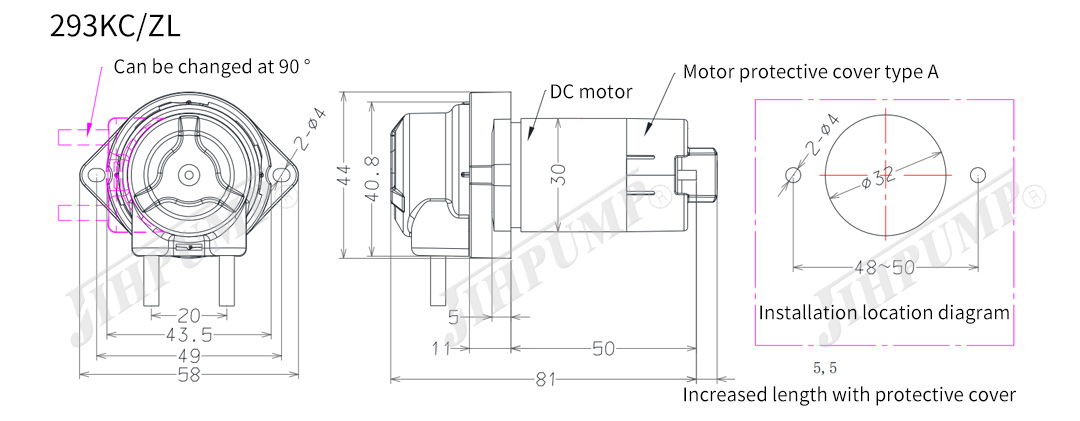

Overall Dimension
