304K Quick Mounting Panel OEM Peristaltic Pumps
- Models: 304K
- Maximum channel quantity: 1
- Reference flow rate: ≤1480ml/min

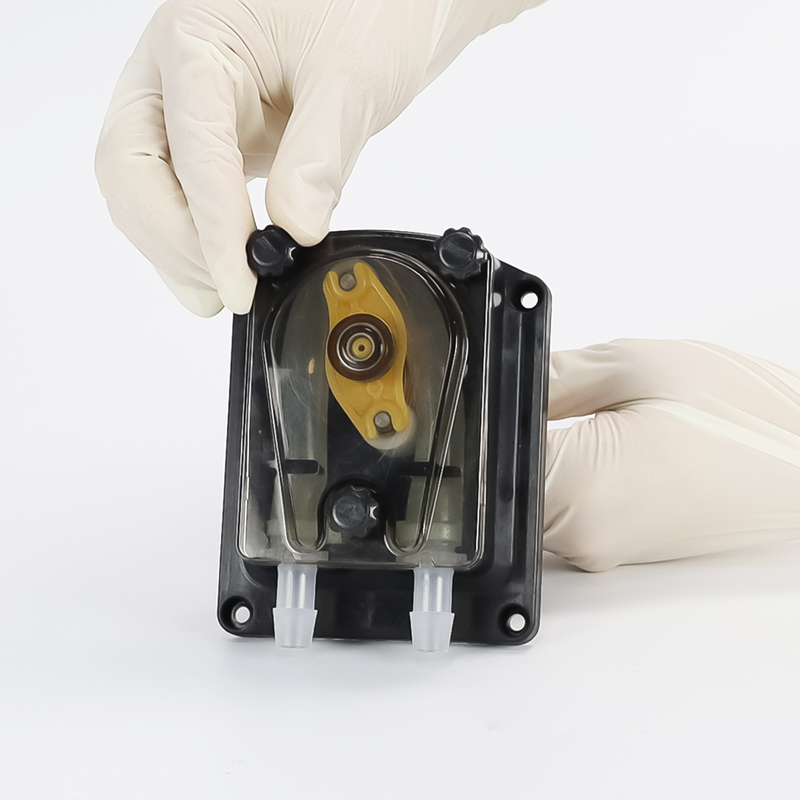

■ A simple and smooth quick-installation peristaltic pump
■ OEM constant flow peristaltic pump products with small volume and high flow rate
■ Can be installed with 24# and 35# peristaltic pump tubes
■ This peristaltic pump (constant flow pump) can be adapted to a variety of drive motors such as DC, DC planet, and stepper.
■ The pump body comes with a 4-hole mounting plate, no need to add a separate one
304K Quick Mounting Panel OEM Peristaltic Pump is a sleekly designed and efficient constant flow pump, compact in size yet capable of delivering high flow rates to meet various fluid transfer needs.
It supports 24# and 35# peristaltic pump tubes and is compatible with multiple drive motors, including DC, DC planetary, and stepper motors, making it suitable for a wide range of applications. This peristaltic pump is available in both 12V and 24V versions to accommodate different power supply requirements. The pump body comes with a built-in 4-hole mounting plate, eliminating the need for an additional mounting plate and greatly enhancing installation convenience and flexibility.

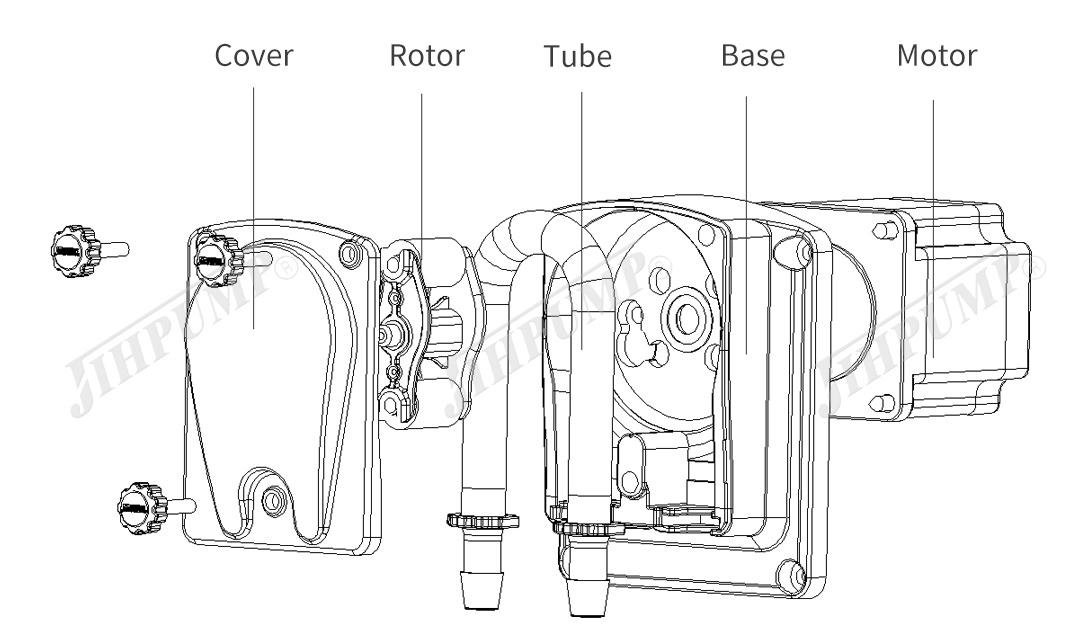

Product Configuration
Product Parameters
| Product Parameters | |||
| Product Model | 304K/ZL | 304K/ZLX | 304K/BT |

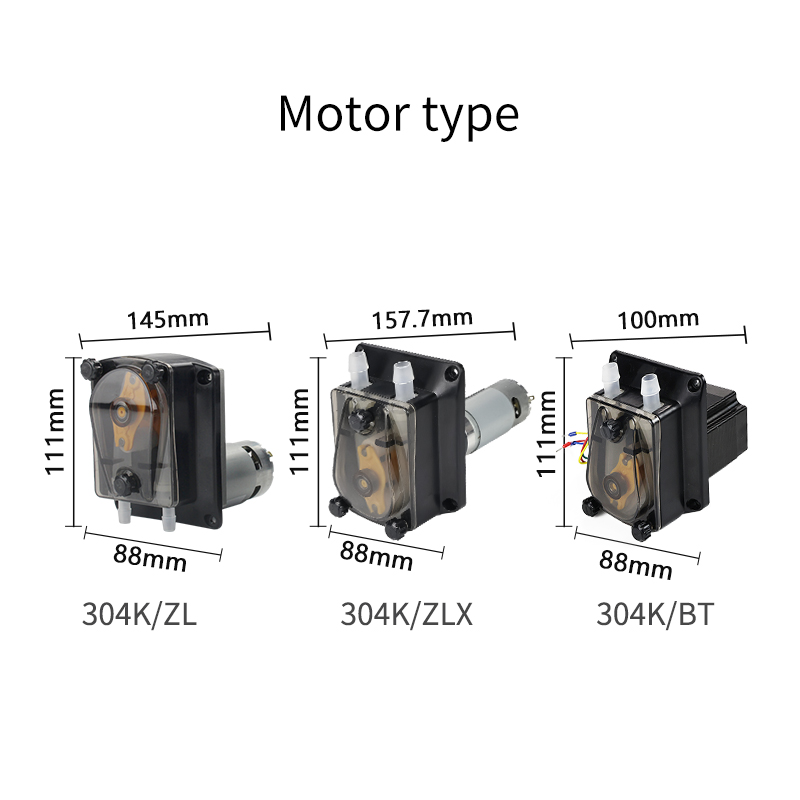

| Motor type | DC gear motor | DC planetary gear motor | Stepper motor |
| Voltage | DC12V/24V | DC24V | |
| Power | ≤24W | ≤36W | 30W (5756 motor) /45W (5776 motor) |
| Weight | 850g | 615g | 879g (5756 motor) /1198g (5776 motor) |
| Working Environment | Temperature 0 (no icing) ~ 60℃, relative humidity≤85%RH | ||
| Outlet Pressure | ≤0.17MPa | ||

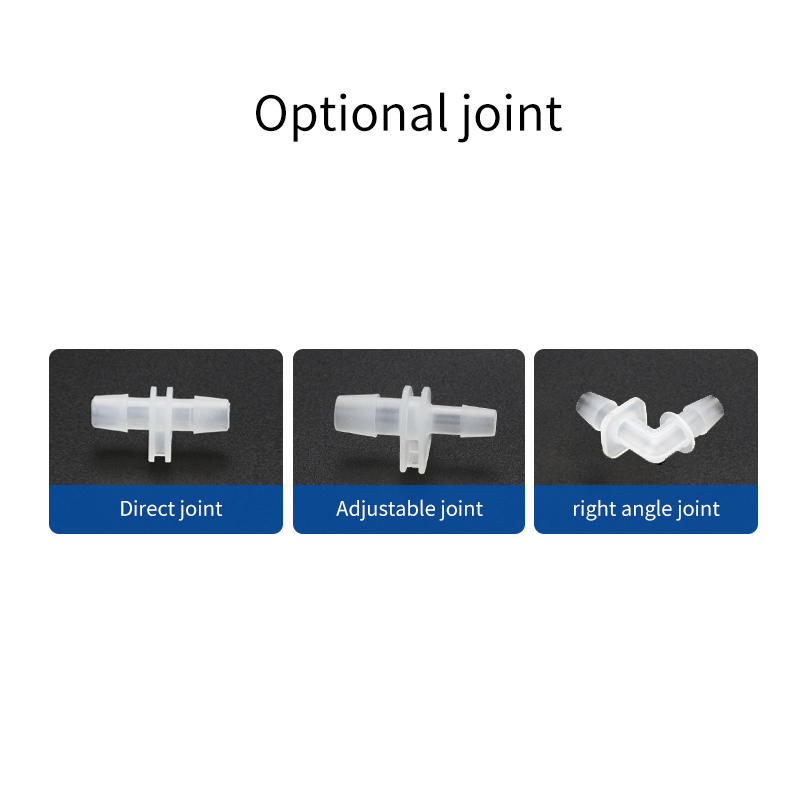

| Tube Connection Method | Standard: Direct joint Optional: Right angle joint,Adjustable joint | ||
| Noise | ≤80dB | ≤75dB | ≤60dB |
| (Testing environment noise≤40dB. The horizontal distance between the test product and the noise meter is 1 meter.） | |||
| Function | Start/stop, cw/ccw rotation, up/down speed | ||

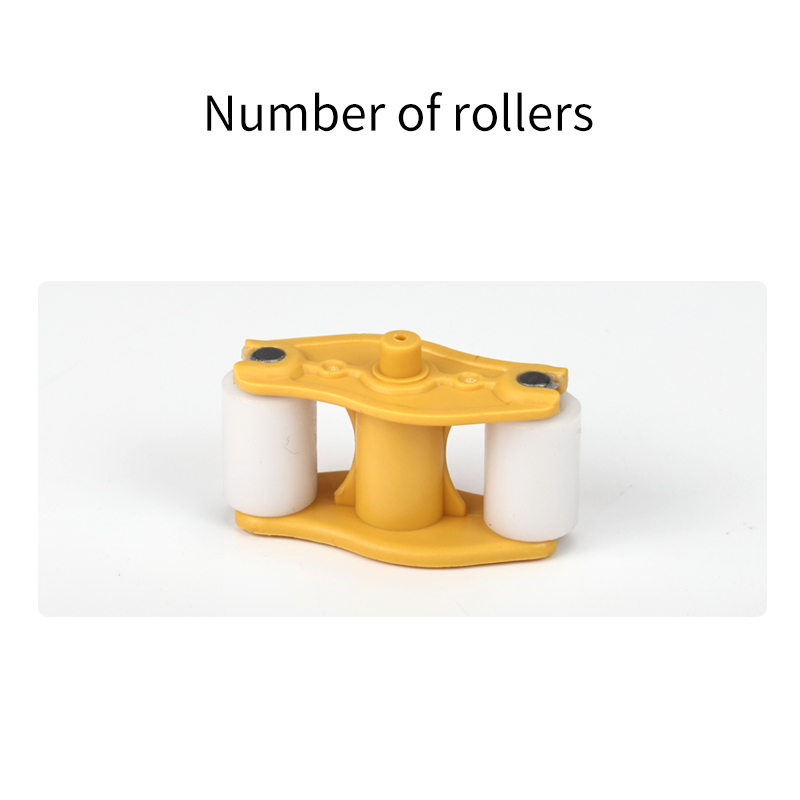

| Main Material | Pump cover: PC Roller: POM Base: PA | ||
Reference Flow Rate
| Reference Flow Rate（unit: ml/min） | |||||
| Product Model | 304K/ZL | 304K/ZLX | 304K/BT | ||
| Motor Speed/Tube Model | 135r | 166r | 150r | 300r | 300r |
| 24#(ID6.4*OD11.2) | 450 | 505 | 430 | 975 | 1000 |
| 35#(ID7.9*OD12.7) | 640 | 750 | 605 | 1405 | 1480 |
| Flow Description | The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water. | ||||
Typical Applications
Ice cream machines, coffee machines, beverage machines, water quality sampling equipment, protein analyzers, automatic nickel adding machines, dairy product cleaning machines, soup adding machines, bubble tea machines

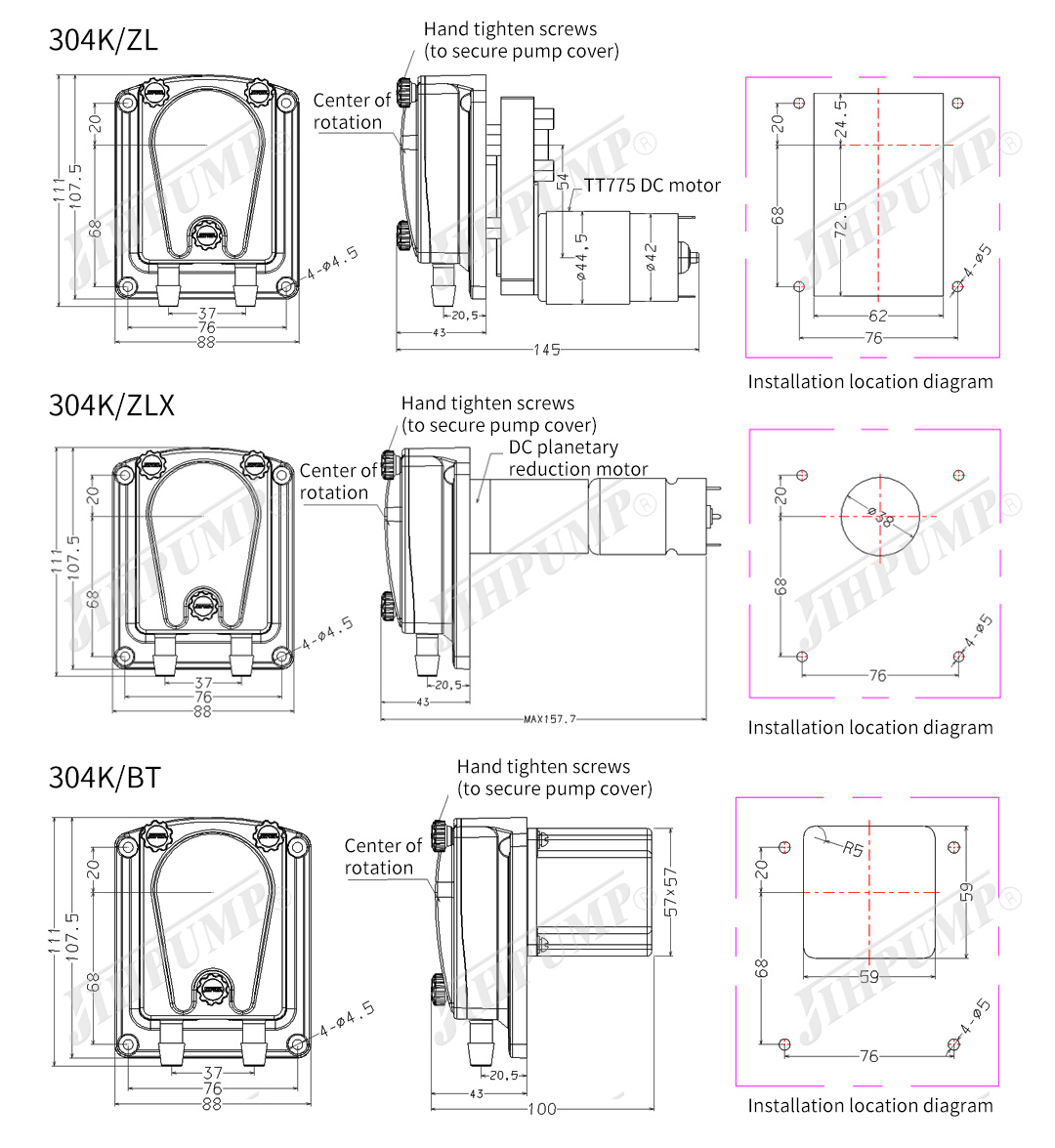

Overall Dimension
