How JIHPump 353K Peristaltic Pump Helps in Laundry Dispensers
In today’s fast-paced life, demand for convenient and efficient laundry services continues to grow. As an important facility meeting this demand, commercial laundries face the challenge of constantly improving service quality and efficiency. The emergence of laundry dispensers offers a demand-driven, innovative solution for laundry operations.
As consumers demand higher cleaning quality, laundries must not only process various types of fabrics but also ensure precise dosing of detergents to achieve optimal washing results. Meanwhile, rising labor costs and pressure for greater operational efficiency are pushing laundries toward more intelligent equipment. With accurate dosing, high efficiency, and automated operation, laundry dispensers have become the preferred choice for many laundries.
In the efficient operation system of modern laundries, precise detergent dispensing is undoubtedly the core to ensuring washing quality. As a unique fluid delivery device, the peristaltic pump has demonstrated outstanding performance and value in the field of laundry dispensers. It features accurate flow control for precise dosing of detergents for different fabrics; reliable operation ensures stable and continuous laundry performance; and excellent compatibility with various detergents meets diverse laundry needs. For these reasons, peristaltic pumps have become an important choice for equipment upgrading and optimization, solving many operational challenges and helping laundries stand out in competitive markets.
The laundry dispenser developed by the customer adopts the JIHPUMP Model 353K peristaltic pump. This pump ensures a stable and efficient supply of detergents and various laundry additives, improving both dosing stability and overall washing quality.
JIHPump 353K Peristaltic Pump Features
- Large-bore and thick-wall tubing design
- High flow rate and high efficiency
- High pressure and strong suction

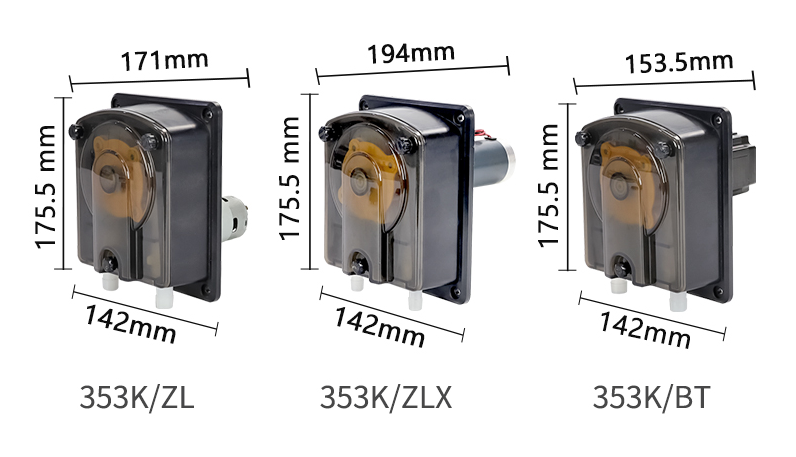

- 3 motor options available
- 2 tubing sizes available
- Tool-free tubing installation and replacement
- Wide application range
Flow Rate Range
By selecting different motor types and tubing inner diameters, the flow rate of the JIHPUMP 353K peristaltic pump can reach 0–7270 mL/min.
Product Parameters
| Product Model | 353K/ZL | 353K/ZLX | 353K/BT |
| Motor type | DC gear motor | DC planetary gear motor | Stepper motor |
| Voltage | DC 12V,4A/24V，2A | DC24V，4A | DC24V，4A or DC36V，3.3A |
| Power | ≤48W | ≤72W | ≤54W |
| Weight | 1282g | 1313g | 1825g |
| Working Environment | Temperature (no icing) 0 ~ 60℃, relative humidity < 85%RH | ||
| Outlet Pressure | ≤0.17MPa | ||
| Tube Connection Method | Standard: Direct joint Optional: Thread joint | ||
| Installation Method | Equipped with mounting plate | ||
| Noise | ≤67dB | ≤72dB | ≤61dB |
| (Testing environment noise≤40dB. The horizontal distance between the test product and the noise meter is 1 meter.） | |||
| Function | Start/stop, cw/ccw rotation, up/down speed | ||
| Main Material | Pump cover: PC Roller: POM Base: PA | ||
Product Configuration
Pump Head Cover: Translucent cover for easy visual monitoring.
Pump Tubing: Two sizes of peristaltic pump silicone tubing available: 73# (ID9.6 × OD16.2 mm), 82# (ID12.7 × OD19.3 mm)
Roller Assembly: 4-roller structure for smoother delivery and low pulsation. Rollers are made of imported wear-resistant self-lubricating bar stock, machined with high-precision CNC lathes for high accuracy and extended service life.
Motor: Three options: DC motor, DC planetary gear motor, and stepper motor.
- DC motor and DC planetary gear motor: suitable for low-to-moderate precision requirements and short-term intermittent operation.
- Stepper motor: supports high-precision dosing and long-time continuous operation.
With its excellent performance and wide applicability, the JIHPUMP 353K peristaltic pump provides a stable and efficient solution for laundry dispensers.
In the future, with continuous technological advancement and evolving market demand, JIHPUMP peristaltic pumps will achieve broader adoption in many applications within the washing and cleaning industry, delivering greater value for industrial production.
