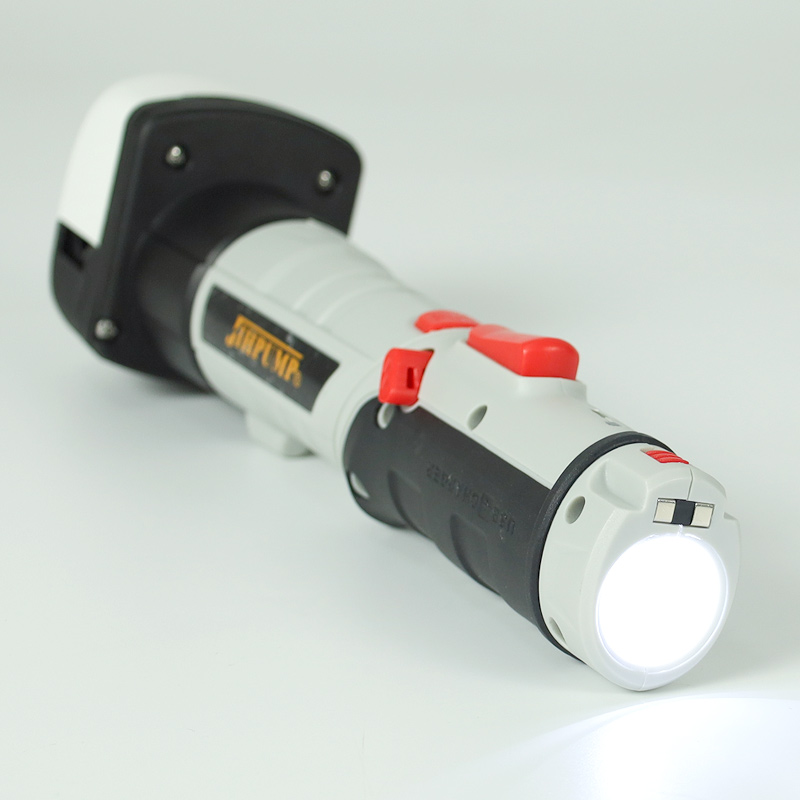

SC-Ⅲ Handheld Sampling Pump
- Models: SC-Ⅲ
- Maximum channel quantity: 1
- Reference flow rate: ≤295ml/min
■ Compact size, designed as a hand-operated pump, easy to carry around
■ Rechargeable lithium-ion battery, no external power supply required
■ The rotation direction of the pump head can be adjusted and the flow rate can be controlled in real time
SC-Ⅲ handheld sampling pump is a compact, hand-operated device designed for efficient mobile use. Its lightweight design makes it extremely easy to carry, making it suitable for various field operations. This pump is equipped with a rechargeable lithium-ion battery, eliminating the need for an external power source, allowing you to sample anywhere, including the lab, field, or industrial sites.
The adjustable rotation direction of the pump head, combined with real-time flow control, enables flexible adjustment to meet specific needs, improving sampling accuracy and efficiency. Whether you’re a researcher or an industrial user, the SC-Ⅲ handheld sampling pump is your ideal sampling companion, helping you complete various fluid collection tasks with ease.

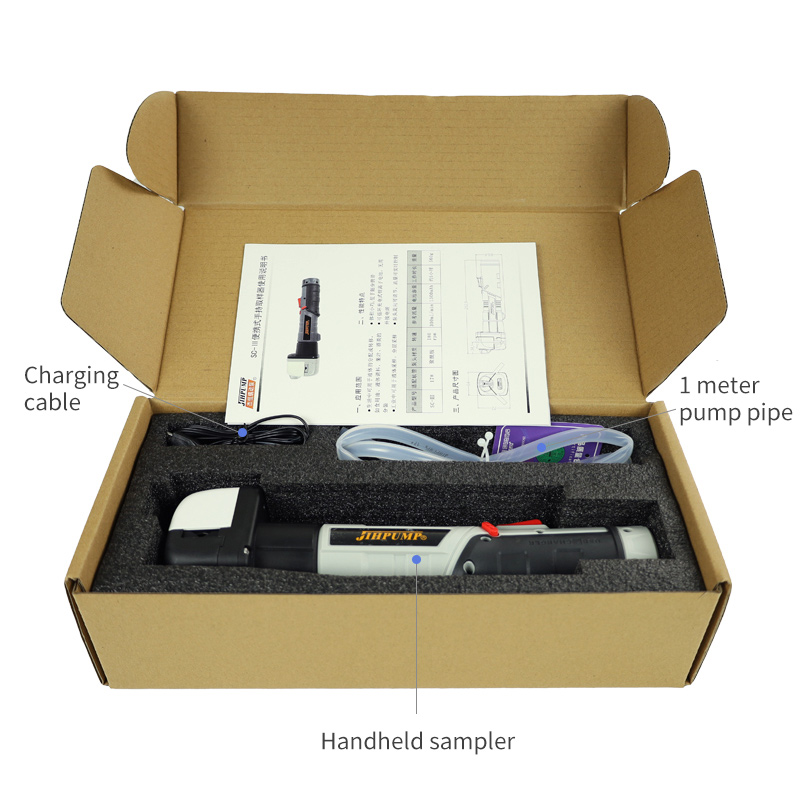

Product Configuration
Product Parameters
| Product Parameters | |
| Product Name | Handheld sampler |
| Product Model | SC-Ⅲ |
| Speed Range | 0～180rpm |
| Battery Voltage | DC 3.6V，Lithium battery (USB charging) |
| Battery Capacity | 1300mAh |
| Charger Voltage | ≤5V |
| Charging Time | Charge 1 hour, can be used for about 1 hour |
| Driving Mode | DC motor |
| Function | Start/stop, cw/ccw rotation,lighting lamp |
| Working Environment | Temperature (no icing) 0 ~ 60℃, relative humidity < 85%RH |
| Weight | 560g |
| Outlet Pressure | ≤0.17MPa |
| Noise | ≤62dB （Testing environment noise≤40dB. The horizontal distance between the test product and the noise meter is 1 meter.） |
| Drive Layout | Linear, L-shaped |
Reference Flow Rate
| Reference Flow Rate(unit:ml/min) | ||
| Motor Speed/Tube Type | Silicone Tube | |
| 17#(ID6.4*OD9.6) | ||
| Suction lift 1m | 180rpm | 295 |
| Suction lift 3m | 280 | |
| Suction lift 4m | 190 | |
Typical Applications
It can be used for the distribution or transfer of liquids in daily life, such as edible oils, liquid seasonings, juices, and alcohol; it can be used for liquid sampling and stratified sampling in industry.

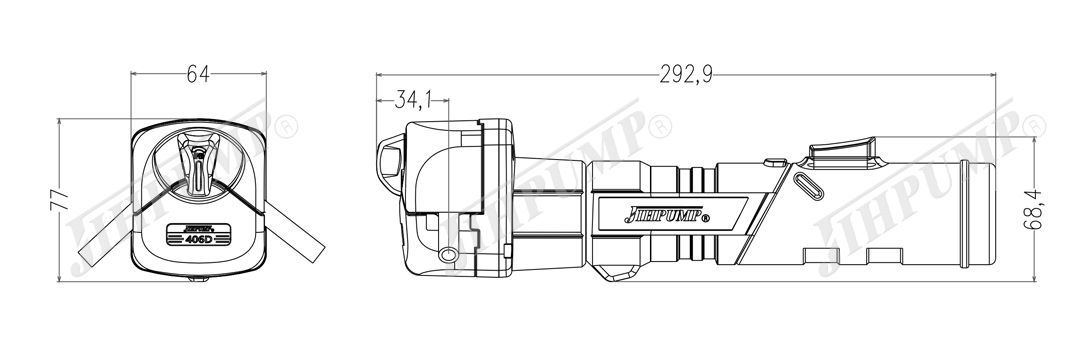

Overall Dimension
