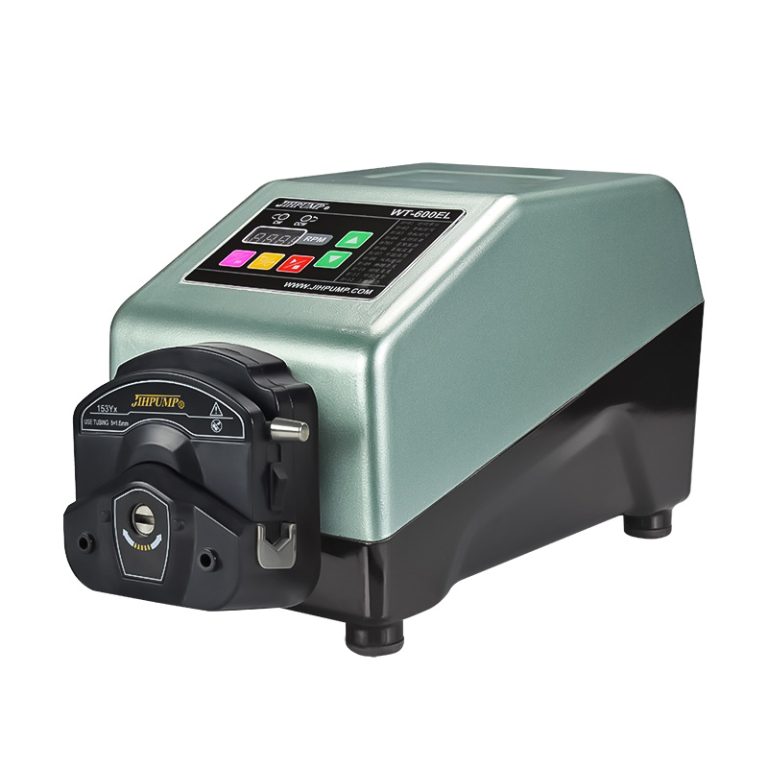

BT-600EL High IP Rating Series

Models: BT-600EL
Maximum channel quantity: 6
Reference flow rate: ≤3365ml/min

■ Aluminum alloy die-casting fully enclosed chassis, with a protection level of IP54 (preventing dust and water splashing), suitable for high dust, high humidity, etc.Multiple harsh environmental usage conditions;
■ Four-digit LED display shows real-time speed, featuring a resolution of 0.1 rpm.
■ The stepper motor is driven by 8 subdivisions, with high precision and small resonance;
■ The membrane key is used to change the speed, rotation direction, start and stop, and the speed and rotation direction can be adjusted during operation;
■ Equipped with three major functions: flow rate, timing, and filling;
■ Automatic recognition of foot switch, automatic and infrared sensing function for filling;
■ The pump can be controlled by external control methods such as 0~5V/0~10V/4~20mA/MODBUS to start, stop, reverse, and rotate speed;

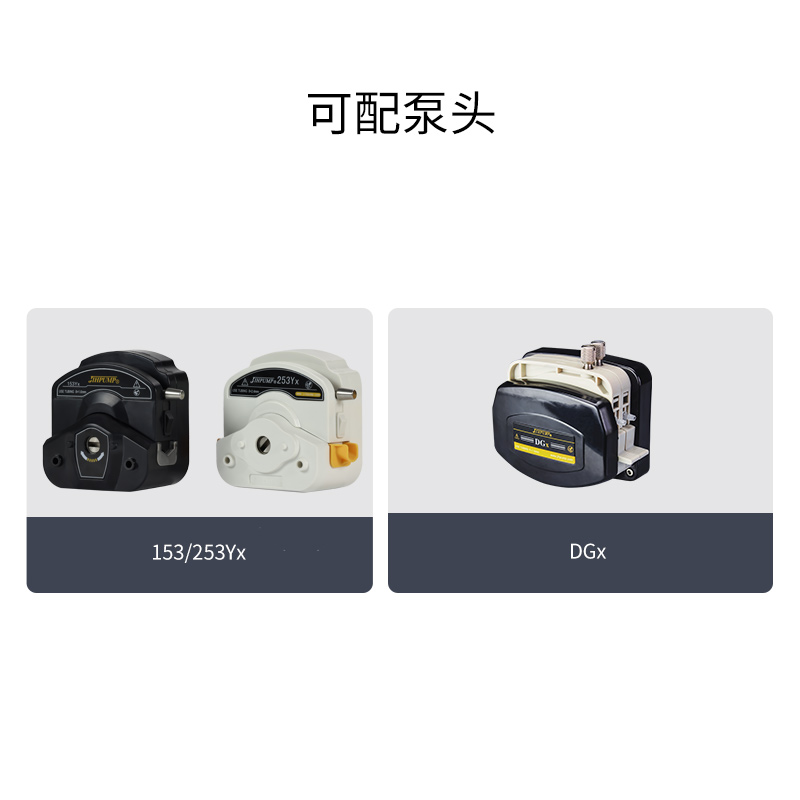

■ The product is compatible with 153Yx/253Yx/DGx peristaltic pump heads, with multiple flow rates to select.

Product Description
Product Video
Related Downloads

BT-600EL High IP Rating Series is a high-performance pump designed for extreme environments, featuring a fully aluminum alloy die-cast housing with an IP54 protection rating, effectively resisting dust and water splashes to ensure stable operation in high dust and humidity conditions. This pump has a four-digit LED display that shows real-time speed with a resolution of up to 0.1 rpm.

Its high-precision stepper motor operates with 8 subdivision drives for smooth operation and low noise. The user-friendly interface makes it easy to adjust speed and direction with membrane buttons. Additionally, the BT-600EL offers three main functions: flow control, timing, and filling, and supports footswitch and infrared sensing for automated filling.

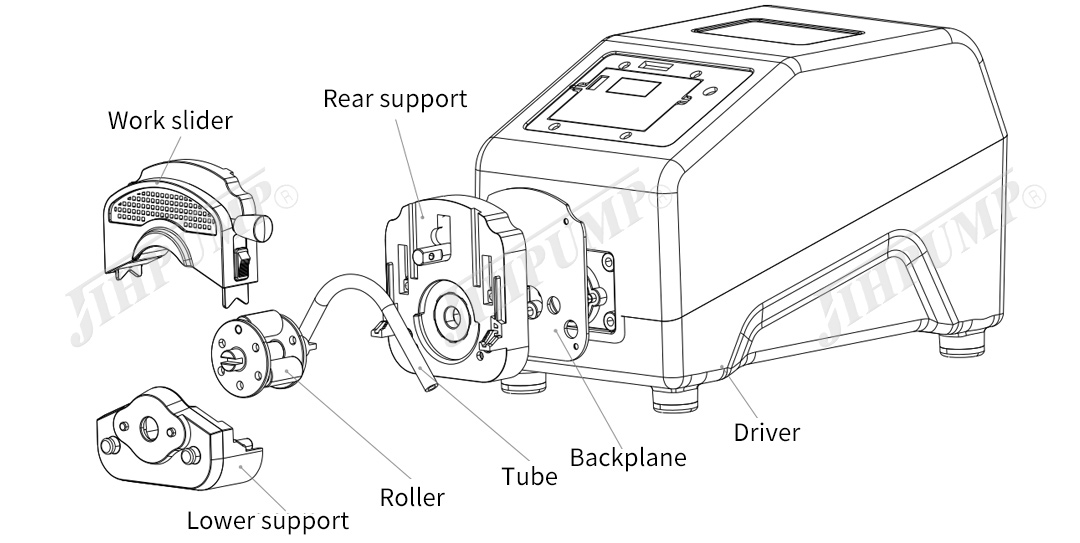

Product Configuration

Product Parameters

Product Parameters
Product Name	BT-EL Series
Product Model	600EL
Speed Range	0.1～600r
Speed Resolution	0.1rpm
Outlet Pressure	≤0.17MPa
Major Function	Start/stop, cw/ccw rotation, up/down speed，Program Settings
External Control Mode	Foot switch、0～5V、0～10V、4～20mA、 ModBus communication protocol
Display	Digital display
Voltage	AC 100～240V，50/60Hz，2.0A
Power	≤54W
Work Environment	Temperature 0 ~ 60 ℃, relative humidity ＜ 85%RH
Motor Type	57 type stepper motor drive
Motor Life	6000~20000h

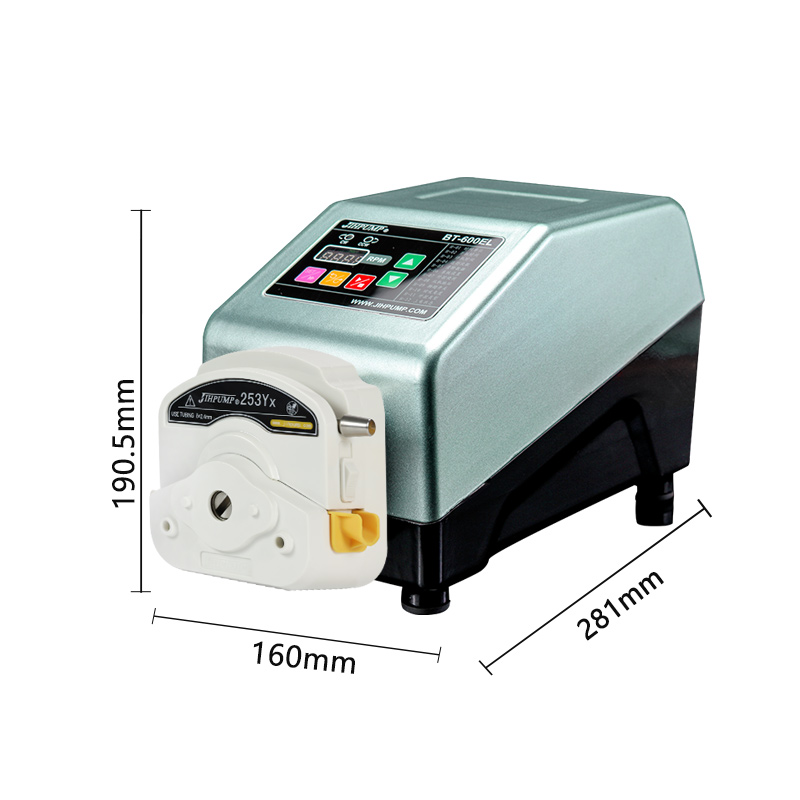

Drive Size	L282W160H191mm
IP Rating	IP54

Reference Flow Rate

Reference Flow Rate（unit: ml/min）
Pump Head Model	153Yx					253Yx
Motor Speed/Tube Type	14# (ID1.6*OD4.8)	16# (ID4.8*OD8)	25# (ID6.4*OD9.6)	17# (ID6.4*OD9.6)	18# (ID7.9*OD11.1)	15# (ID4.8*OD9.6)	24# (ID6.4*OD11.2)	35# (ID7.9*OD12.7)	36# (ID9.6*OD14.4)
600rpm	145	515	1080	1770	2135	1085	1695	2640	3365
Number of pump heads in series	≤6	≤5	≤3		≤2	≤2			1
Pump Head Model	DGx			–
Motor Speed/Tube Type	14# (ID1.6*OD4.8)	16# (ID4.8*OD8)	25# (ID6.4*OD9.6)	–
600rpm	145	500	940	–
Number of adaptive channels	≤2	1		–
Flow Description	1、The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water. 2、The total flow rate of multiple series connections ≈ the flow rate of a single pump head * the number of series pump heads; 3、Total multi-channel traffic ≈ single channel traffic * number of channels.
