BT-100EA LED Display Series
- Models: BT-100EA
- Maximum channel quantity: 12
- Reference flow rate: ≤500ml/min
■ Four digital tube LED display instant speed, display resolution 0.1rpm;
■ The stepper motor is driven by 8 subdivisions, with high precision and small resonance;
■ Using film buttons to change the speed, rotation, start and stop, you can adjust the speed and rotation during operation;
■ With timing counting function, you can freely set the running, stopping time and running times, easy to assemble;
■ Can be 0 ~ 5V/0 ~ 10V/4 ~ 20mA/MODBUS and other external control mode to control the pump start and stop, positive and negative rotation, speed;
■ With power failure memory function, can automatically save the operating parameters of the last power failure;
■ The shell uses flame retardant material, no dead Angle design is easy to clean;
■ Suitable for various peristaltic pump heads such as 153Yx/253Yx/DG/DT, various flow rates can be selected.
BT-100EA LED Display Series is an exceptional peristaltic pump controller equipped with a high-resolution four-digit LED display, allowing real-time monitoring of instant speed (0.1 rpm). It features an 8-microstep driven stepper motor, ensuring high precision and low resonance operation. Users can easily adjust speed, rotation direction, and start/stop functions via an intuitive membrane keypad, making operation quick and convenient.
Moreover, it has a timing function that allows for customizable run and stop times, offering flexibility in operation. Supporting various external control methods (such as 0-5V, 4-20mA, and MODBUS), it meets diverse application needs. Its unique power-off memory function saves operating parameters, and the casing is made of flame-retardant material, making it easy to clean. Compatible with various peristaltic pump heads, it provides multiple flow options, making it an ideal partner for industrial fluid delivery.

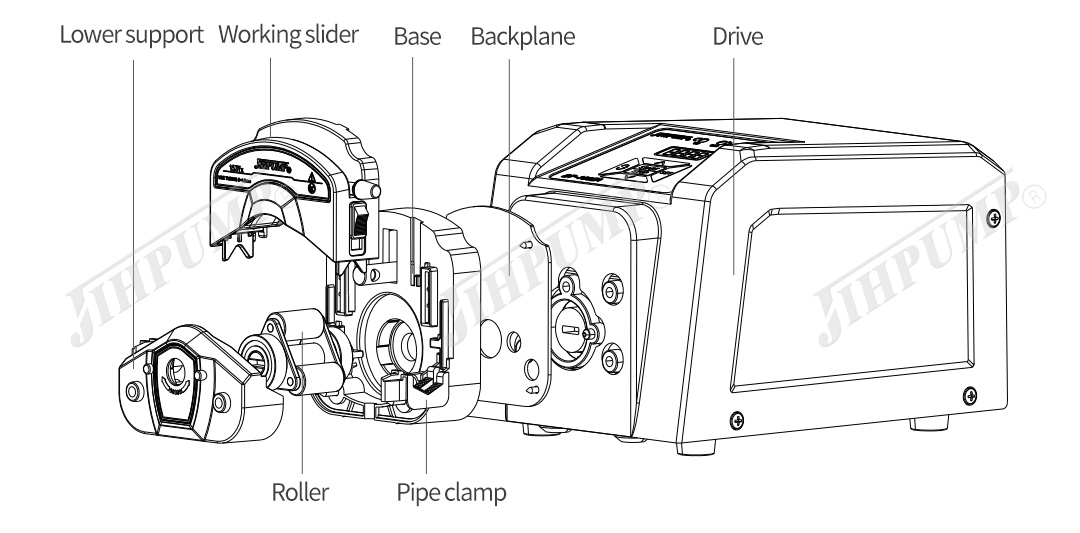

Product Configuration
Product Parameters
| Product Parameters | |
| Product Name | BT-EA Series |
| Product Model | 100EA |
| Speed Range | 0.1～100r |
| Speed Resolution | 0.1rpm |
| Outlet Pressure | ≤0.17MPa |
| Control Mode | Membrane button |
| Major Function | Manual control, automatic, appointment timing, filling, external control、Power on operation |
| External Control Mode | Foot switch、0～5V、0～10V、4～20mA、 ModBus communication protocol |
| Display | LED Digital code |
| Voltage | AC 100～240V，50/60Hz， 1.0A |
| Power | ≤48W |
| Work Environment | Temperature 0 ~ 60 ℃, relative humidity ＜ 85%RH |
| Motor Type | Stepper motor |
| Motor Life | 6000~20000h |
| Drive Size | L210*W150*H150mm |
| Drive Weight | 2.6KG |
| IP Rating | IP31 |
Reference Flow Rate
| Reference Flow Rate（unit: ml/min） | |||||||||
| Pump Head Model | 153Yx | 253Yx | |||||||
| Motor Speed/Tube Type | 14# (ID1.6*OD4.8) | 16# (ID4.8*OD8) | 25# (ID6.4*OD9.6) | 17# (ID6.4*OD9.6) | 18# (ID7.9*OD11.1) | 15# (ID4.8*OD9.6) | 24# (ID6.4*OD11.2) | 35# (ID7.9*OD12.7) | 36# (ID9.6*OD14.4) |
| 100rpm | 26 | 85 | 175 | 270 | 425 | 170 | 265 | 385 | 500 |
| Number of pump heads in series | ≤6 | ≤5 | ≤4 | ≤3 | ≤2 | ||||
| Pump Head Model | DG | DGx | – | ||||||
| Motor Speed/Tube Type | 1*1 (ID1*OD3) | 2*1 (ID2*OD4) | 3*1 (ID3*OD5) | 14# (ID1.6*OD4.8) | 16# (ID4.8*OD8) | 25# (ID6.4*OD9.6) | – | ||
| 100rpm | 6.5 | 18 | 30 | 26 | 85 | 155 | – | ||
| Number of adaptive channels | ≤12 | ≤8 | ≤4 | – | |||||
| Flow Description | 1、The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water. 2、The total flow rate of multiple series connections ≈ the flow rate of a single pump head * the number of series pump heads; 3、Total multi-channel traffic ≈ single channel traffic * number of channels. | ||||||||
Typical Applications
Analytical instruments, Lab, Industrial Process, Fine Chemicals, Food manufacturing process

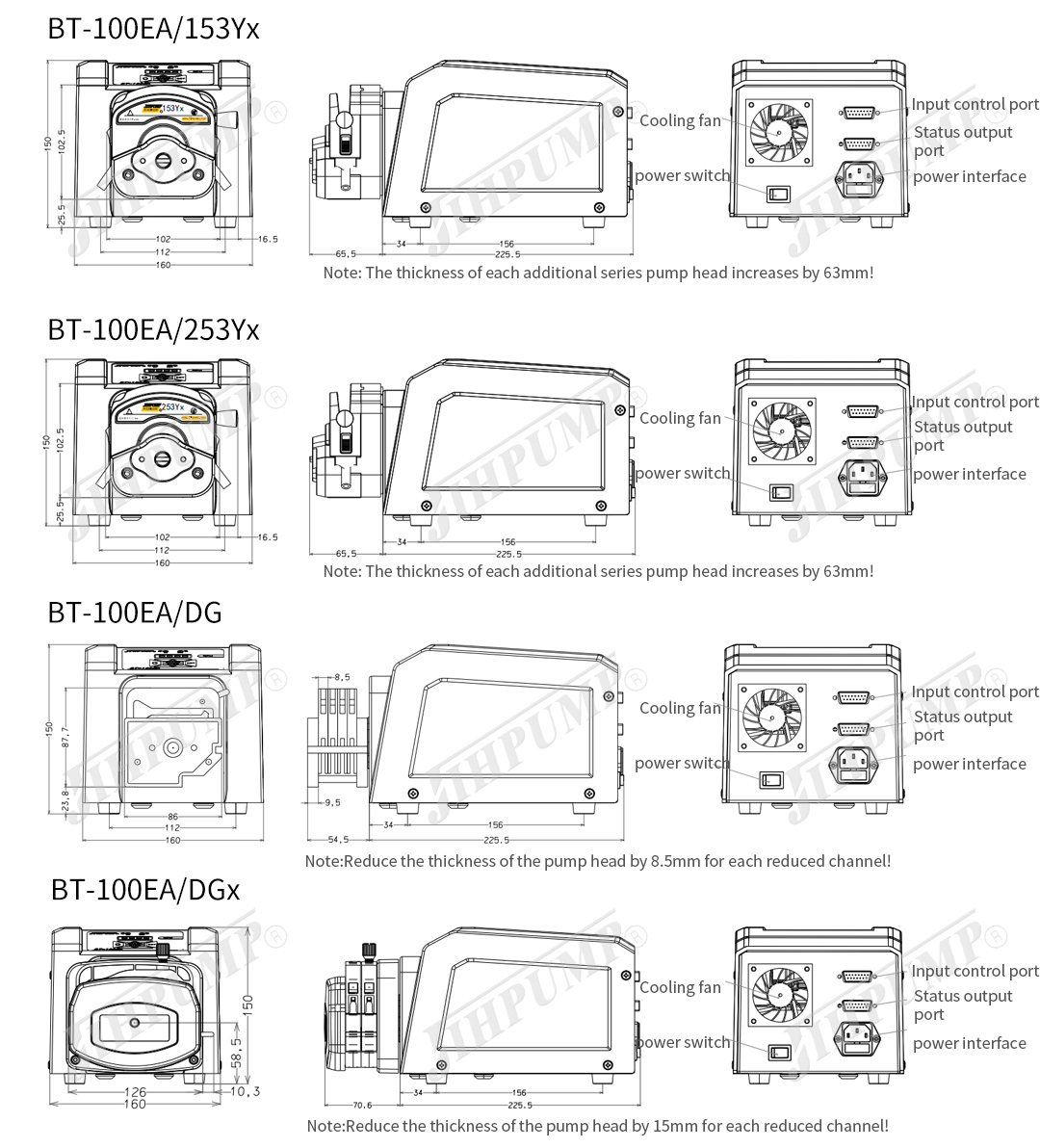

Overall Dimension
