BT-600EB LED Display Series

Models: BT-600EB
Maximum channel quantity: 12
Reference flow rate: ≤3365ml/min

■ OLED screen provides instant speed readings with a resolution of 0.1 rpm.
■ The stepper motor utilizes 8 subdivisions for precise movement and reduced resonance;
■ With film buttons, you can modify speed, direction, start/stop, and adjust both speed and rotation while the pump is running;
■ Equipped with a timing function, it allows you to easily set run time, stop time, and the number of cycles, making assembly simple.
■ Supports external control modes such as 0-5V, 0-10V, 4-20mA, and MODBUS for controlling the pump’s start/stop, forward/reverse rotation, and speed adjustment.
■ Equipped with a power failure memory function, it stores the last operational parameters before a power outage.
■ The shell is made from flame-retardant material with a seamless design, making it easy to clean;

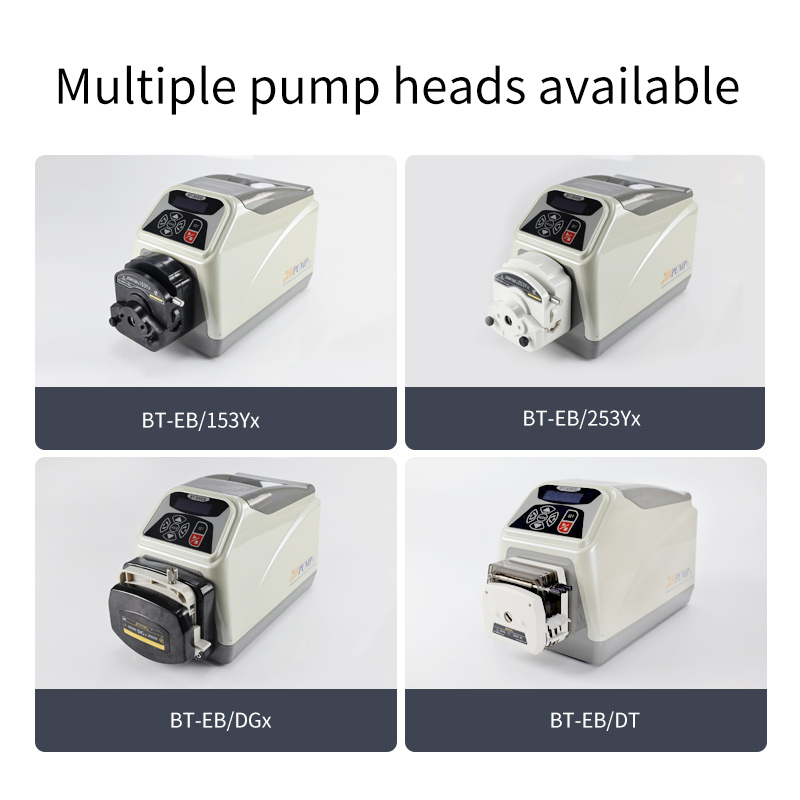

■ Compatible with multiple peristaltic pump heads like 153Yx, 253Yx, DG, and DT, offering a range of selectable flow rates.

Product Description
Product Video
Related Downloads

BT-600EB LED Display series is a versatile peristaltic pump controller with a high-resolution OLED display that provides real-time speed readings with an accuracy of up to 0.1 rpm. It operates using an 8-microstep-driven stepper motor for high precision and low noise. Users can easily adjust speed, rotation, and start/stop functions using a membrane keypad, which is compatible with various applications.

Its controller supports multiple modes, including timer, filling, preset flow, and real-time monitoring. With robust external control options (0-5V, 4-20mA, and MODBUS) and a power-off memory function for data continuity, it is designed for ease of use and compatibility with various pump heads such as 153Yx, 253Yx, DG/DGx, and DT, while also featuring a flame-retardant and easy-to-clean housing.

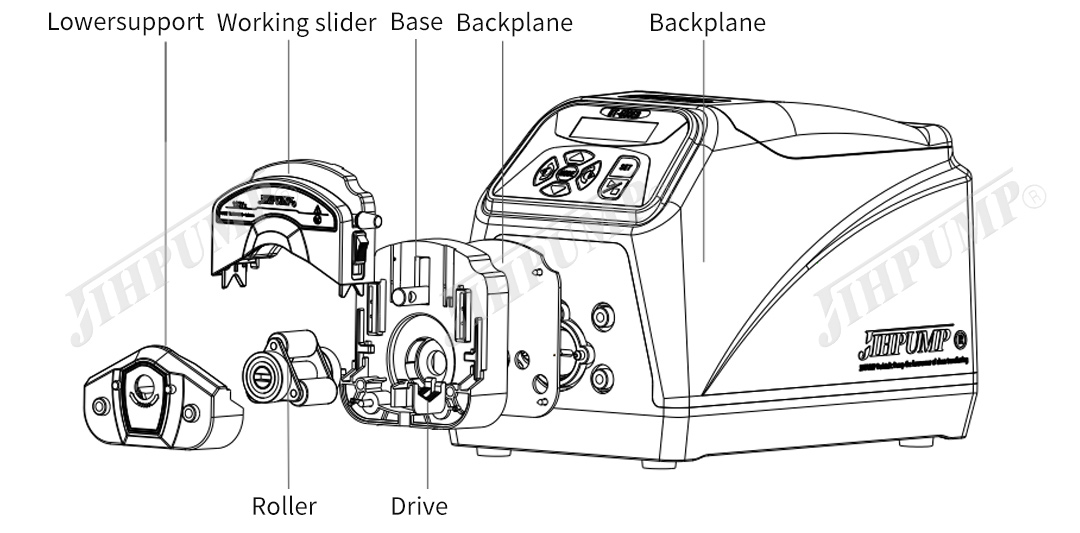

Product Configuration

Product Parameters

Product Parameters
Product Name	BT-EB series
Product Model	600EB
Speed Range	0.1～600r
Speed Resolution	0.1rpm
Outlet Pressure	≤0.17MPa
Control Mode	Touch buttons
Major Function	Timing mode, filling mode, Preset traffic, real-time traffic, external control
External Control Mode	0～5V、0～10V、4～20mA、 ModBus_rtu communication protocol
Display	OLED
Voltage	AC 100～240V，50/60Hz，2.0A
Power	≤54W
Work Environment	Temperature 0 ~ 60 ℃, relative humidity ＜ 85%RH
Motor Type	Stepper motor
Motor Life	6000~20000h

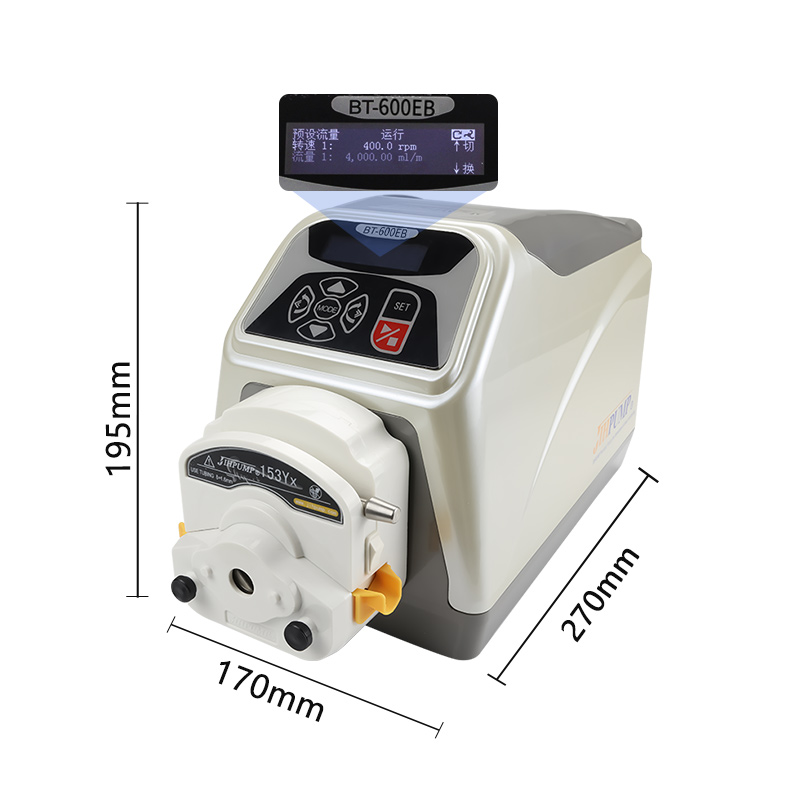

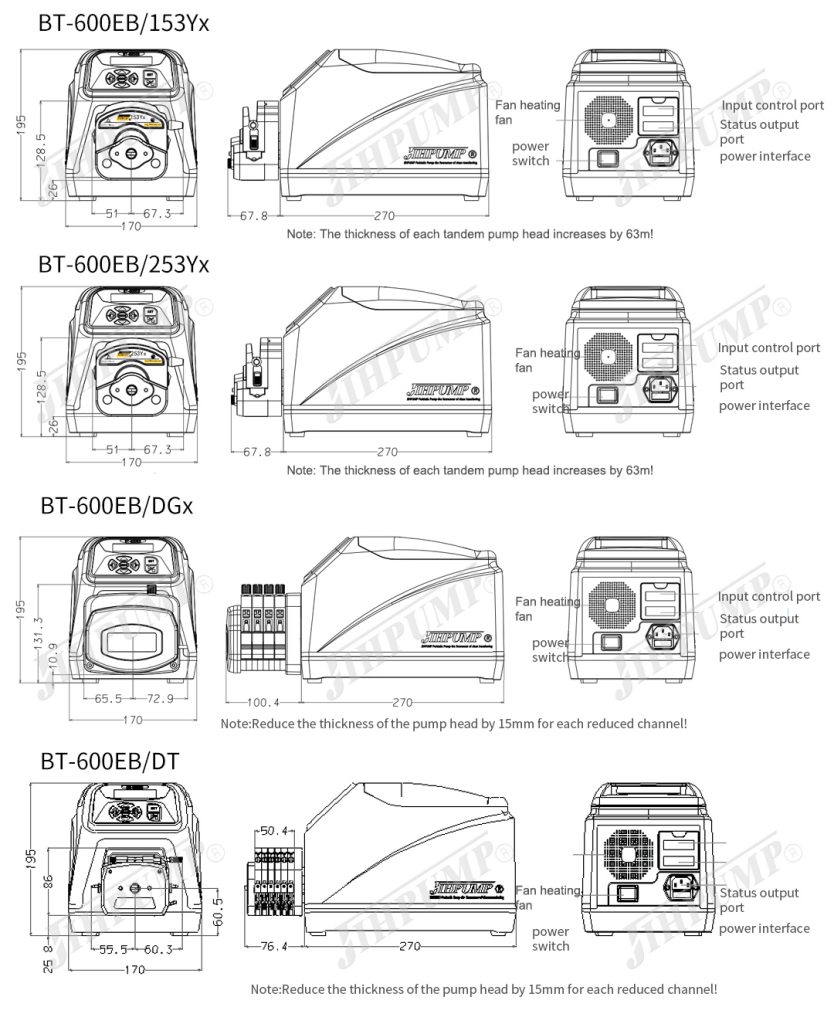

Drive Size	L270W170H195mm
Drive Weight	3.22KG
IP Rating	IP31

Reference Flow Rate

Reference Flow Rate（unit: ml/min）
Pump Head Model	153Yx					253Yx
Motor Speed/Tube Type	14#	16#	25#	17#	18#	15#	24#	35#	36#
Motor Speed/Tube Type	(ID1.6*OD4.8)	(ID4.8*OD8)	(ID6.4*OD9.6)	(ID6.4*OD9.6)	(ID7.9*OD11.1)	(ID4.8*OD9.6)	(ID6.4*OD11.2)	(ID7.9*OD12.7)	(ID9.6*OD14.4)
600rpm	145	515	1080	1770	2135	1085	1695	2640	3365
Number of pump heads in series	≤6	≤4	≤3		≤2	≤3
Pump Head Model	DGx			DT (Max 150rpm)			DG (Max 150rpm)
Motor Speed/Tube Type	14#	16#	25#	1*1	2*1	3*1	1*1	2*1	3*1
Motor Speed/Tube Type	(ID1.6*OD4.8)	(ID4.8*OD8)	(ID6.4*OD9.6)	(ID1*OD3)	(ID2*OD4)	(ID3*OD5)	(ID1*OD3)	(ID2*OD4)	(ID3*OD5)
600rpm	145	500	940	10	30	50	11	32	65
Number of adaptive channels	≤2	1		≤12			≤12
Flow Description	1、The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water. 2、The total flow rate of multiple series connections ≈ the flow rate of a single pump head * the number of series pump heads; 3、Total multi-channel traffic ≈ single channel traffic * number of channels.
