384Y Easy Mounting OEM Peristaltic Pumps

  • Models:384Y
  • Maximum channel quantity:1
  • Reference flow rate:≤215ml/min

■ A simple and easy-to-install peristaltic pump
■ 4 roller design, lower pulse
■ The cassette button design allows one-touch opening and closing, making tube replacement more convenient
■ Pump body comes with mounting holes
■ Compatible with stepper motors

384Y Easy Mounting OEM Peristaltic Pumps is an attractive choice that is easy to install, saving you time and effort. Its 4-roller design effectively reduces pulsation, ensuring smooth and stable flow. The unique cassette button design makes opening and closing the tube simple and quick, making it easy to replace. The pump body is equipped with built-in mounting holes, ensuring secure attachment and compatibility with stepper motors.

Product Configuration

Product Parameters

Product Parameter
Product Model384Y/BT
Motor TypeStepper motor
VoltageDC24V
Power5W
Weight485g
Work EnvironmentTemperature 0 (no icing)~60 ℃, relative humidity<85% RH
Outlet Pressure≤0.1MPa
Tube Connection MethodStandard: Direct joint
Installation MethodPump body with mounting holes
FeaturesCan match infusion tubes with a wall thickness of 0.8mm to 1.6mm on the market
Noise≤58dB
（Testing environment noise≤58dB. The horizontal distance between the test product and the noise meter is 1 meter.）
FunctionStart/stop, cw/ccw rotation, up/down speed
Main MaterialsCover and  Base: PPS    Roller: PA

Reference Flow Rate

Reference Flow Rate (unit: ml/min)
Motor Speed/Tube TypeSilicone TubeBPT Tube
16#(ID3.2*OD6.4)4*1(ID4*OD6)4*1(ID4*OD6)
300r150215210
Flow DescriptionThe flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water.

Typical Applications

Dental implant machines, Medical equipment, Analytical equipment, Cell culture, Protein analysis, Debridement, Fermentation tanks

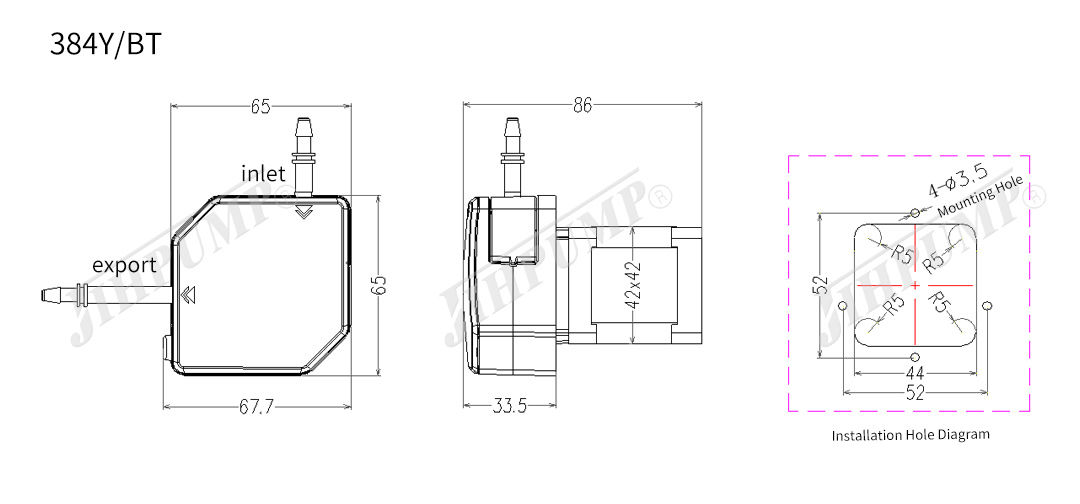

Overall Dimension
