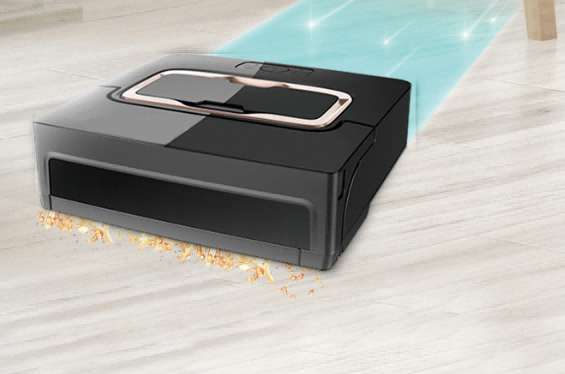

The Role of Peristaltic Pumps in Robotic Cleaners

Robotic cleaners, or robotic vacuums, have become increasingly popular household appliances, offering a convenient and automated solution for maintaining clean floors. These sophisticated devices employ a variety of technologies to navigate, detect dirt, and effectively clean. Among these technologies, peristaltic pumps play a crucial role, particularly in robotic cleaners equipped with mopping functionalities and self-cleaning stations. This article explores the working principle of peristaltic pumps, their specific applications within sweeping robots, the advantages they offer, and highlights JIEPUMP’s specialized peristaltic pumps designed for this demanding application.

The Working Principle of Peristaltic Pumps

Peristaltic pumps, also known as tube pumps, operate on a unique principle that isolates the fluid being pumped from the pump mechanism itself. The core component is a flexible, usually circular, tube made of an elastomeric material. The pump houses a set of rollers or shoes that compress the tubing. As these rollers rotate, they progressively squeeze the tube, creating a sealed chamber of fluid that is propelled forward.
The continuous rotation of the rollers creates a wave-like motion of compression, effectively “milking” the fluid through the tube from the inlet to the outlet. This simple yet ingenious mechanism allows for the transfer of a wide range of fluids, including viscous liquids and those containing solids, with minimal risk of contamination or damage to the pump itself.

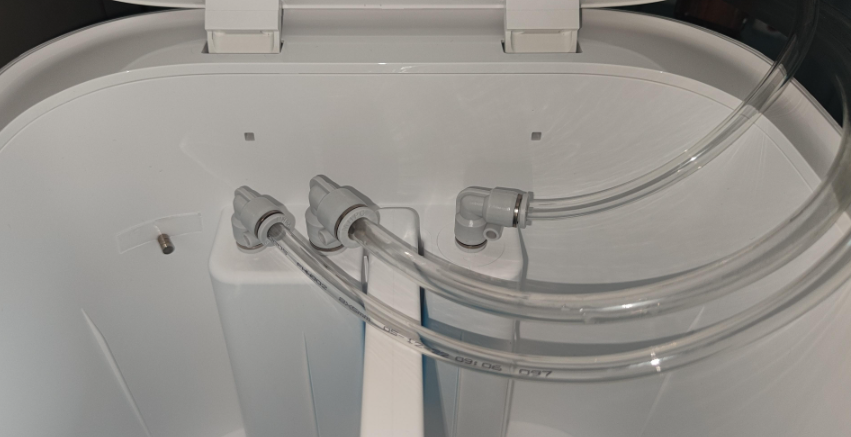

How Peristaltic Pumps Work in Sweeping Robots

Peristaltic pumps find several key applications within modern sweeping robots, enhancing their cleaning capabilities and automating essential tasks.

Automatic Water Supply and Drainage System

Many high-end robotic cleaners now feature self-cleaning bases. These bases automatically wash and dry the mopping pads of the robot. Peristaltic pumps are essential for this functionality. One pump is typically used to draw clean water from a reservoir in the base station and deliver it to the robot’s mopping pad. A second peristaltic pump then extracts the dirty water from the robot and transfers it to a separate waste tank within the base. This automated water management system ensures that the robot always has a fresh supply of clean water for mopping and efficiently disposes of the dirty water, minimizing user intervention.

Mop Cleaning

During the mopping cycle, the peristaltic pump plays a vital role in delivering the appropriate amount of water or cleaning solution to the mopping pad. The pump’s ability to precisely control flow rate is crucial here. Too much liquid can lead to oversaturation and inefficient cleaning, while too little can result in a dry mop and poor cleaning performance. The peristaltic pump ensures a consistent and controlled flow of liquid, keeping the mop pad optimally damp for effective cleaning. This controlled delivery also prevents water wastage and ensures efficient use of cleaning solutions.

Detergent Delivery

Some robotic cleaners are designed to dispense cleaning solutions along with water during the mopping process. Peristaltic pumps are ideally suited for this task. They can accurately meter and deliver the correct amount of detergent, ensuring that the cleaning solution is properly diluted and effectively applied to the floor. This precise delivery of detergent maximizes cleaning efficacy while minimizing the risk of residue buildup or damage to sensitive flooring materials.

Advantages of Using Peristaltic Pumps in Sweeping Robots

The use of peristaltic pumps in robotic cleaners offers several significant advantages:

• Fluid Isolation: The fluid being pumped only comes into contact with the inside of the flexible tube. This eliminates the risk of contamination of the pump mechanism itself and makes it easy to clean or replace the fluid path. This is particularly important when dealing with dirty water or cleaning solutions that could clog or corrode other types of pumps.
• Precise Flow Control: Peristaltic pumps offer excellent control over the flow rate of the liquid. By adjusting the rotational speed of the rollers, the flow rate can be precisely tuned to meet the specific needs of the cleaning task. This is crucial for optimizing water usage and ensuring effective cleaning.
• Self-Priming Capabilities: Peristaltic pumps are self-priming, meaning they can draw fluid into the tube without needing to be pre-filled. This is a valuable feature in robotic cleaners, as it simplifies the design of the water and cleaning solution systems.

• Ability to Handle Various Fluids: Peristaltic pumps can handle a wide range of fluids, including viscous liquids, those containing small particles, and even corrosive cleaning solutions. This versatility makes them suitable for use with various types of cleaning agents and ensures compatibility with different cleaning requirements.
• Compact Design: Micro peristaltic pumps are available in very small sizes, making them ideal for integration into the compact design of robotic cleaners.

JIHPUMP Peristaltic Pumps for Cleaning Robots

JIHPUMP specializes in the development and manufacturing of high-quality peristaltic pumps, including those specifically designed for use in robotic cleaners. Their range of micro peristaltic pumps offers compact size, precise flow control, and reliable performance.

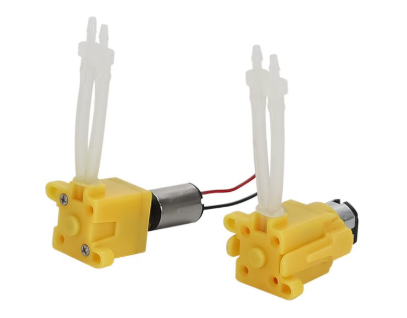

WX2 Micro OEM Peristaltic Pumps

The WX2 Micro OEM Peristaltic Pump is a high-precision peristaltic pump designed for easy integration into a variety of small devices. The pump body is precision-crafted to ensure stability and reliability during long-term use. The entire peristaltic pump weighs only 10 grams, making it extremely lightweight and adding virtually no weight to the device. In addition, it has the advantage of ultra-low noise, making it ideal for small household appliances that require a quiet environment. Whether in a laboratory or home care setting, it can maintain quiet operation.

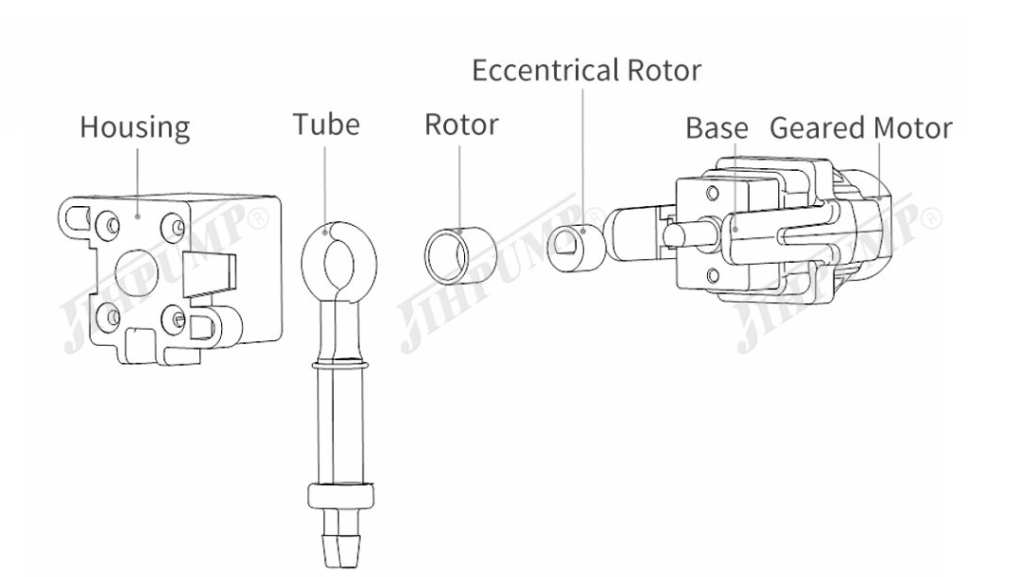

Product Configuration

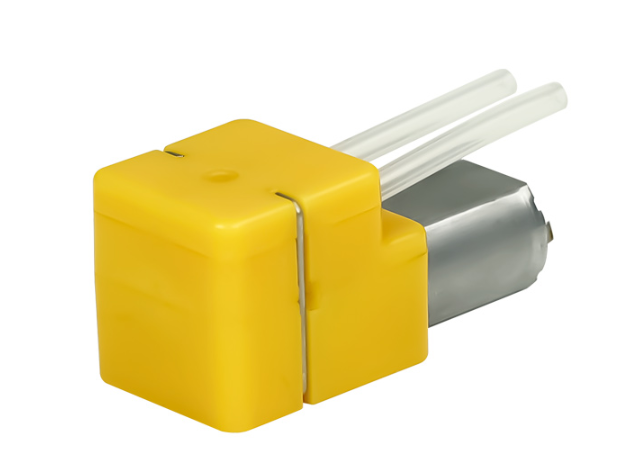

WX3 Micro OEM Peristaltic Pumps

The WX3 miniature OEM peristaltic pump is a compact and efficient micro peristaltic pump designed for micro-flow applications. Its stainless steel rollers ensure a stable service life, and the metal anti-cover clip design effectively prevents the cover from falling off, making operation more stable. The pump body has mounting holes for easy installation and is suitable for integration with small household appliances. 1 It is widely used in trace element analyzers, sweeping robots, chemiluminescence analyzers, mini water quality devices, soap dispensers, beauty devices, essential oil delivery, and e-liquid delivery.

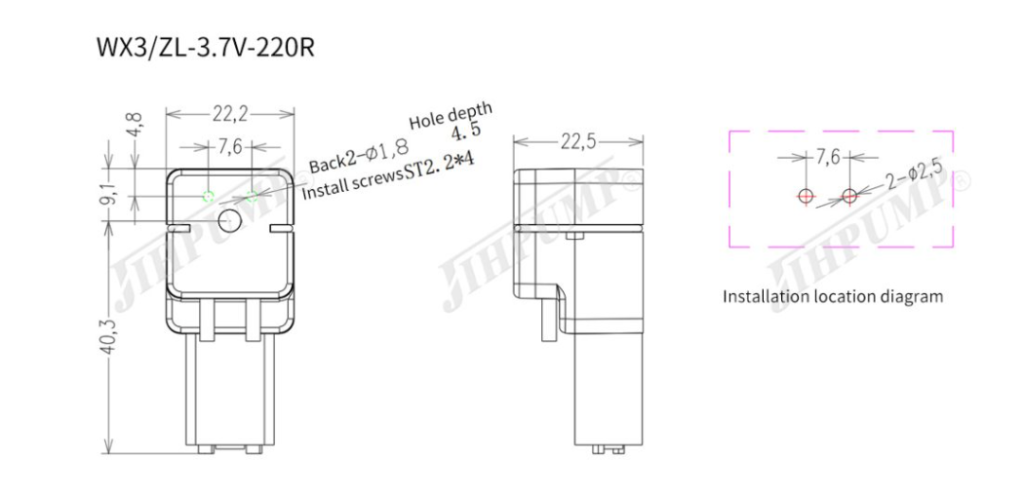

Product Configuration

JIHPUMP’s focus on quality and innovation makes them a leading provider of peristaltic pump solutions for the robotic cleaning industry. By providing reliable and efficient fluid transfer solutions, JIHPUMP plays a key role in advancing the technology of robotic cleaning and making these devices even more convenient and effective for consumers.
