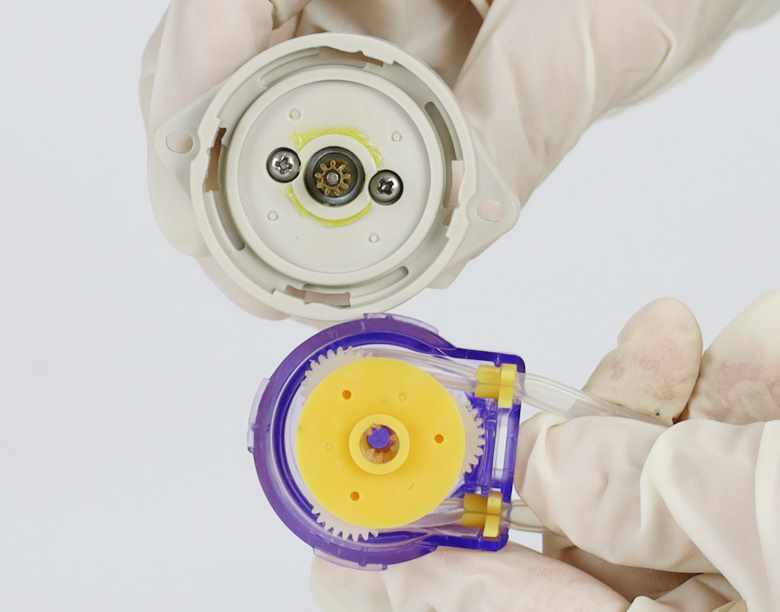

Why OEM Equipment Uses Panel Mount Peristaltic Pumps
When engineers design OEM equipment, the selection of pump body is not merely based on basic parameters such as flow rate and motor type. The installation method is even more crucial. The installation form of the pump directly affects the overall size of the equipment, the ease of maintenance, the user’s experience, and the reliability of the entire machine’s operation.
Based on this core advantage, panel mounted peristaltic pumps are now widely used in various compact systems such as medical equipment, beverage distribution equipment, laboratory instruments, and water quality analyzers. This installation method integrates the pump body into the front or side panel of the equipment, which not only significantly simplifies daily maintenance operations such as pipe replacement, but also organizes the internal structure of the equipment, making the layout more concise and orderly.
What Is a Panel Mount Peristaltic Pump?
The panel mount peristaltic pump is specifically designed for embedded installation on equipment panels, unlike the built-in installation method of the entire machine. Its motor and main body are stored inside the equipment cabinet, while the pump head is exposed outside. Maintenance work can be carried out directly from the outside of the equipment.
Based on this structure, operators do not need to disassemble the equipment body to quickly replace the hose or check the pump head status, completing various daily maintenance tasks.
Traditional bracket-mounted peristaltic pumps are completely built into the equipment interior. During maintenance, the equipment shell needs to be opened to access the pump body. In contrast, the panel-type design places the core maintenance components externally, making them easily accessible, significantly reducing maintenance time, especially suitable for equipment scenarios that require regular pump tube replacement.
This installation form does not alter the working principle and performance of the peristaltic pump itself. It only optimizes the integration structure between the pump body and the entire machine, perfectly meeting the high standards of OEM equipment for space utilization, operational convenience, and overall appearance quality.
Why Is Panel Mount Design Popular in OEM Equipment?
The popularity of panel mounted peristaltic pumps is driven by practical engineering considerations rather than aesthetics alone.
Easier Maintenance
Peristaltic pump tubing is a consumable part and needs to be replaced regularly. With the panel installation structure, maintenance personnel do not need to disassemble the equipment’s outer shell and internal components. They can complete the hose replacement operation directly on the outside of the machine body.
This type of equipment is widely used in laboratories, hospitals and industrial production lines. Shortening the hose replacement time can effectively reduce downtime losses and significantly reduce the daily maintenance workload.

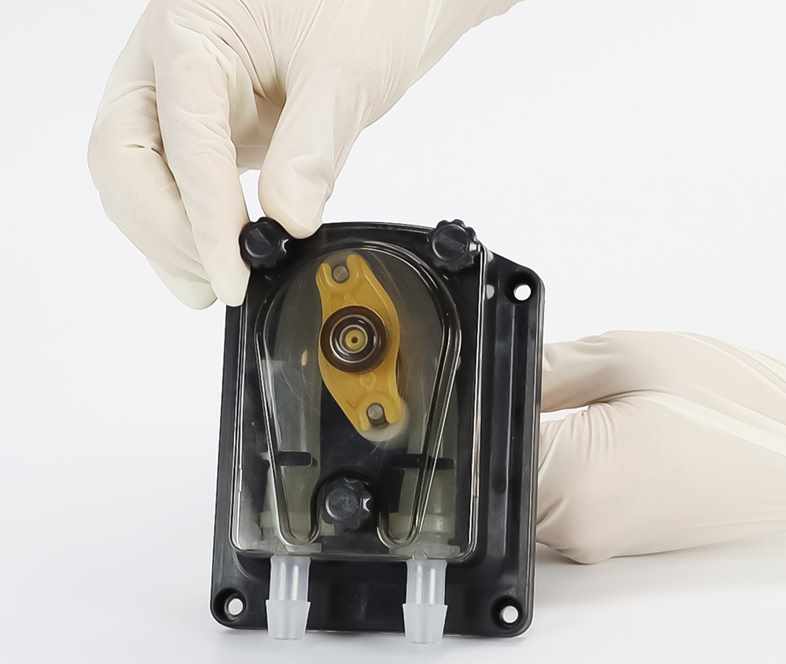

Better Use of Internal Space
Nowadays, the miniaturization trend of OEM equipment is becoming increasingly evident. The internal space of medical analyzers, beverage equipment, environmental monitoring instruments, and various portable devices is generally tight, making it difficult to accommodate all the components.
By embedding the peristaltic pump in the panel, engineers can place the motor and drive structure inside the cabinet while keeping the exposed and repairable pump head exposed. This installation form is flexible in layout, which can not only simplify the internal structure of the equipment but also regulate the pipeline arrangement.
Improved User Accessibility
Some applications require operators to change tubing frequently because different liquids are processed or because hygiene standards require regular replacement.
With a panel-mounted pump, operators can access the tubing directly from the front or side of the equipment, reducing the need for specialized tools or technical training.
Cleaner Equipment Design
OEM manufacturers also attach great importance to the overall appearance design of the machine. The panel installation scheme can incorporate most of the mechanical structures within the body, with only the pump heads exposed for operation.
The overall appearance is simple, neat, and more professional, and it does not affect the operation. This is particularly crucial for laboratory instruments, commercial beverage equipment, and medical instruments for end-users.

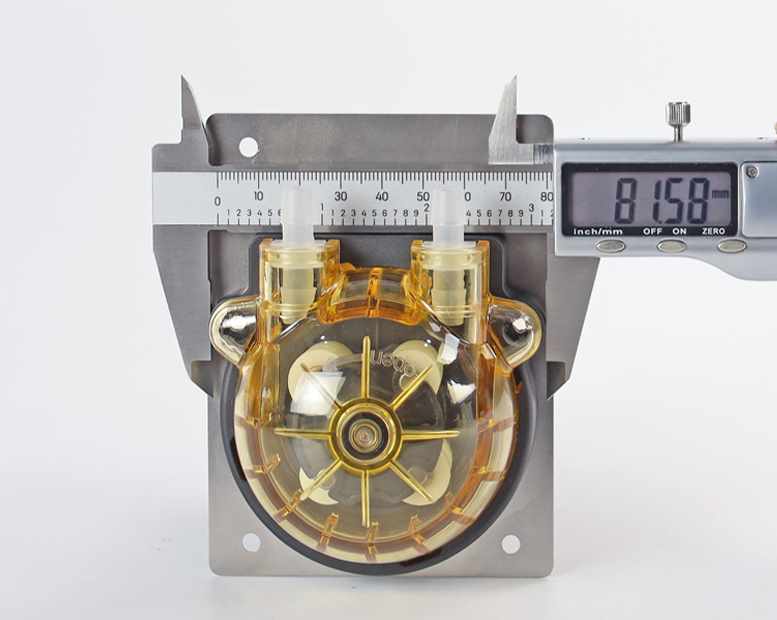

Simplified Equipment Integration
During the product development stage, engineers need to integrate peristaltic pumps, control boards, sensors, fluid pipelines, and various mechanical components.
The panel mount peristaltic pump has a unified standard installation specification, which not only reduces the difficulty in designing the equipment shell, but also makes subsequent maintenance and replacement of components more convenient.

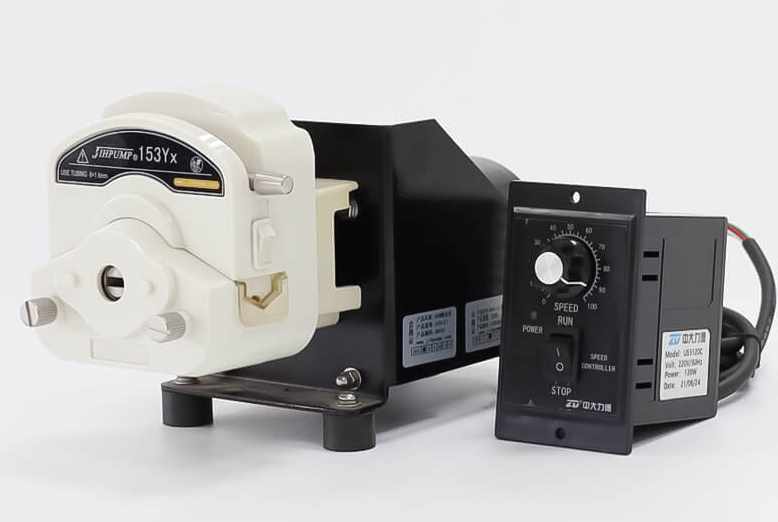

Panel Mount vs Bracket Mount Peristaltic Pumps
Both installation methods are widely used in OEM equipment, but each offers different advantages depending on the application.
| Feature | Panel Mount | Bracket Mount |
| Installation | Mounted through the equipment panel | Mounted to an internal frame or base plate |
| Tube Access | Accessible from outside the enclosure | Usually requires opening the equipment |
| Maintenance | Faster tube replacement | More maintenance steps |
| Internal Layout | Helps optimize enclosure space | Greater flexibility for internal positioning |
| Equipment Appearance | Clean exterior with hidden motor | Functional, less appearance-focused |
| Typical Applications | Medical, laboratory, beverage, analytical equipment | Industrial machinery, automation systems, customized equipment |
Both methods have their advantages and disadvantages. When the requirement for maintenance convenience is not high or when the equipment layout requires maximum installation flexibility, a bracket pump might be a better choice.
However, when it comes to balancing the need for compact size, frequent maintenance, and professional appearance in equipment, panel mounted peristaltic pumps usually offer numerous practical advantages, enabling simplified manufacturing processes and long-term operation.
Choosing the Right Installation Method
When selecting a peristaltic pump, it is not only the flow rate and hose specification that should be considered. The installation structure directly determines the equipment layout, operation efficiency and user experience.
Panel mount peristaltic pumps balance integration compactness and maintenance convenience, and are the preferred choice for many OEM manufacturers. They are suitable for medical instruments, beverage equipment, laboratory equipment, industrial automation and other scenarios. They can not only shorten the maintenance time but also facilitate the creation of a simple and efficient overall structure.
By comparing the panel installation and bracket installation schemes, engineers can abandon single performance parameters and select the pump assembly form that meets the equipment requirements.
