BT-100CA LCD Display Series
- Models: BT-100CA
- Maximum channel quantity: 12
- Reference flow rate: ≤500ml/min
■ Large-screen true color LCD graphic display;
■ Functions: flow adjustment, timing and filling;
■ Rotary code switch and touching keypad control;
■ Functions: automatically identification footswitch, filling with automatic function and infrared;
■ Accepting analog signal and 485 communication agreement;
■ Experimental, sampling, filling, industrial large flow pumping packaging and teaching equipment;
■ Compatible with 153Yx/253Yx/DGx/DT peristaltic pump heads, with multiple flow rates to select.
Product Features
BT-100CA LCD Display Series is a high-performance pump equipped with a large true-color LCD graphic display, allowing users to easily monitor and operate the device. It features flow adjustment, timing, and filling functions, with flexible control options including a rotary code switch and touch keypad. The pump supports automatic identification of footswitches and infrared automatic filling, greatly enhancing convenience.
Additionally, BT-100CA can handle analog signals and 485 communication protocols, making it suitable for a variety of applications, including experiments, sampling, filling, and industrial large-flow pumping. It is also compatible with various peristaltic pump heads to meet different needs.

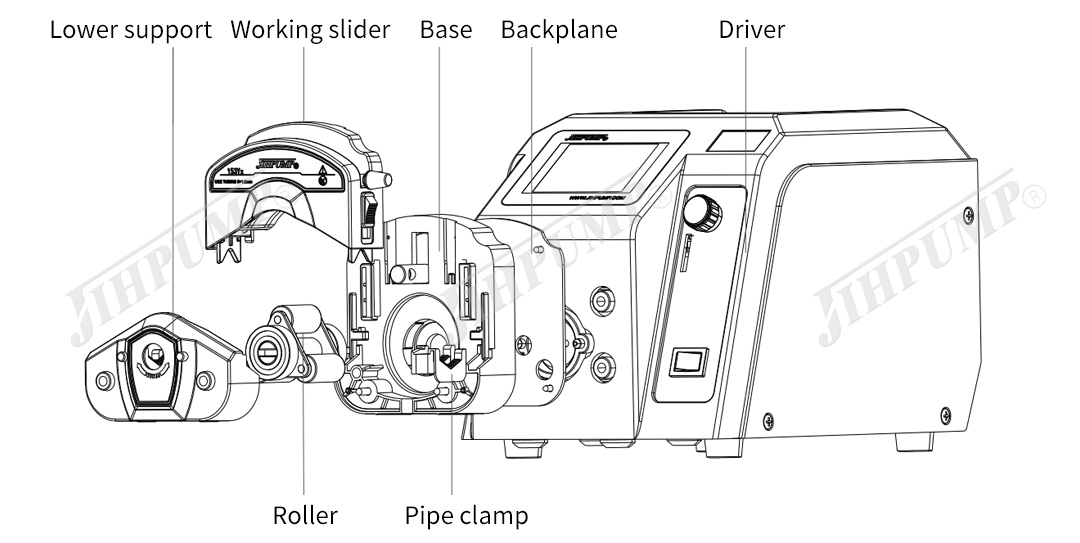

Product Configuration
Product Parameters
| Product Parameters | |
| Product Name | BT-CA Series |
| Product Model | 100CA |
| Speed Range | 0.1～100r |
| Speed Resolution | 0.1rpm |
| Outlet Pressure | ≤0.17MPa |
| Control Mode | Membrane button + coding switch |
| Major Function | Manual control, automatic, appointment timing, filling, external control |
| External Control Mode | Foot switch、0～5V、0～10V、4～20mA、 ModBus communication protocol |
| Display | LCD touch button |
| Voltage | AC 100～240V，50/60Hz， 1.0A |
| Power | ≤48W |
| Work Environment | Temperature 0 ~ 60 ℃, relative humidity ＜ 85%RH |
| Motor Type | Stepper motor drive |
| Motor Life | 6000~20000h |
| Drive Size | L242*W166*H178mm |
| Drive Weight | 3.2KG |
| IP Rating | IP31 |
Reference Flow Rate
| Reference Flow Rate（unit: ml/min） | |||||||||
| Pump Head Model | 153Yx | 253Yx | |||||||
| Motor Speed/Tube Type | 14# (ID1.6*OD4.8) | 16# (ID3.2*OD6.4) | 25# (ID4.8*OD8) | 17# (ID6.4*OD9.6) | 18# (ID7.9*OD11.1) | 15# (ID4.8*OD9.6) | 24# (ID6.4*OD11.2) | 35# (ID7.9*OD12.7) | 36# (ID9.6*OD14.4) |
| 100rpm | 26 | 85 | 175 | 270 | 425 | 170 | 265 | 385 | 500 |
| Number of pump heads in series | ≤6 | ≤5 | ≤4 | ≤3 | ≤2 | ||||
| Pump Head Model | DGx | DT | – | ||||||
| Motor Speed/Tube Type | 14# (ID1.6*OD4.8) | 16# (ID3.2*OD6.4) | 25# (ID4.8*OD8) | 1×1 (ID1*OD3) | 2×1 (ID2*OD4) | 3×1 (ID3*OD5) | – | ||
| 100rpm | 26 | 85 | 155 | 6 | 20 | 32 | – | ||
| Number of adaptive channels | ≤4 | ≤12 | – | ||||||
| Flow Description | 1、The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water. 2、The total flow rate of multiple series connections ≈ the flow rate of a single pump head * the number of series pump heads; 3、Total multi-channel traffic ≈ single channel traffic * number of channels. | ||||||||
Typical Applications
Biopharmaceuticals, experimental research, industrial production, chemical additives
Overall Dimension
