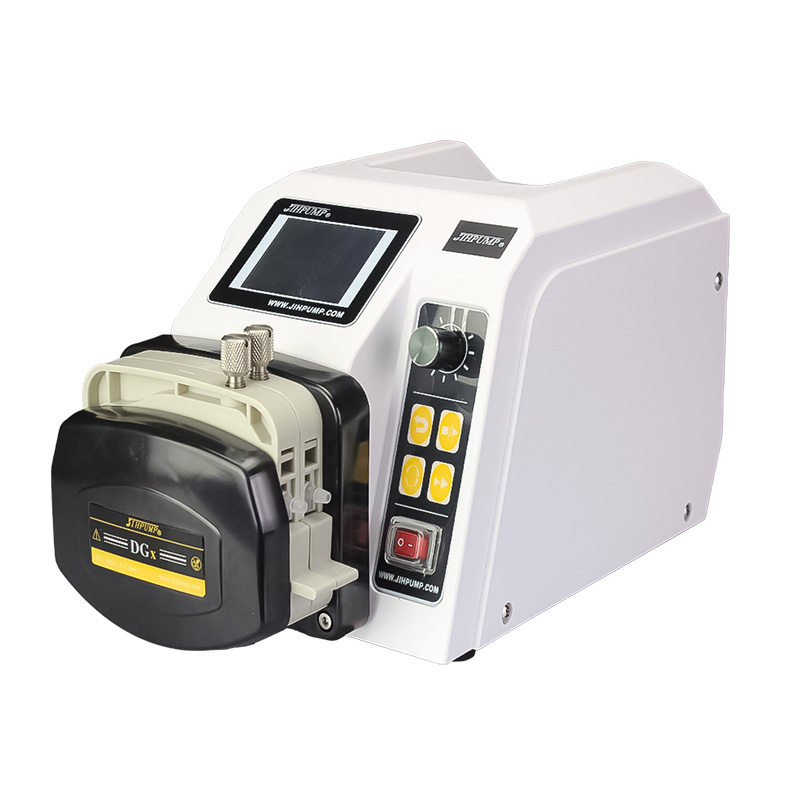

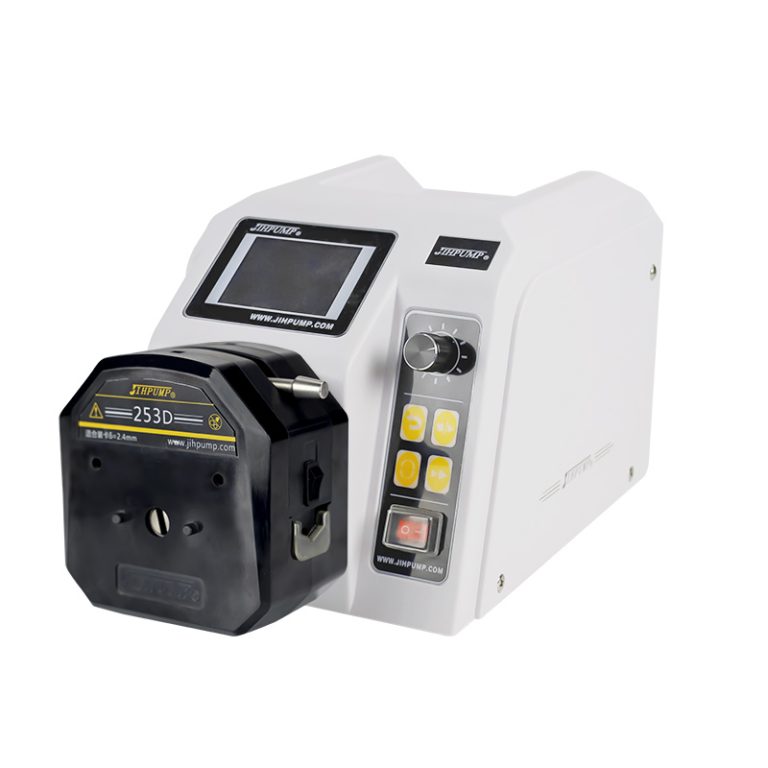

BT-600CA LCD Display Series
- Models: BT-600CA
- Maximum channel quantity: 6
- Reference flow rate: ≤3365ml/min
■ Full-color LCD screen with large graphic display;
■ Functions include flow regulation, time setting, and filling;
■ Features a rotary code switch and touch panel for control;
■ Supports automatic footswitch detection, auto-filling, and infrared functionality;
■ Compatible with analog signals and 485 communication protocol;
■ Equipment designed for experimental use, sampling, filling, industrial high-flow pumping, packaging, and educational purposes;

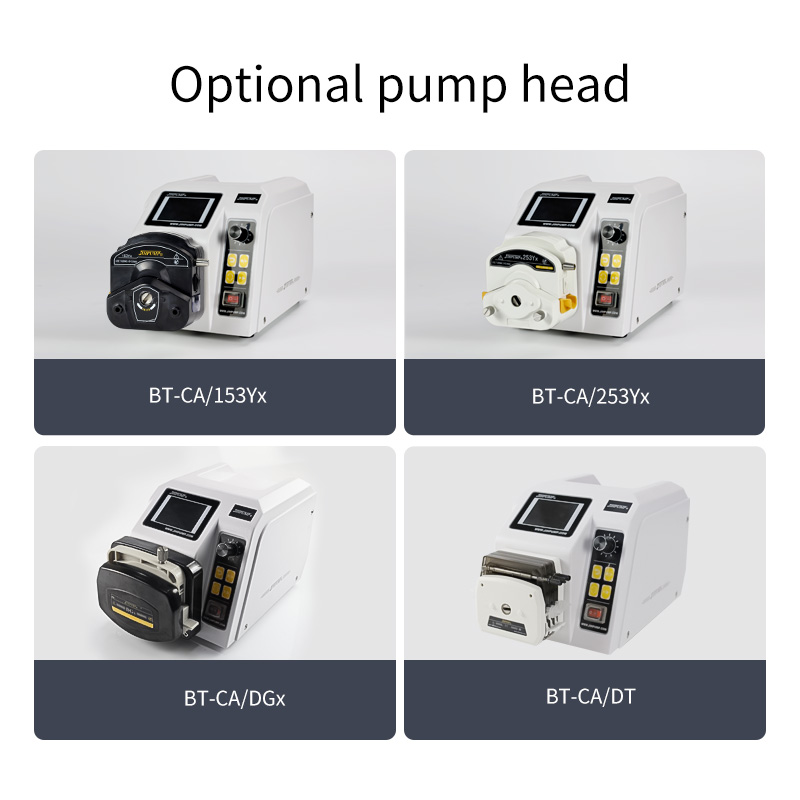

■ Compatible with 153Yx, 253Yx, DGx, and DT peristaltic pump heads, offering a variety of selectable flow rates.
Product Features
BT-600CA LCD Display Series is an efficient and intelligent pump designed for a variety of applications. Its large true color LCD graphic display makes operation intuitive and straightforward. Equipped with flow adjustment, timing, and filling functions, the pump supports both rotary code switch and touch keypad control for flexible and convenient operation. The unique features of automatic footswitch recognition and infrared automatic filling enhance user convenience.
Moreover, BT-600CA accepts analog signals and 485 communication protocols, making it suitable for experiments, sampling, filling, and industrial high-flow pumping needs, while being compatible with various peristaltic pump heads to provide users with multiple flow options.
Product Configuration
Product Parameters
| Product Parameters | |
| Product Name | BT-CA Series |
| Product Model | 600CA |
| Speed Range | 0.1～600r |
| Speed Resolution | 0.1rpm |
| Outlet Pressure | ≤0.17MPa |
| Control Mode | Membrane button + coding switch |
| Major Function | Manual control, automatic, appointment timing, filling, external control |
| External Control Mode | Foot switch、0～5V、0～10V、4～20mA、 ModBus communication protocol |
| Display | LCD touch button |
| Voltage | AC 100～240V，50/60Hz， 2.0A |
| Power | ≤54W |
| Work Environment | Temperature 0 ~ 60 ℃, relative humidity ＜ 85%RH |
| Motor Type | Stepper motor drive |
| Motor Life | 6000~20000h |

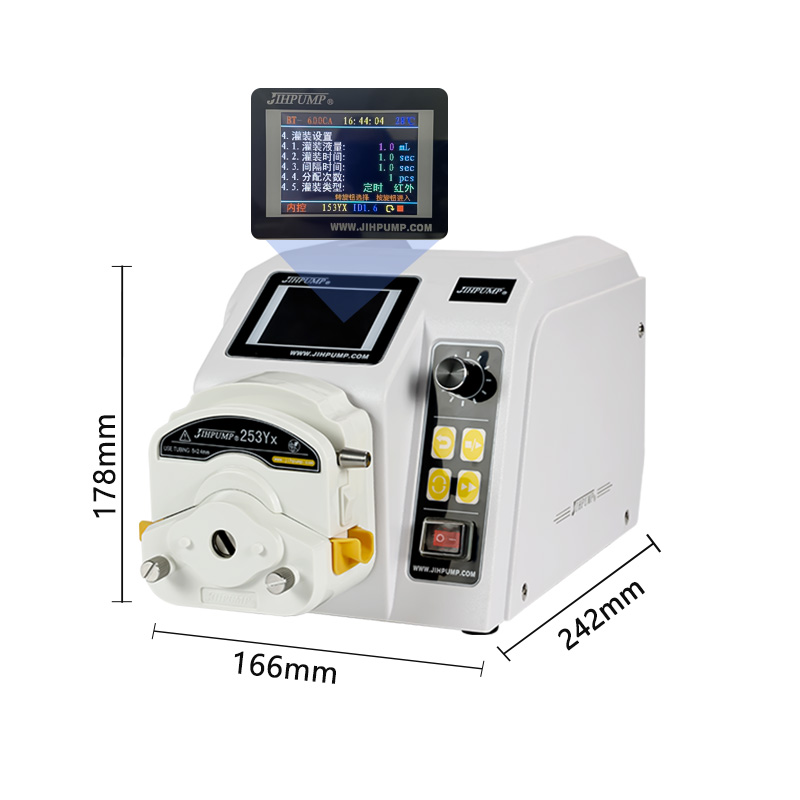

| Drive Size | L242*W166*H178mm |
| Drive Weight | 3.8KG |
| IP Rating | IP31 |
Reference Flow Rate
| Reference Flow Rate（unit: ml/min） | |||||||||
| Pump Head Model | 153Yx | 253Yx | |||||||
| Motor Speed/Tube Type | 14# | 16# | 25# | 17# | 18# | 15# | 24# | 35# | 36# |
| (ID1.6*OD4.8) | (ID3.2*OD6.4) | (ID4.8*OD8) | (ID6.4*OD9.6) | (ID7.9*OD11.1) | (ID4.8*OD9.6) | (ID6.4*OD11.2) | (ID7.9*OD12.7) | (ID9.6*OD14.4) | |
| 600rpm | 145 | 515 | 1080 | 1770 | 2135 | 1085 | 1695 | 2640 | 3365 |
| Number of pump heads in series | ≤6 | ≤4 | ≤3 | ≤2 | ≤3 | ||||
| Pump Head Model | DGx | DT (Max 150rpm) | DG (Max 150rpm) | ||||||
| Motor Speed/Tube Type | 14# | 16# | 25# | 1*1 | 2*1 | 3*1 | 1*1 | 2*1 | 3*1 |
| (ID1.6*OD4.8) | (ID3.2*OD6.4) | (ID4.8*OD8) | (ID1*OD3) | (ID2*OD4) | (ID3*OD5) | (ID1*OD3) | (ID2*OD4) | (ID3*OD5) | |
| 600rpm | 145 | 500 | 940 | 10 | 30 | 50 | 11 | 32 | 65 |
| Number of adaptive channels | ≤2 | 1 | ≤12 | ≤12 | |||||
| Flow Description | 1、The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water. 2、The total flow rate of multiple series connections ≈ the flow rate of a single pump head * the number of series pump heads; 3、Total multi-channel traffic ≈ single channel traffic * number of channels. | ||||||||

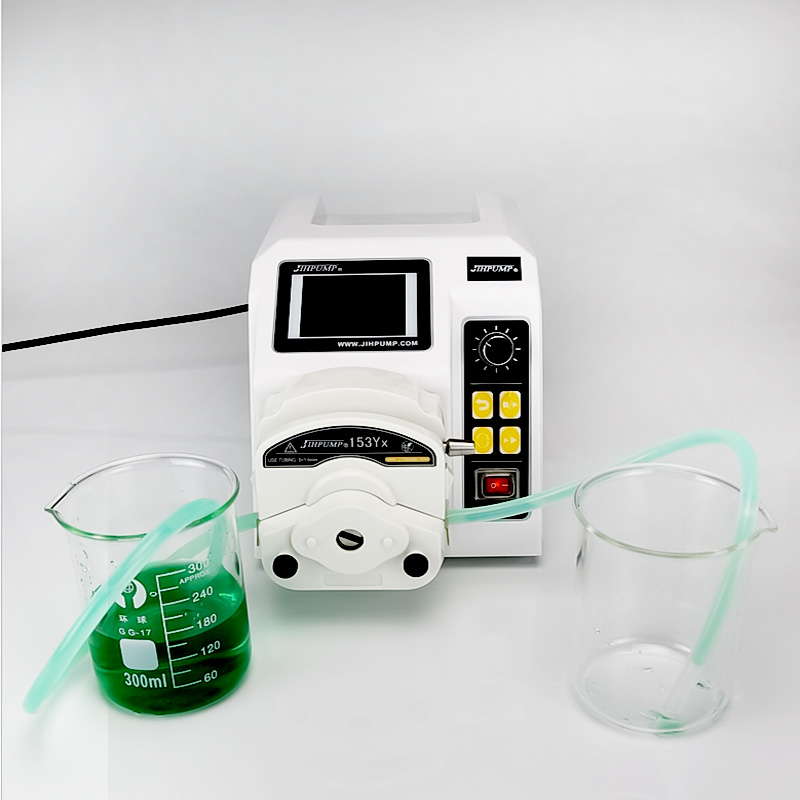

Typical Applications
Biopharmaceuticals, experimental research, industrial production, chemical additives

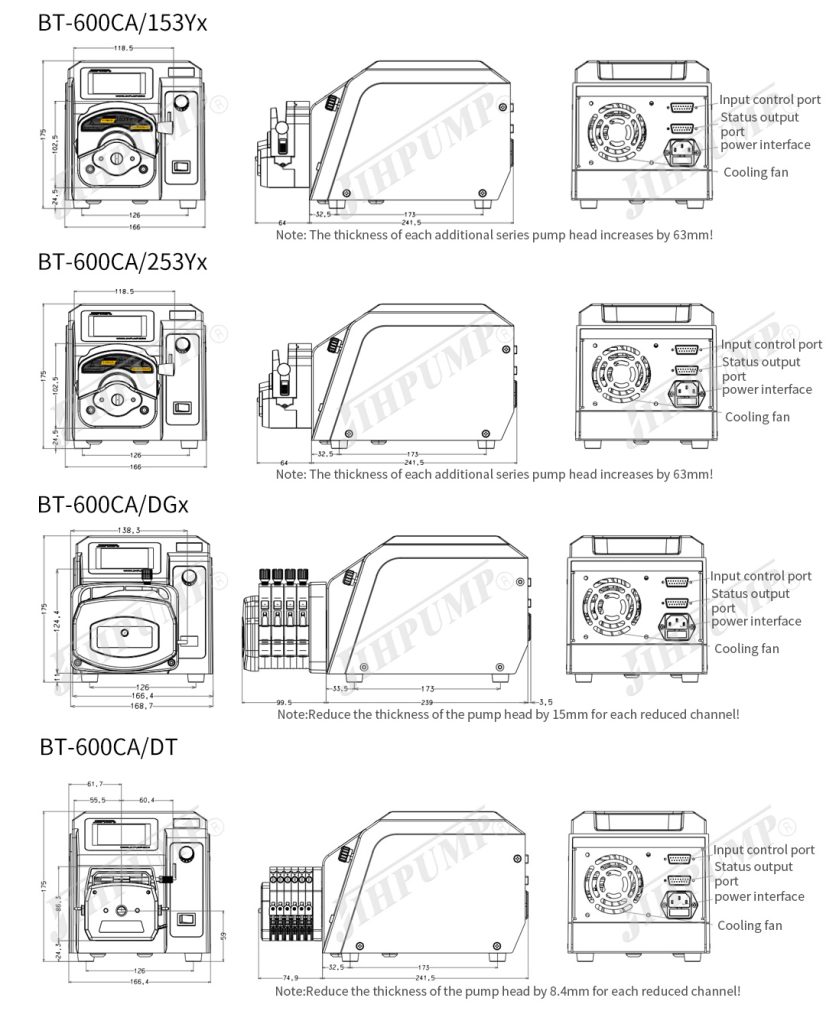

Overall Dimension
