Better Salinity Control with Mini Peristaltic ATO Pumps
To maintain a healthy coral reef aquarium, it is necessary to skillfully balance the chemical composition of the water and the stability of the environment. Among various parameters, salinity stability is the most crucial. In a closed aquarium system, water evaporates, but salt remains. This continuous evaporation causes salinity fluctuations, which can put stress on sensitive corals and fish.
Traditional automatic water replenishment systems typically employ large-flow submersible pumps to “inject” a large amount of fresh water in a short period of time. This results in a “zigzag” fluctuation of the salinity parameter curve – a rapid drop followed by a slow rise. To truly achieve a stable environment, the goal is “microscopic water replenishment”, and this is precisely where the advantages of mini peristaltic pumps lie.
How Mini Peristaltic Pumps Solve ATO Challenges
The peristaltic technology not only can transport water, but also can address the three major drawbacks of the traditional automatic water replenishment pump system for aquariums:
Anti-siphon Advantage
Traditional water pumps often experience the “siphon” phenomenon – even when the pump stops running, water still continues to flow. However, the rollers of the peristaltic pump constantly press against the pipeline, just like a natural check valve, fundamentally eliminating the possibility of accidental water overflow.
Precise and Small Amounts of Water Addition
The flow rate of a standard pump is usually measured in gallons per minute. For small nano fish tanks, even running for a few seconds can result in adding too much fresh water too quickly. Miniature peristaltic pumps typically operate at controllable flow rates (for example, 15-100 milliliters per minute). This enables the water replenishment to be carried out “in small increments”, ensuring that the salinity fluctuation remains within a few percent range.
Pollution-free Operation
In seawater environments, corrosion is the greatest enemy. The metal components and seals inside the submersible pump may eventually leak or rust, causing heavy metals to seep into the water. With the design of a peristaltic pump, water will not come into contact with the mechanical parts of the pump but only with the specially made medical-grade hoses. This ensures that the purity of your reverse osmosis deionized water (RODI) reaches 100%.

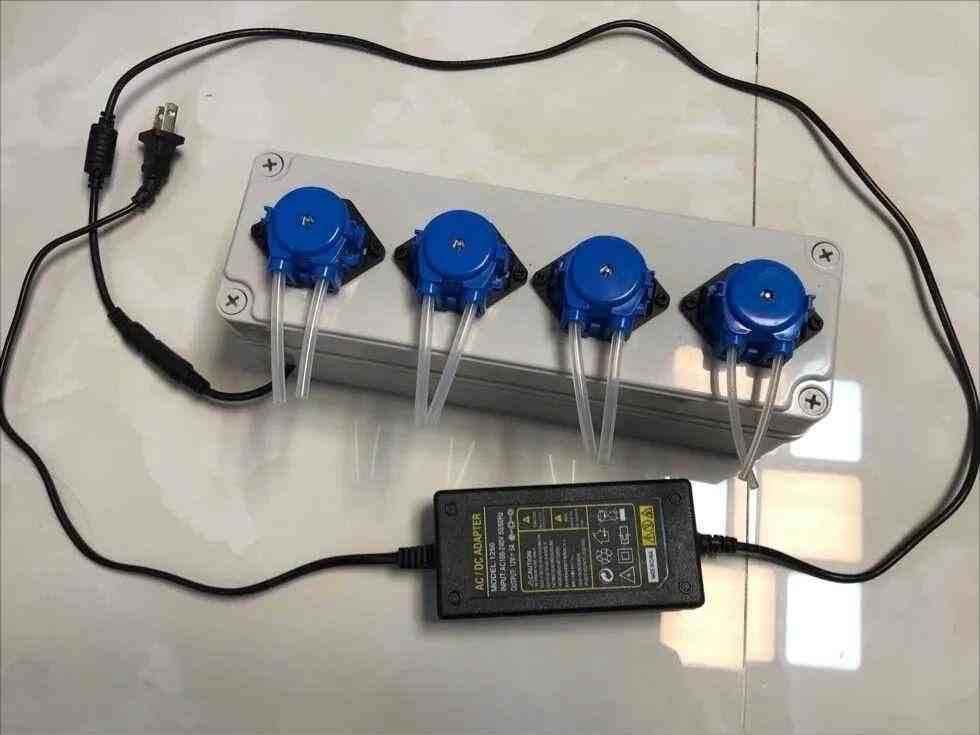

Technical Specs for Seamless Integration
The mini peristaltic pump is not a common water pumping device; rather, it is a sophisticated instrument specifically designed for the confined and humid environment within aquarium cabinets. Its physical design also fully takes into account the unique challenges of coral reef farming:
- High head (vertical head): Unlike small centrifugal pumps that are limited by height, the peristaltic motor can provide stable pressure. This means you can hide the ATO water storage tank in a separate cabinet, or even in another room, without affecting the stability of the water flow.
- Modular installation option: Most mini models are equipped with flexible mounting brackets. Whether you need to install them horizontally to connect the control box, or vertically on the bottom cylinder wall, the mini peristaltic pump can accommodate your space constraints.
- Pipe material versatility: Depending on the specific additives or supplementary water being transported, the pump head can be equipped with different pipe materials (for example, BPT pipe material is durable, while silicone pipe material is cost-effective), ensuring chemical compatibility with any additive.

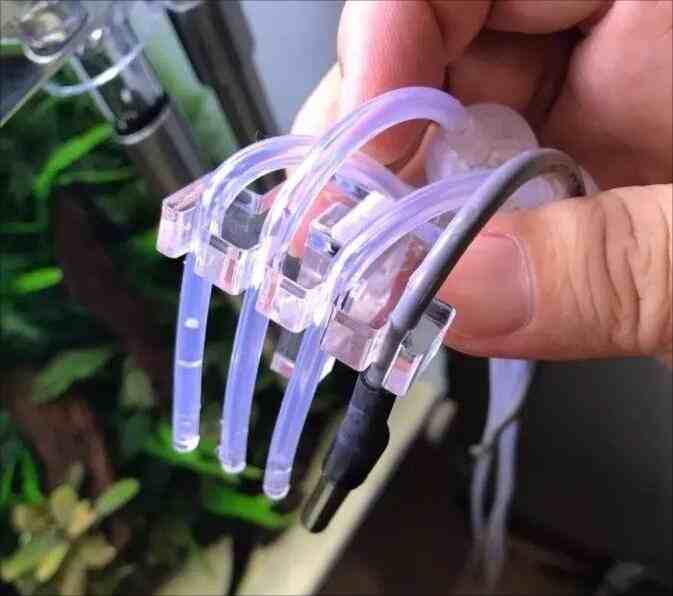

Reliability and Maintenance of Your Mini Peristaltic Pump
For users, a pump that breaks down within three months can cause significant losses. Therefore, choosing a reliable maintenance option and conducting regular maintenance is of great importance.
The Hose can be Replaced without Any Tools
The only component that can wear out in the Mini Peristaltic Pump is the internal hose. The modern design features a “snap-on” pump head. This means that when maintenance is needed (typically every 6-12 months), you can replace the hose in 30 seconds without any tools. This simplicity significantly reduces the long-term ownership cost.
Slip Prevention Safety
Everyone may encounter this situation: the storage tank is running empty. Traditional submersible pumps will overheat and burn out if they run in an idle state. However, the mini peristaltic pump can run idle for several hours without damaging the motor or the pump head. This “fail-safe” feature is a huge advantage for automated systems.
Material Durability
The high-end pumps are equipped with Pharmed BPT or high-quality silicone tubes. These materials have been specially designed to withstand millions of “compressions” by the rollers without deforming, thus ensuring stable flow throughout years of operation.
The Future of High-End Aquarium Automation
As aquarium hobbies continue to integrate with “smart home” technology, the era of “good enough” water levels has passed. Miniature pumping devices are no longer luxuries but are now standard components in any system that requires the best protection for aquatic creatures.
Choosing the Mini Peristaltic Pump for your next automatic water replenishment pump project means you are investing in a fail-safe, precisely designed solution that ensures the stable operation of the system.
Are you looking for a reliable OEM partner? We offer a range of compact high-performance pumps specially designed to meet the demanding requirements of the aquarium industry. Whether you need customized motor specifications or specific materials for pipes, we can provide the hardware necessary to ensure the healthy growth of your customers’ aquariums. Contact us immediately to obtain the technical data sheet and bulk quotations.
