How Does A Beverage Filling Machine Work?

The beverage industry has come a long way with years in terms of new products such as mineral water, energy drinks, and even tea that is brewed cold. With any product, as with consumers nowadays, so much attention is given to quality when it comes to things such as taste, hygiene, and packaging.

Filling beverages is one of the final processes of production and is crucial when it comes to maintaining quality, hence affecting cost-effectiveness. Manufacturers must be extremely cautious when selecting the beverage filling machines.

Over the past decade, food manufacturers have been fascinated with peristaltic pump filling technology due to its high accuracy and high hygiene level. The two aspects have been a beverage manufacturer’s favorite for decades. As a professional peristaltic pump manufacturer, we would like to illustrate the advantages of peristaltic pumps by taking into account water filling machines classification and working principles.

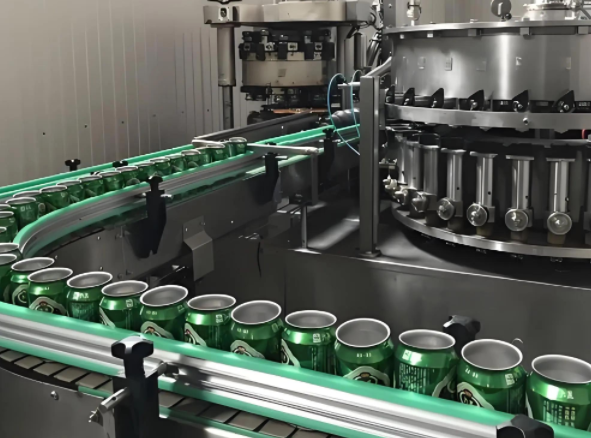

Part 1. What is a Beverage Filling Machine?

A filling machine for a drink is a machine,typically automated, employed to fill a bottle, can, or pouch with a liquid beverage. It is an indispensable machine in the production line of modern beverage firms because precision and accuracy are essential in dispensing liquids in maintaining product uniformity and hygiene.

Beverage filling machinery is applied in different sectors, such as mineral water plants, juice plants, carbonated drink manufacturing lines, tea businesses, dairy companies, and functional drink firms.

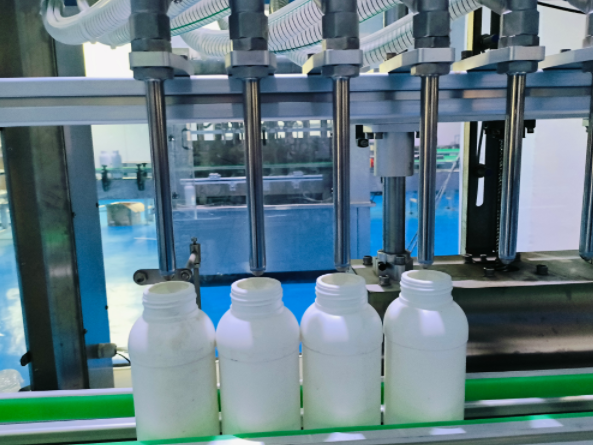

Part 2. Most Common Types of Beverage Filling Machines

As the types of beverages increases, the differences in hygiene, viscosity, and carbonation have led to the improvement in various filling technologies. Different types of beverage filling machines are made to serve particular production purposes. Below are the most common types, along with their features and applications in the beverage industry:

Gravity Filling Machine

These types of machines use natural pressure caused by liquid level differences to fill containers. They have a simple structure, stable operation, and relatively low cost. Because of this, they are perfect for low-viscosity and non-carbonated liquids such as purified water, mineral water, and tea drinks. These machines serve small to medium-scale production and are frequent choices for small beverage factories or startup brands.

Isobaric (Pressure) Filling Machine

Specifically designed for carbonated beverages, isobaric filling machines maintain equal pressure between the bottle and liquid tank during filling to prevent foam formation and gas escape, allowing for smooth filling and a clean product. They are widely used in mass production of cola, soda water, beer, and other fizzy drinks, especially where high-speed and airtight performance is required.

Piston Filling Machine

A filling machine uses a piston mechanism to fill a specific volume of liquid, which is then dispensed into a container. This type of filling machine is ideal for liquids with high viscosity or those containing suspended particles, such as dairy drinks, concentrated juices, and even viscous jam-like products.

Although these machines provide precise filling and great flexibility in volume settings, they require more maintenance due to their intricate mechanical design. This type is best suited for premium beverage lines or manufacturers that deal with a wide range of product viscosities.

Peristaltic Pump Filling Machine

The peristaltic pump filling machines work by compressing flexible tubing with rotating rollers and push liquid forward without fluid coming into contact with any mechanical parts, except for the inner tube wall. This design eliminates cross contamination risks and makes it easy to clean. Peristaltic pump fillers are highly accurate and flexible, making them suitable for:

• High value beverages: Such as cold brewed tea, plant-based drinks, and concentrated juices, where hygiene as well as dosing accuracy is very important.
• Medical-grade or functional drinks: Like nutritional supplements, low-dose beverages, and health tonics.
• Small-batch, multi-variety production: Ideal for pilot runs, customized production, or facilities requiring rapid product changeovers.

Part 3. Working Principle of Beverage Filling Machines

The core function of a beverage filling machine is to fill liquid drinks accurately, efficiently, and hygienically into containers. The automated process significantly improves production efficiency and ensures product consistency. A standard beverage filling line typically includes the following stages:

1. Bottle Infeed

Empty bottles or containers are conveyed into the filling station via a conveyor system. Advanced conveyors ensure high-speed, continuous infeed and align bottles for smooth processing.

2. Bottle Positioning and Fixing

To ensure precise alignment between the filling nozzle and the bottle mouth, mechanical arms or positioning clamps secure each container in place. This prevents movement or tilting, reducing the risk of spillage, and ensuring accurate filling.

3. Liquid Filling

Once the bottles are correctly positioned, the filling system activates and injects a preset volume of liquid into each container. Depending on the product’s viscosity and characteristics, different filling technologies, such as gravity, isobaric, piston, or peristaltic systems, are employed to ensure efficiency and accuracy.

4. Capping or Sealing

After filling, the bottles move to the sealing station, where caps are applied or films are heat-sealed to ensure product integrity and prevent contamination or leakage.

5. Bottle Outfeed

Sealed bottles are conveyed to downstream operations such as labeling, inspection, and packaging, completing the filling line.

Advantages of Peristaltic Pump Filling Systems

Peristaltic pump filling systems use a flexible-tube compression mechanism. As the rollers rotate, liquid is pushed to flow in a controlled forward motion and is pulsed in a precise manner. Throughout this process, the liquid remains in contact only with the inner surface of the tubing, resulting in no mechanical contact and a very clean filling process.

Key benefits of peristaltic pump-based beverage filling systems include:

Superior Hygiene

Because the liquid flows only through the inner tube, it never contacts metal or internal machine components. This minimizes the risk of cross-contamination and is ideal for sensitive products like cold brew tea, nutritional drinks, and health beverages.

High Filling Accuracy

By precisely controlling pump rotation speed and time, peristaltic systems can achieve extremely accurate dosing, typically within ±1%. They are especially suitable for filling volumes between 10ml and 500ml.

Fast Product Changeover

Switching between beverages is as simple as replacing the tubing—there’s no need to clean the entire machine. This makes it perfect for small batches, custom recipes, or multi-flavor production.

Easy Maintenance

With a simple structure and minimal contact parts, maintenance is straightforward. Only the tubing requires regular replacement, significantly reducing labor and machine downtime.

Anti-Drip Design

With advanced control systems, it is possible to integrate features such as “suck-back” which reduces the problem of post-filling drips, thus maintaining cleanliness of the bottles and improving overall presentation of the product.

Within the beverage industry, peristaltic pump filling technology is gaining traction, especially in newly established production lines where high levels of cleanliness, precision and versatility are required. It provides an economical and dependable option for premium beverage producers who are operationally efficient and maintain rigorous standards.

Part 4. JIHPump Peristaltic Filling Pump Systems

As a specialized manufacturer of peristaltic pumps, JIHPump offers high-precision and hygienic filling systems tailored to the beverage industry. Our systems are suitable for both small scale artisan drink producers and large scale manufacturers of functional beverages, offering the required precision, cleanliness, and versatility demanded.

• Wide Flow Range: Supports filling from 0.1ml up to 36L/min, covering micro-dosing as well as high-volume production activities.
• Food-Grade Tubing Options: Available with FDA certified and food grade tubing materials ensuring safety and compliance with regulations.
• Exceptional Accuracy: Filling error can be controlled within ±0.5% making it ideal for filling products with stringent volume requirements.
• Versatile Control Modes: Compatible with automated filling lines, foot pedal triggering, or PLC-controlled systems, allowing easy integration into diverse production environments.
• OEM/ODM Customization: We offer tailored peristaltic pump solutions to meet specific industry and customer requirements, including system design, flow rate, and control interface.

With clients across Europe, Southeast Asia, North America, and top beverage brands in China, JIHPump products are widely used in:

• Functional and nutritional beverages
• Laboratory-scale beverage R&D
• Small-batch or seasonal product packaging

Whether you need a clean solution for delicate liquids or a scalable system for multi-product production, JIHPump delivers precision and reliability for every fill.

Wrap Up

Choosing the correct beverage filling machine improves operational efficiency while still upholding quality, consistency, dependability, and uniformity. Of all filling technologies, peristaltic pumps are favored by both large-scale manufacturers and small to medium-sized brands due to their precise, sanitary, and flexible operation.

We warmly welcome you to reach out to us if you are in search of a suitable filling solution customized for your product.

At JIHPump, we offer specialized advice and high-quality systems equipped with peristaltic pumps to guarantee your ability to handle actual challenges in beverage production with confidence.
