Four Major Application Scenarios for Handheld Sampling Pumps
A Sampling pump is a device used to extract and transfer liquid samples, primarily through a series of pumping technologies. Handheld sampling pumps, leveraging peristaltic pump principles and sampler design, enable convenient and precise sample collection. Their flexibility and portability make them widely used in environmental monitoring, water treatment, chemical, and pharmaceutical industries.
What is a Handheld Sampling Pump?
A handheld sampling pump is a portable device designed to draw fluids or gases into a collection container. Typically composed of a pump body, sampling probe, inlet valve, outlet valve, and motor, these pumps are widely employed in various industries for sampling, testing, and monitoring applications. Their compact size, lightweight design, and ease of operation make them ideal for both field work and laboratory use.
Four Major Application Scenarios for Handheld Sampling Pumps
A sampling pump is a commonly used laboratory instrument that finds wide applications in environmental monitoring, water quality testing, chemical and pharmaceutical industries, providing efficient and accurate sample collection solutions for laboratories.
1. Environmental Monitoring
Environmental monitoring is crucial for assessing air and water quality. Handheld sampling pumps play a vital role in this process by collecting samples from various sources, such as:
- Air Quality Monitoring: Sampling airborne pollutants like particulate matter, volatile organic compounds (VOCs), and other harmful substances.
- Water Quality Monitoring: Collecting water samples from rivers, lakes, and other water bodies to analyze parameters like pH, conductivity, and chemical contaminants.
- Soil Sampling: Extracting soil samples for testing nutrient levels, pesticide residues, and heavy metal contamination.
2. Water Treatment
Handheld sampling pumps offer a convenient solution for water quality monitoring in water treatment processes. Their portability allows for on-the-spot sample collection, enabling operators to quickly assess water quality at various points within a water treatment plant.
- Monitor Inflow and Outflow: Collecting samples from the influent and effluent to assess the effectiveness of treatment processes.
- Test Water Quality: Analyzing water samples for parameters like turbidity, chlorine residual, and biological contaminants.
- Collect Sludge Samples: Extracting sludge samples from sedimentation tanks and clarifiers to monitor solids content and other properties.
3. Chemical Industry
Handheld sampling pumps provide a convenient and flexible solution for chemical sampling in production environments. These portable devices enable operators to quickly collect samples from various locations, facilitating timely analysis and process adjustments. By ensuring accurate and representative sampling, handheld pumps contribute to maintaining product quality and operational efficiency.
- Process Monitoring: Collecting samples from various stages of chemical processes to monitor reaction rates, product purity, and byproduct formation.
- Quality Control: Sampling finished products to verify their compliance with quality standards and specifications.
- Environmental Compliance: Monitoring emissions and effluents to ensure adherence to environmental regulations.
4. Pharmaceutical Industry
In pharmaceutical manufacturing, sampling of raw materials and finished products is essential to guarantee product quality and safety. Handheld sampling pumps enable the efficient and convenient collection of samples for subsequent testing and analysis, ensuring that the final product meets all relevant standards and regulations.
- Drug Formulation: Collecting precise amounts of active pharmaceutical ingredients (APIs) and excipients for formulation development.
- Quality Assurance: Sampling raw materials, intermediate products, and final drug products to ensure they meet quality standards.
- Stability Testing: Collecting samples from stability studies to monitor drug degradation and potency over time.
Two Types of Handheld Sampling Pumps Provided by JIHPUMP
JIHPUMP is a leading provider of peristaltic pumping solutions, specializing in research, development, and manufacturing. Our commitment to quality and reliability is reflected in our diverse product line, which includes the SC-I and SC-Ⅲ handheld sampling pumps. Let’s delve deeper into the features and benefits of these innovative products.
SC-I Handheld Sampling Pump
The SC-I handheld sampling pump is a portable device that makes fluid sampling easy. It’s battery-powered, allowing you to use it anywhere. Its powerful motor can handle thick liquids and solid particles. Plus, it can suck up liquids from up to 8 meters away.
Reference Flow Rate
| Reference Flow Rate(unit:ml/min) | ||||
| Motor Speed/Tube Type | Silicone Tube | |||
| 15#(ID4.8*OD9.6) | 24#(ID6.4*OD11.2) | 35#(ID7.9*OD12.7) | ||
| Suction lift 2m | 400rpm | 550 | 890 | 1450 |
| 1500rpm | 1240 | 3050 | 3600 | |
| Suction lift 5m | 400rpm | 545 | 880 | 940 |
| 1500rpm | 925 | 2150 | 1600 | |
| Suction lift 8m | 400rpm | 440 | 680 | – |
| 1500rpm | 485 | 1150 | – | |
- Rechargeable lithium-ion batteries do not need external power supply, and the integrated suitcase is easy to carry;
- Easy to install pump head, easy to operate, easy to clean;
- High performance portable driver, speed 0 ~ 1500rpm stepless speed regulation, reversible forward and reverse rotation;
- Can collect high gravity, high viscosity liquid, can also collect suspension liquid containing solid particles;
- Sampler can be stratified sampling, suction range of up to 8 meters.

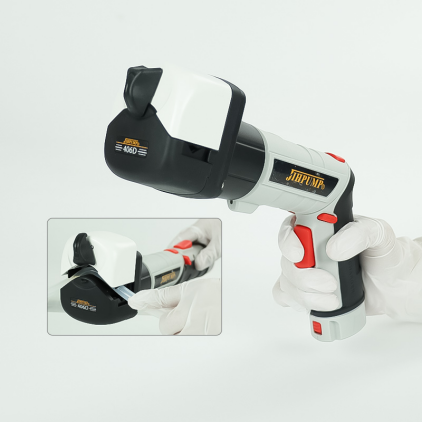

SC-Ⅲ Handheld Sampling Pump
The SC-Ⅲ handheld sampling pump is a portable, lightweight device that can be used anywhere. It has a rechargeable battery, adjustable flow control, and a compact design, making it easy to use for a variety of sampling tasks.
Reference Flow Rate
| Reference Flow Rate(unit:ml/min) | ||
| Motor Speed/Tube Type | Silicone Tube | |
| 17#(ID6.4*OD9.6) | ||
| Suction lift 1m | 180rpm | 295 |
| Suction lift 3m | 280 | |
| Suction lift 4m | 190 | |
- Compact size, easy to carry around
- Rechargeable lithium-ion battery, no external power supply required
- The rotation direction of the pump head can be adjusted and the flow rate can be controlled in real time
Choose the Handheld Sampling Pump You Need
When selecting a handheld sampling pump, consider the following factors:
- Flow Rate: The required flow rate depends on the type of sample and the desired sampling time.
- Pressure: The pump must be able to generate sufficient pressure to overcome the resistance of the sampling line and the collection container.
- Battery Life: A long battery life is essential for extended field work.
- Portability: The pump should be lightweight and compact for easy transportation.
- Durability: The pump should be built to withstand harsh conditions and frequent use.
By carefully considering these factors, you can select the handheld sampling pump that best suits your specific requirements. If you have any further questions about choosing the right pump for your application, please don’t hesitate to contact our experts for personalized assistance.
