OEM Peristaltic Pumps: How Customization Is Revolutionizing Fluid Control
The appearance and configuration of finished peristaltic pumps on the market are roughly the same. Can we have them all at once? We want them to be small in size, controllable by ourselves, and have customized functions. The answer is yes. So in this issue, we will introduce the OEM customization revolution of peristaltic pumps. Today, when the accuracy of fluid control determines the performance of equipment, general-purpose peristaltic pumps have long been inadequate. The diverse demands of a wide range of users have made the customization capabilities of OEM peristaltic pumps an “invisible engine” for equipment innovation. How can peristaltic pumps be upgraded from standardized components to the “fluid nerve center” of equipment through in-depth customization of size, material and control logic?
Advantages of OEM Customization: Why Choose OEM Peristaltic Pumps?
Choosing a custom OEM peristaltic pump over an off-the-shelf equivalent has systemic advantages that impact performance, cost-effectiveness, and time-to-market. It’s a matter of creating a partnership where the pump is treated as a core building block of your intellectual property, not a bolted-on add-on.
1. Engineered for Maximum Integration (The Compact Revolution)
To OEMs, perhaps the most constraining factor is space. Customization allows engineers to tailor the physical dimension, footprint, and mounting interface of the pump to exactly fit the spatial envelope of the host instrument.
- Smaller Footprint: Special motors and pump heads can be designed for maximum flow in minimal space, enabling the trend toward miniaturization in diagnostic and portable equipment.
- Aesthetic and Mechanical Fit: The pump housing, faceplate, and connector position can be designed to optimize internal routing and optimal-looking external appearance without employing intrusive adapters or inefficient wiring.
2. Best Performance and Precision
A typical pump offers a range; an OEM peristaltic pump offers the exact point solution required.
- Flow Rate Specificity: Flow is made specific to the application-specific needs—nanoliter micro-dosing to large-volume transfer—by engineering the interaction of rotor diameter, number of rollers, and tubing bore diameter.

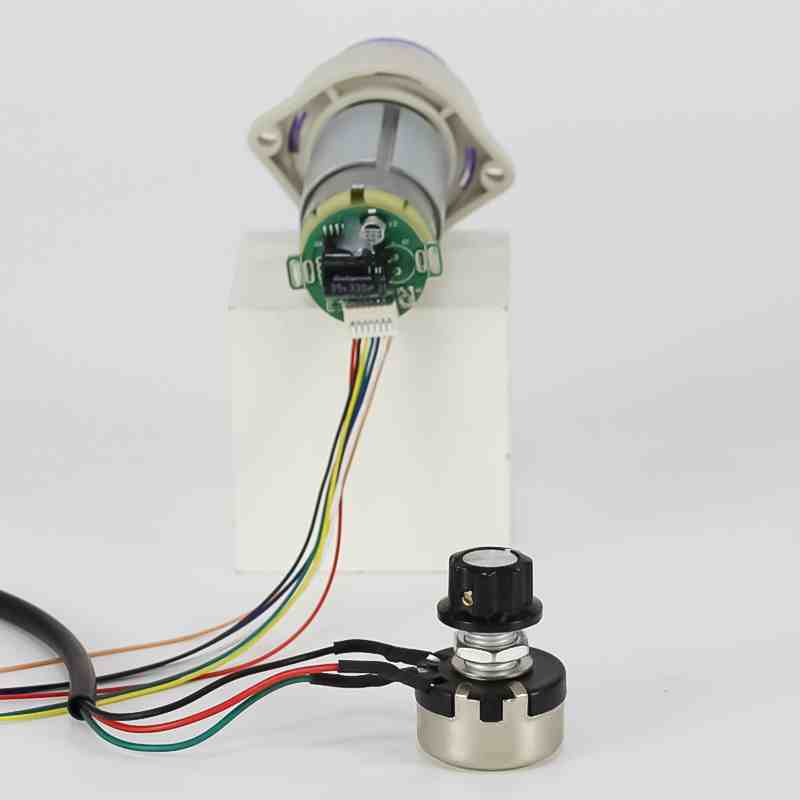

- Motor and Control Matching: Custom OEM peristaltic pump makers can integrate purpose-specific motor type (e.g., stepper for high-precision, DC brushed/brushless for high-duty cycle) and onboard control electronics (PCBs, firmware) for easy communication with the host system’s central processor.
- Chemical Compatibility: Material selection for tubing is important. Custom solutions allow for extensive testing and selection of materials (Tygon, Santoprene, FKM, Silicone, etc.) to ensure long life and integrity for handling specific reagents, solvents, or biological fluids.
3. Lower Total Cost of Ownership (TCO) and Risk
While initial component cost might look higher, a custom solution typically offers greater long-term savings.
- Easy Assembly: A precision-fit pump reduces labor time and assembly errors on the factory floor.
- Predictive Maintenance: Heavy-duty connections and materials in specially designed units can extend maintenance intervals, reducing end-user maintenance costs and lost time.
- Exclusive Design: Beyond performance, OEM peristaltic pumps can carry your brand identity—with custom housings, labeling, and interface designs. Functionally, they can be adapted with digital control interfaces, sensors, or data feedback for real-time monitoring.
A quick comparison shows the difference:
| Feature | Standard Peristaltic Pump | OEM Peristaltic Pump |
| Size & Design | Fixed structure | Fully customizable layout |
| Flow Range | Limited options | Tailored to application |
| Material | Generic | Based on fluid compatibility |
| Integration | External module | Built into customer system |
| Branding | Neutral | Customer-branded |
By aligning pump design with product vision, OEM customization becomes a key advantage in both engineering efficiency and market competitiveness.
The OEM Customization Process: From Concept to Complete Solution
Customization is no longer a “special requirement” but a “standard capability” for equipment innovation. Where each device requires its own unique fluid control solution, OEM peristaltic pumps are being redefined from “component suppliers” to “the core engine of customized fluid control solutions”.
Creating a custom peristaltic pump is not just a matter of tweaking some parameters; it’s a methodical engineering procedure that requires teamwork and performance optimization. Below is how high-end OEM peristaltic pump manufacturers tackle each project:
Step 1: Requirements Analysis
The procedure will start discussing the application requirements in detail:
- Target flow range and pressure
- Fluid types (viscous fluids, corrosive fluids, biological fluids, etc.)
- Working conditions (temperature, humidity, vibration)
- Electrical interfaces and control methods
- Installation space and connection type
Being familiar with these factors can make it possible to design the pump to suit the actual operating conditions.
Step 2: Design and Engineering
Our engineering and design team will then create a customized pump solution and select:
- Suitable motors (DC motors, stepper motors or brush motors)
- Pump head shape
- Pump pipe specification and diameter
- Drive mechanism and control circuit
Mechanical and electric designs are prepared simultaneously to guarantee precise integration into the customer system design.
Step 3: Prototype Development and Testing
After the production of the prototype is complete, we will be conducting rigorous performance, durability and compatibility tests on it. Test material includes flow accuracy testing, life simulation and measurement of resistance of materials. We want to obtain all aspects flawless before mass production.
Step 4: Manufacturing and Integration
Upon approval, we will start mass production with rigorous quality control. OEM labels, documents and packaging may be customized to fit customers’ brand or regulatory requirements. Our production system can ensure consistent quality for mass production OEM projects.
Step 5: Optimization and after-sales support
Once the components are integrated, we will provide ongoing technical support to ensure the pump works consistently in the final application. We can enhance and modify the design based on user feedback or fluctuating industry demands.
The analytical process transforms the initial concept of fluid transfer into a fully optimized OEM peristaltic pump solution with an aim of providing high accuracy, high reliability and long-term operation.
Solving Complex Fluid Control Challenges with Custom Solutions
Custom OEM peristaltic pumps are the “secret weapon” of mission-critical applications where failure is not an option. Their ability to offer non-contact high-precision pumping in a modular package solves particular challenges in many industries:
Case Study 1: High-Throughput Diagnostic Analyzers (Biotech/Pharma)
Challenge: An automated blood analyzer requires extremely precise, rapid micro-dosing of reagents (as little as a few microliters) while handling multiple fluid channels simultaneously in a very tiny, temperature-controlled housing.
Custom Solution: OEM peristaltic pump suppliers provide single-motor, multi-channel pump heads controlled by software to drive high-resolution stepper motors. The pump is equipped with an on-board PCB and custom firmware to execute complex, timed dispensing routines directly from the analyzer’s main board, with high speed and accuracy with no cross-contamination.
Case Study 2: Industrial Inkjet Printing Systems (Printing)
Challenge: Industrial high-speed printers need to handle corrosive, high-viscosity specialty inks continuously with high flow rates and fast tubing change to prevent settling of pigment and maintenance downtime.
Custom Solution: A rugged, modular OEM peristaltic pump with a tool-free, quick-load pump head that’s easily accessible is produced. It includes specially chemically resistant tubing (often proprietary composite tubing materials) to convey the aggressive inks, and a brushless DC motor is incorporated for smooth, heavy-duty operation with minimal heat buildup.
Related Articles: How Peristaltic Ink Pumps Improve Printing Efficiency and Quality?
The Future of OEM Peristaltic Pump Design: Miniaturization and Intelligence
With the development of the industry, the demand for fluid control is also increasing day by day. The future of OEM peristaltic pump design is driven by three major trends:
Miniaturization

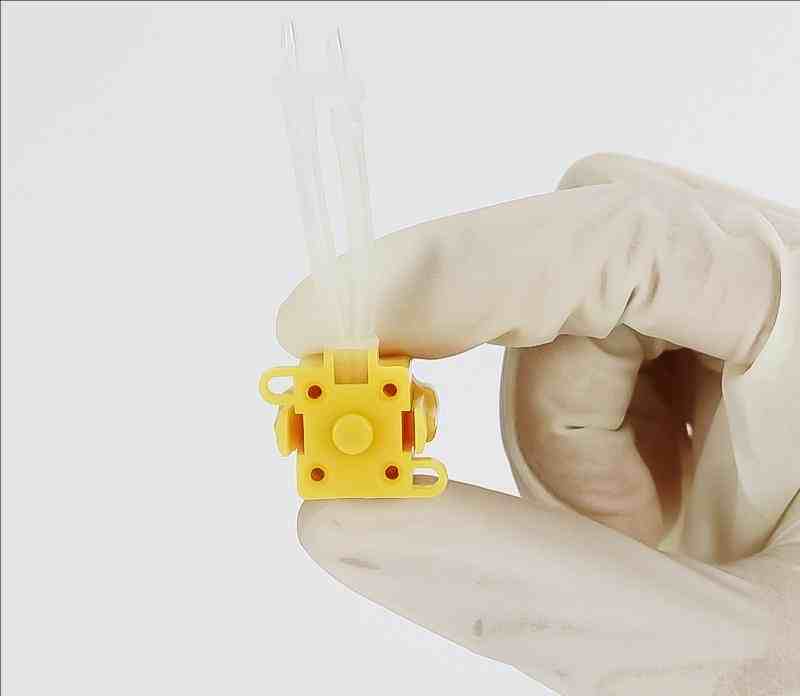

Modern devices require smaller components with higher performance density. Micro OEM peristaltic pumps are being developed for compact devices such as portable medical analyzers, coffee machines and wearable fluid delivery systems.
Intelligent control and connection
The integration of the Internet of Things and digital control systems are becoming the norm. The future OEM peristaltic pumps will have the following functions:
- Flow feedback sensor
- Digital speed regulation
- Cloud-based monitoring
This makes them not only mechanical equipment but also intelligent components of intelligent systems.
Sustainability and efficiency
Energy-saving motors, recyclable materials and longer pump tube life will define the next generation of OEM peristaltic pumps. Manufacturers are focusing on environmental innovation without compromising on precision and durability.
In the future, in the industrial sector, peristaltic pumps equipped with AI algorithms can predict the lifespan of hoses and automatically issue alarms. These trends are driving customization to a deeper dimension: intelligent adaptation (such as automatically switching operation modes based on fluid viscosity), energy recovery (braking energy recovery reduces energy consumption by 30%), and biocompatibility (the application of degradable hose materials in in vivo medical scenarios).
Customization Is the New Standard in Fluid Control
The era of universal fluid pumps is gone into history. With OEM peristaltic pumps, customization has become the new standard, driving innovation in every market where precision and reliability are all-important.
By collaborating in close alliance with equipment manufacturers, OEM peristaltic pump manufacturers are able to offer streamlined, application-oriented and efficient pumping solutions that are specifically tailored to meet the needs of systems. Whether it is reducing the size of the equipment, increasing flow accuracy, or integrating smart monitoring features, customization can enable your pump to coexist seamlessly with your design rather than hinder it.

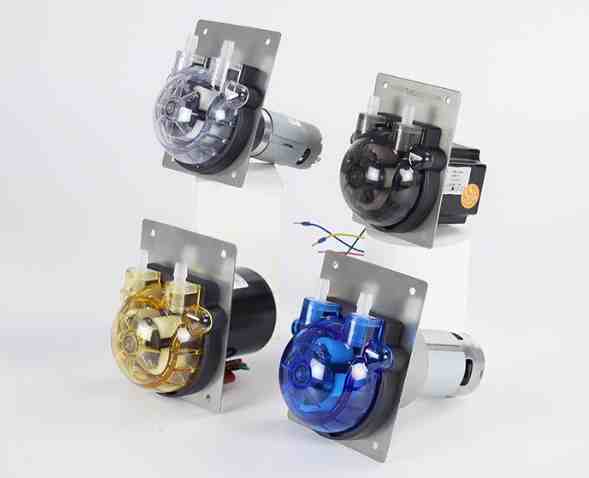

At JIHPUMP, we offer customized OEM peristaltic pump solutions, enabling engineers to reimagine the possibilities of fluid control. Flexibility and precision have been key to the fluid control sector forever.
