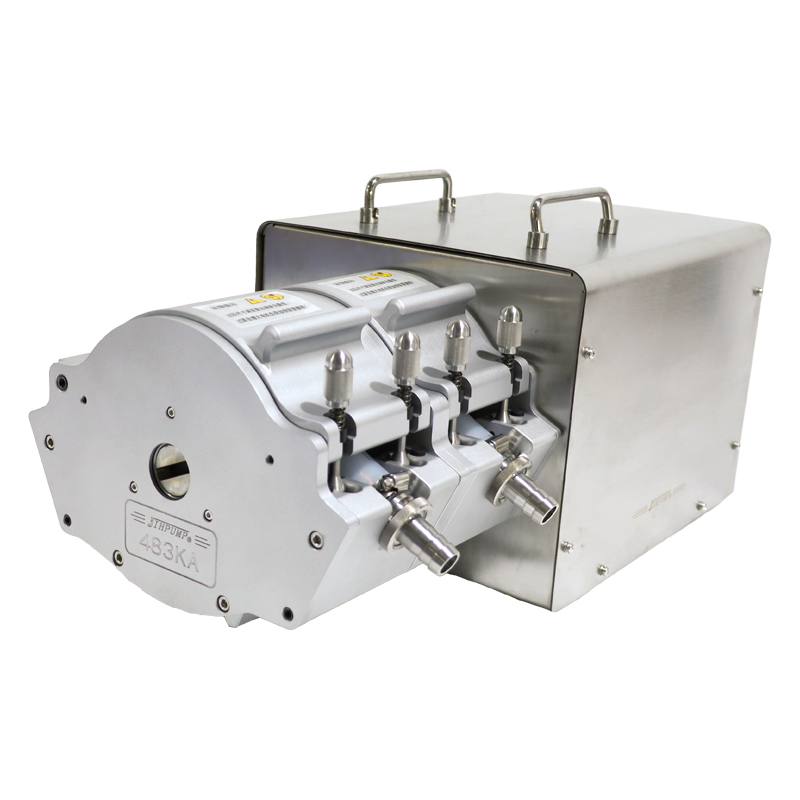

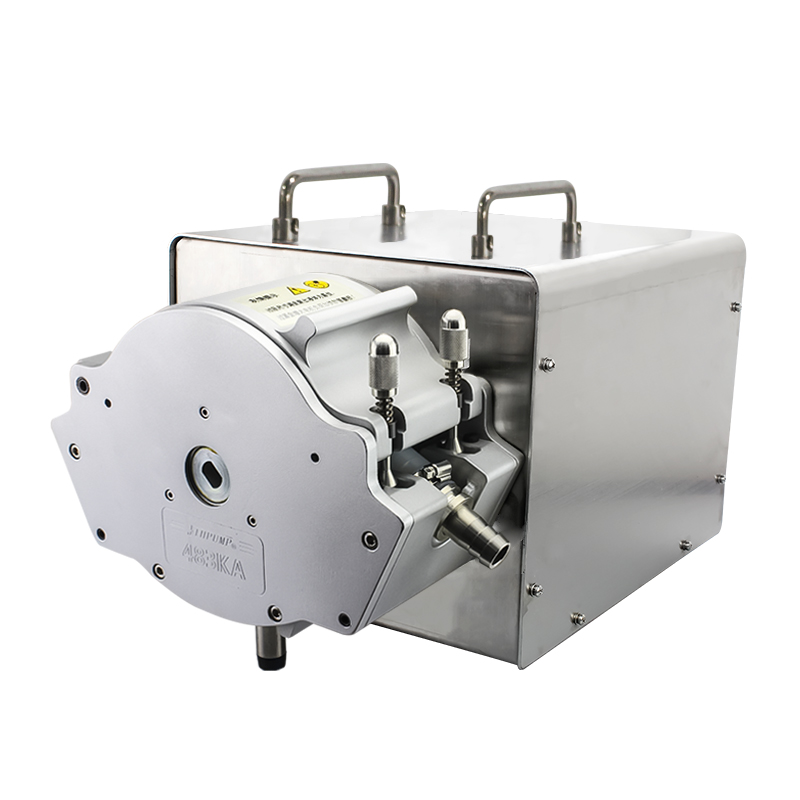

JL-300S/483KA Industrial Peristaltic Pumps
- Models: JL-300S/483KA
- Maximum channel quantity: 2
- Reference flow rate: ≤36L/min
■ Aluminum alloy pump body is precision CNC machined with a standard stainless steel pagoda joint and 304 stainless steel roller assembly;
■ The pump features a hinged adaptive spring pressure block adjustment mechanism, which can be manually adjusted and is particularly effective for transporting viscous particulate fluids;
■ Single pump head max flow rate 36L/min; dual pump heads in series, dual flow rate capacity;
■ The low-noise AC gear reduction motor can realize the rotation change and start-stop function through the AC reversing switch;
■ The inverter can be configured to realize speed and flow adjustment, and at the same time realize online control with PLC, industrial computer and computer.
JL-300S/483K industrial peristaltic pump features a high-precision CNC-processed aluminum alloy body, complemented by a stainless steel tower connector and a 304 stainless steel roller assembly for enhanced durability and stability. Its unique hinge-type adaptive spring clamp mechanism allows for both automatic and manual adjustments, making it ideal for transporting viscous and particulate fluids.
With a maximum single-head flow rate of 36 L/min and the capability to double the flow when using two pump heads in series, it meets higher flow demands. The low-noise AC gear reduction motor with an AC reversing switch facilitates easy directional changes and start-stop operations. Additionally, this pump can be equipped with a frequency converter for speed and flow regulation, enabling online control with PLCs, industrial computers, and computers, catering to various industrial applications.

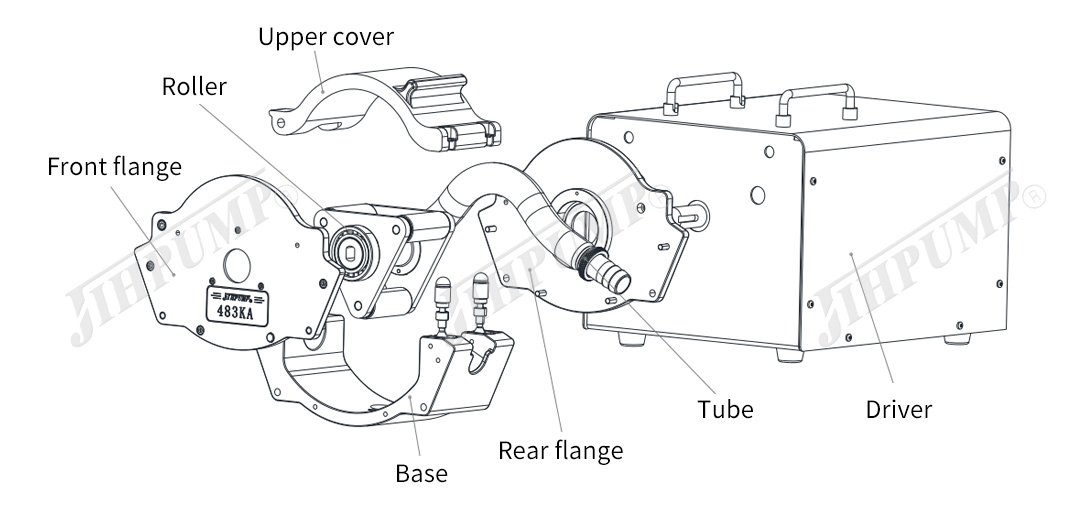

Product Configuration
Product Parameters
| Product Parameters | |
| Product Model | JL-300S/483K |
| Speed Range | 30～300rpm |
| Outlet Pressure | ≤0.27MPa |
| Voltage | AC 220V/380V，50Hz |
| Power | ≤400W |
| Work Environment | Temperature: 0~60℃, Humidity: ＜85%RH |
| Motor Type | AC gear motor |
| Motor Life | 6000~20000 hours |
| Weight | 36KG(Double pump head 44.5KG) |
| IP Grade | IP31 |
Reference Flow Rate
| Reference Flow Rate（unit: L/min） | ||
| Motor Speed/Tube Type | Silicone tube | |
| 90#（ID19*δ6.3） | 92#（ID25.4*δ4.8） | |
| 300rpm | 28 | 36 |
Typical Applications
Biopharmaceuticals, Chemical industry, environmental protection, juice beverage and dairy industry, printing ink

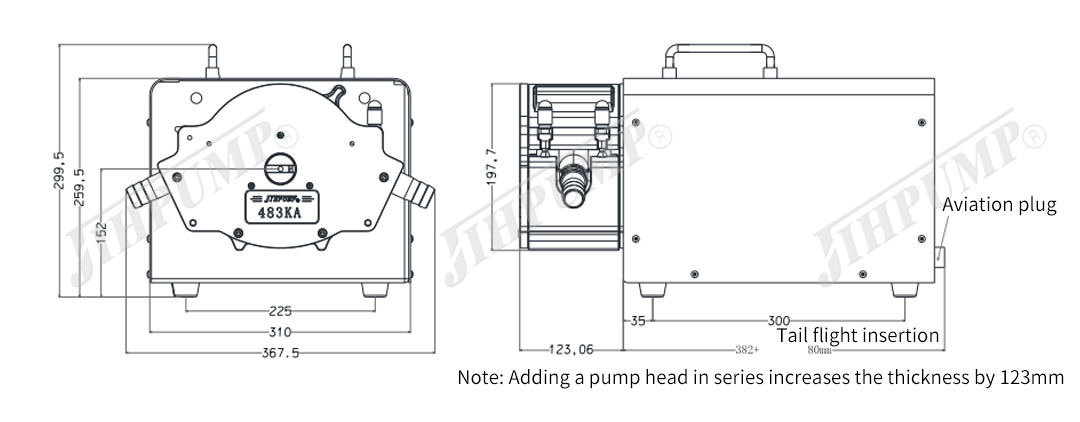

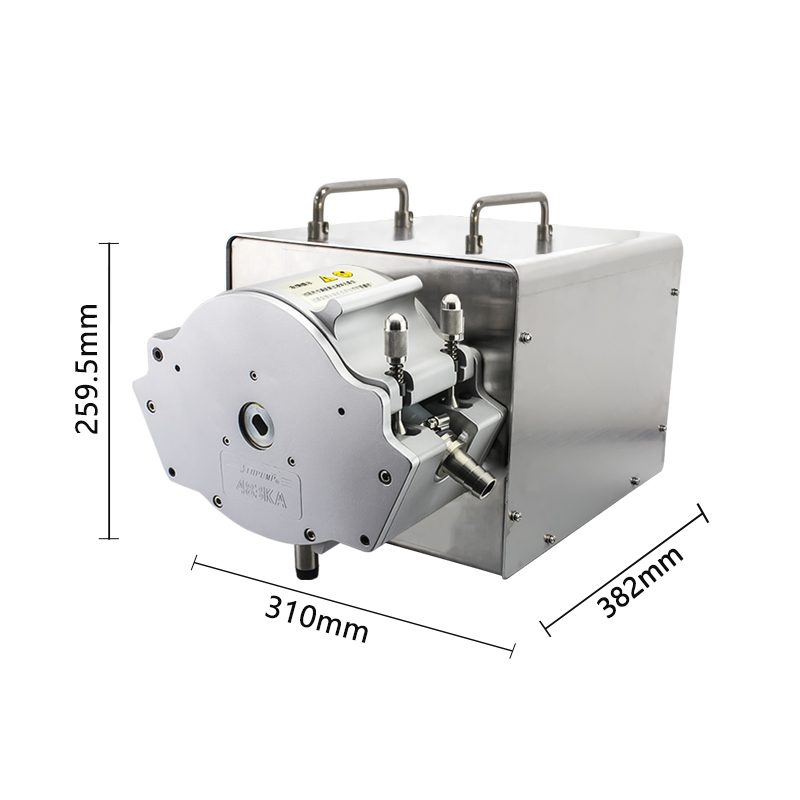

Overall Dimension
