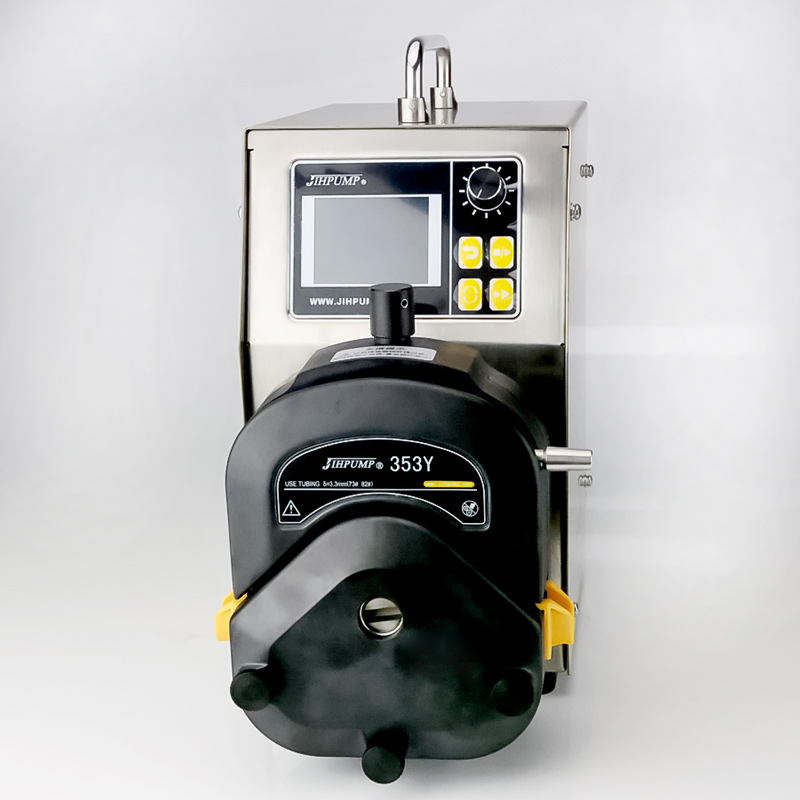

WT-600CAS/353Y Industrial Peristaltic Pumps
- Models: WT-600CAS/353Y

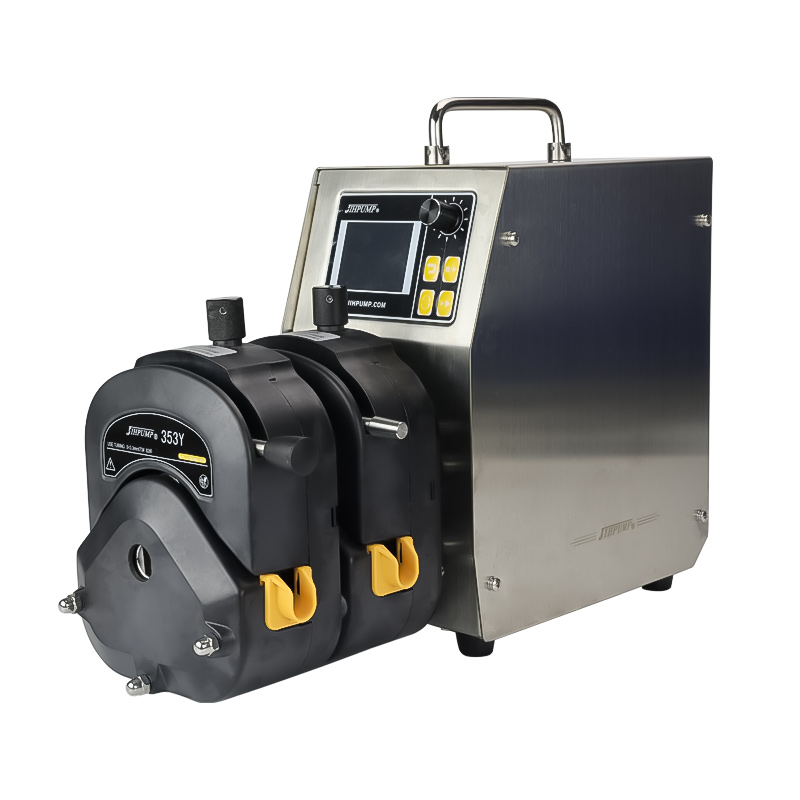

- Maximum channel quantity: 2
- Reference flow rate:≤13.2L/min
■ Large-screen true color LCD graphic display, drivern by brushless motor with strong power;
■ Features include flow regulation, timing control, and filling capabilities.
■ Supports automatic footswitch recognition, automatic filling, and infrared detection features.
■ External control options, including 05V, 010V, 4~20mA, and MODBUS, allow precise control of the pump’s start, stop, reverse rotation, and speed.
■ Rotary code switch and touch keypad enable easy control of start, stop, and reverse rotation.
■ Compatible with 353Yx peristaltic pump head, made of special engineering plastic pump body can withstand strong corrosion.
WT-600CAS/353Y industrial peristaltic pump combines powerful performance with intelligent control, featuring a large color LCD display for real-time monitoring. Its functions include flow regulation, timing, filling, and automatic recognition of foot switches and infrared filling for simple and convenient operation.
Users can easily control start, stop, and reverse functions through a rotary encoder switch and touch buttons, with support for various external control methods for precise speed adjustment. It is compatible with the 353Yx pump head and is made from special engineering plastics that resist strong corrosion, ensuring stable operation in harsh environments, making it an ideal choice for industrial fluid transport.
Product Configuration
Product Parameters
| Product Parameters | |
| Product Model | WT-600CAS/353Y |
| Speed Range | 30～600rpm |
| Speed Resolution | 1rpm |
| Outlet Pressure | ≤0.17MPa |
| Control Model | Membrane key + coding switch |
| Major Function | Manual control, automatic, appointment timing, filling, external control |
| External Control Mode | 0～5V、0～10V、4～20mA、 ModBus Communication protocol |
| Display | LCD |
| Voltage | AC 100～240V，50/60Hz,3.0A |
| Power | ≤200W |
| Work Environment | Temperature: 0~60℃, Humidity: ＜85%RH |
| Motor Type | Brushless DC reduction motor |
| Motor Life | 6000~20000 hours |

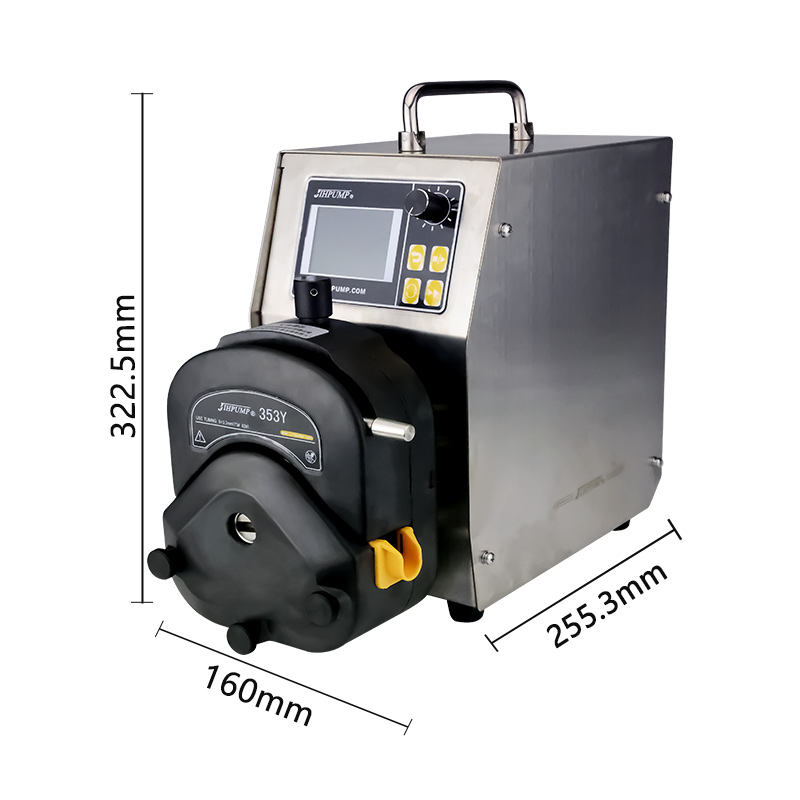

| Drive Size | L240*W160*H322.5mm |
| Drive Weight | 8KG |
| IP Grade | IP31 |
Reference Flow Rate
| Reference Flow of Single Pump Head (unit: ml/min) | ||||
| Motor Speed/Tube Type | Silicone tube | A-60-F tube | ||
| 73# (ID9.6*OD16.2) | 82# (ID12.7*OD19.3) | 73# (ID9.6*OD14.4) | 82# (ID12.7*OD19.3) | |
| 600rpm | 8 | 13.2 | 7.8 | 11.8 |
| Pump Head qty | ≤2 | 1 | ||
| Flow Description | 1. The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water. 2. The total flow of pump heads ≈ single pump head flow * number of pump heads. | |||
Typical Applications
Biopharmaceuticals, experimental research, industrial production, chemical additives

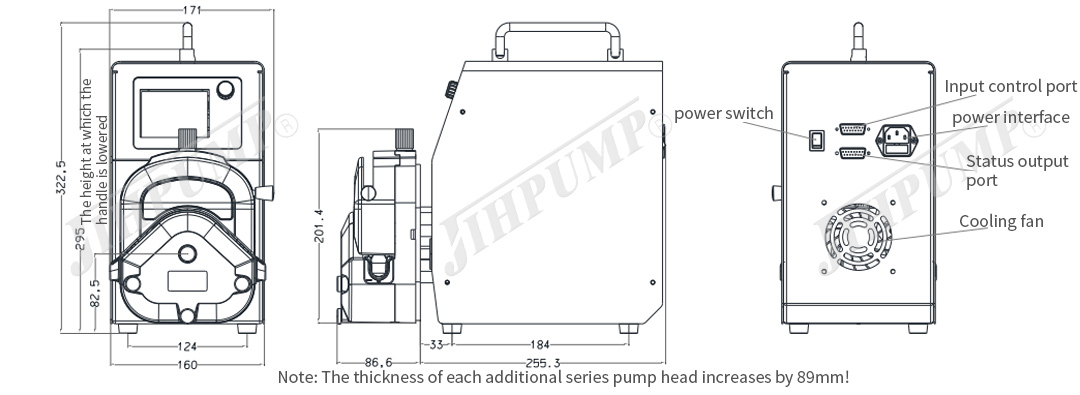

Overall Dimension
