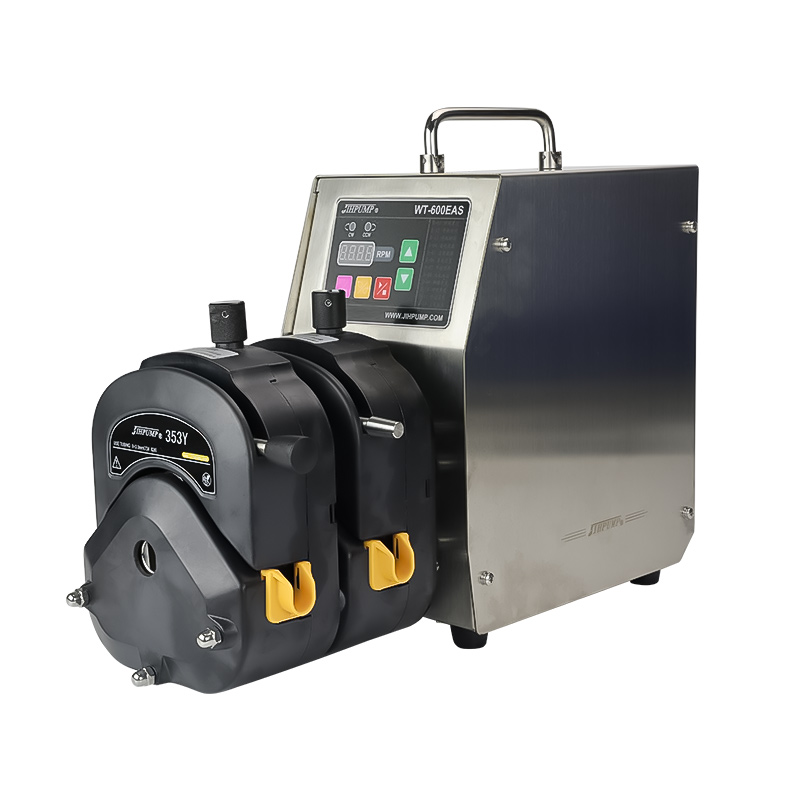

wt-600eas-353y industrial peristaltic pump

WT-600EAS/353Y Industrial Peristaltic Pumps

Models: WT-600EAS/353Y
Maximum channel quantity: 2
Reference flow rate: ≤13.2L/min

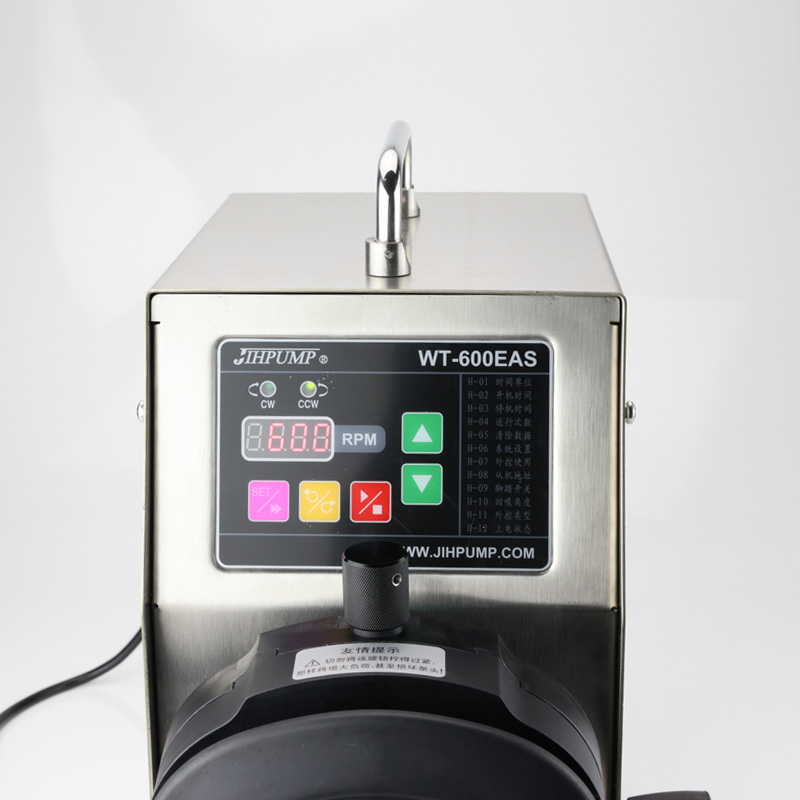

■ Four digital tube LED display instant speed;
■ Offers functions such as flow control, timed operation, and filling options.
■ Includes automatic footswitch detection, along with auto-filling and infrared sensing capabilities.
■ The pump supports external control methods like 05V, 010V, 4~20mA, and MODBUS for starting, stopping, reversing, and speed adjustment.
■ Control start, stop, and reverse rotation with the rotary code switch and touch-sensitive keypad.
■ Avaliable for 353Yx peristaltic pump heads, the pump body is made from special engineering plastics, offering high resistance to corrosion.

Product Description
Product Video
Related Downloads

WT-600EAS/353Y industrial peristaltic pump combines powerful performance with intelligent features, featuring a four-digit LED display for real-time monitoring of instantaneous speed. It offers functions such as flow regulation, timing, and filling, and can automatically recognize foot switches for both automatic and infrared filling, simplifying operation.

Users can easily control speed, rotation, and start/stop functions through a membrane keypad. Additionally, it supports various external control methods, including 05V, 010V, 4~20mA, and MODBUS. With excellent corrosion resistance and compatibility with the 353Yx pump head, WT-600EAS/353Y is designed for efficient and stable operation in harsh industrial environments.

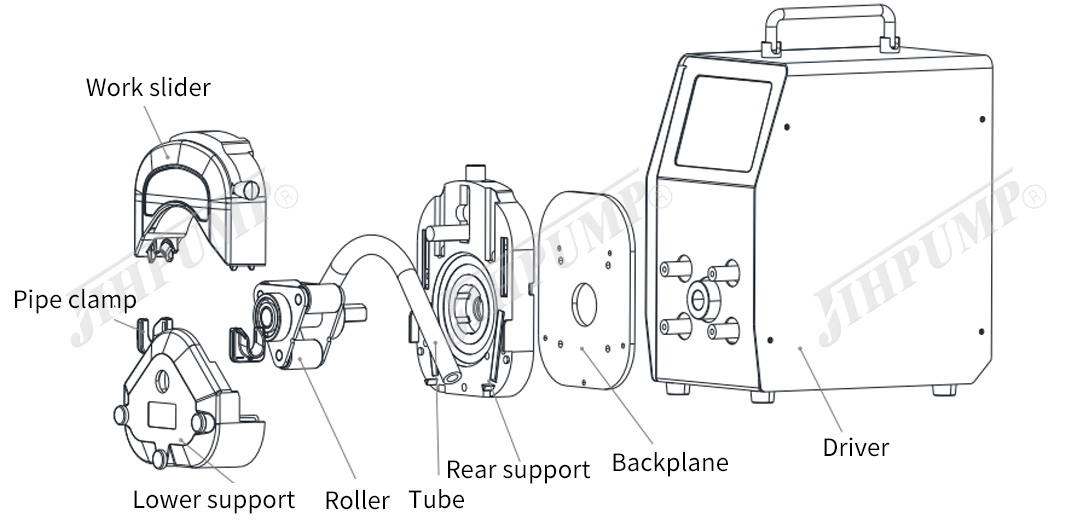

Product Configuration

Product Parameters

Product Parameters
Product Model	WT-600EAS/353Y
Speed Range	30～600rpm
Speed Resolution	1rpm
Outlet Pressure	≤0.17MPa
Control Model	Membrane key
Major Function	Manual control, automatic, appointment timing, filling, external control
External Control Mode	0～5V、0～10V、4～20mA、 ModBus Communication protocol
Display	LED
Voltage	AC 100～240V，50/60Hz，3.0A
Power	≤200W
Work Environment	Temperature 0 ~ 60 ℃, relative humidity ＜ 85%RH
Motor Type	Brushless DC reduction motor
Motor Life	6000~20000 hours

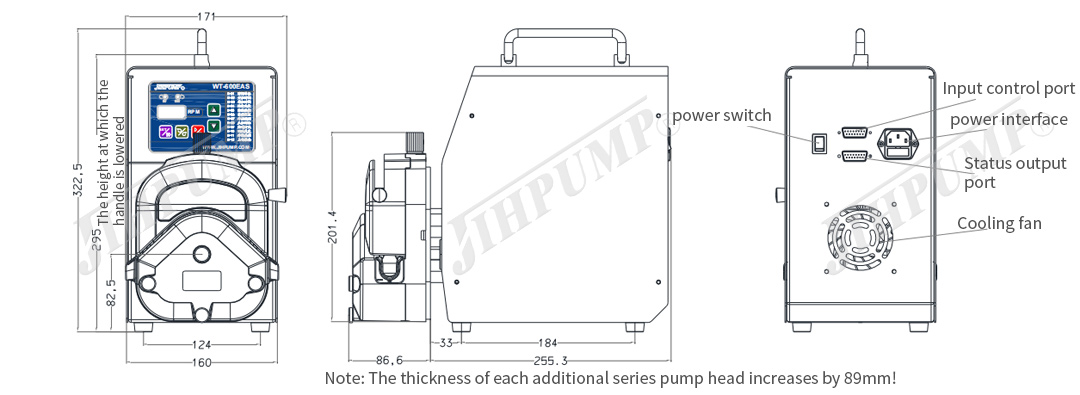

Drive Size	L240W160H332.5mm
Drive Weight	8KG
IP Grade	IP31

Reference Flow Rate

Reference Flow of Single Pump Head (unit: ml/min)
Motor Speed/Tube Type	Silicone tube		A-60-F tube
	73# (ID9.6*OD16.2)	82# (ID12.7*OD19.3)	73# (ID9.6*OD14.4)	82# (ID12.7*OD19.3)
600rpm	8	13.2	7.8	11.8
Pump Head qty	≤2		1
Flow Description	1. The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water. 2. The total flow of pump heads ≈ single pump head flow * number of pump heads.
