WT-300CAS/483KA Industrial Peristaltic Pumps
- Models: WT-300CAS/483KA
- Maximum channel quantity: 1
- Reference flow rate: ≤36L/min

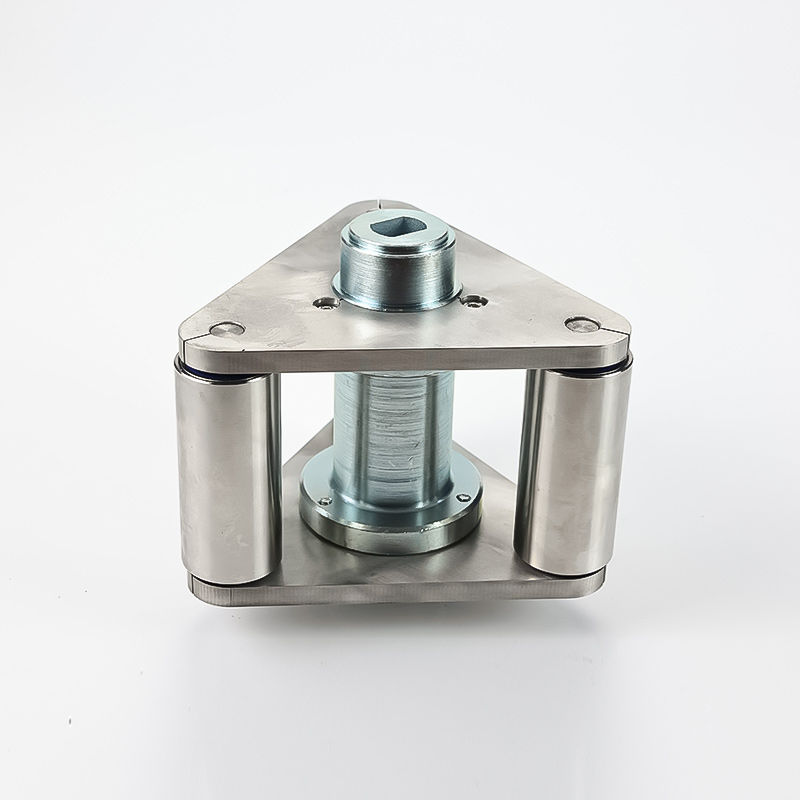

■ High-precision CNC machining of aluminum alloy pump body, standard stainless steel pagoda joint, 304 stainless steel roller assembly;
■ Hinged adaptive spring pressure block adjustment mechanism (can also be manually adjusted), especially suitable for viscous particulate fluid delivery;
■ Integrated design of pump head and drive control, the whole machine does not need to be installed and debugged, it can be used by plugging in 220V power supply;
■ Adopting true color LCD operation display, membrane keys with rotary coding switch；
■ Main Functions: Flow transferring, timing, filling &Dispensing( Infrared induction bottle stop filling);
■ External control function: foot switch, infrared switch, analog signal, RS485 communication protocol.
WT-300CAS/483KA industrial peristaltic pump features a high-precision CNC-machined aluminum alloy body, equipped with a stainless steel bell-shaped connector and a 304 stainless steel roller assembly for durability. Its hinge-style adaptive spring clamp makes it easy to adjust manually or automatically, making it ideal for handling viscous or particulate fluids.
Its pump head and drive control are integrated for simple plug-and-play operation with a 220V power supply. A vivid color LCD and a membrane keypad with a rotary encoder provide user-friendly controls. Key functions include flow transfer, timing, filling, and infrared bottle neck stopping. It also supports external controls such as foot switches, infrared switches, analog signals, and RS485 communication protocols.

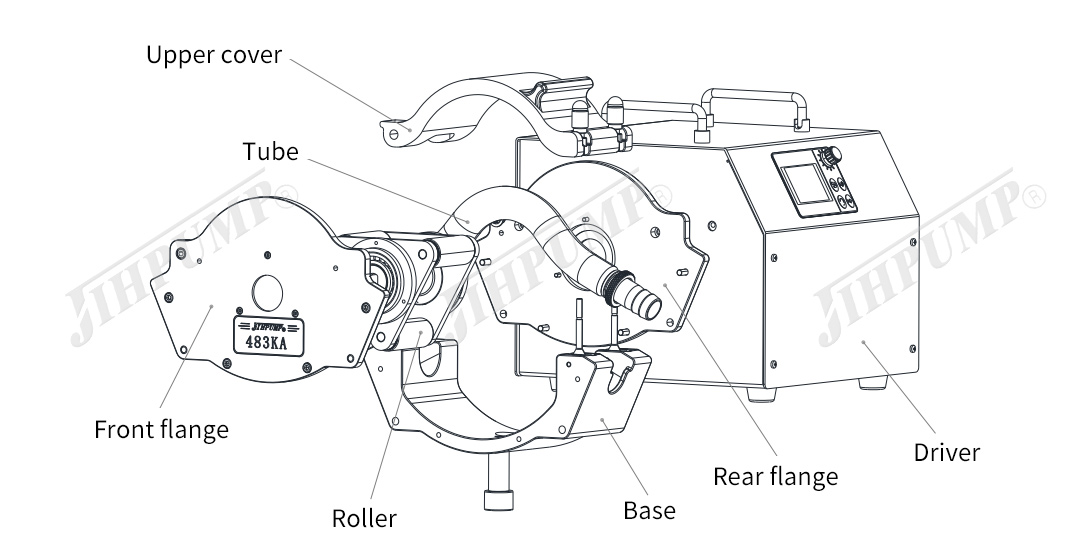

Product Configuration
Product Parameters
| Product Parameters | |
| Product Model | WT-300CAS/483KA |
| Speed Range | 15～300rpm |
| Speed Resolution | 1rpm |
| Outlet Pressure | ≤0.27MPa |
| Control Model | Membrane key + coding switch |
| Major Function | Manual control, automatic, appointment timing, filling, external control |
| External Control Mode | 0～5V、0～10V、4～20mA、 ModBus Communication protocol |
| Display | LCD |
| Voltage | AC 100～240V，50/60Hz，4.0A |
| Power | ≤350W |
| Work Environment | Temperature: 0~60℃, Humidity: ＜85%RH |
| Motor Type | Brushless DC reduction motor |
| Motor Life | 6000~20000 hours |
| Drive Weight | 32KG |
| IP Grade | IP31 |
Reference Flow Rate
| Reference Flow Rate（unit: ml/min） | ||
| Motor Speed/Tube Type | Silicone tube | |
| 90#（ID19*δ6.3） | 92#（ID25.4*δ4.8） | |
| 300rpm | 28 | 36 |
Typical Applications
Biopharmaceuticals, Chemical industry, environmental protection, juice beverage and dairy industry, printing ink

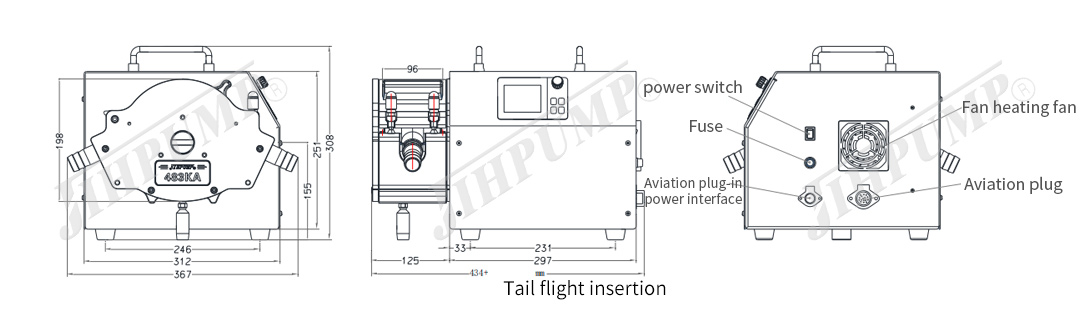

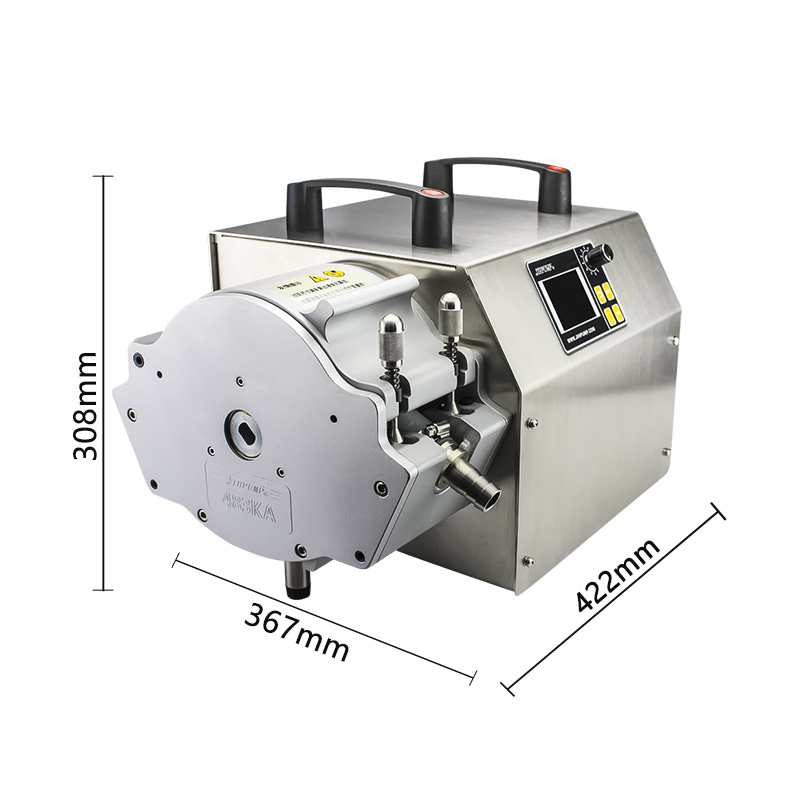

Overall Dimension
