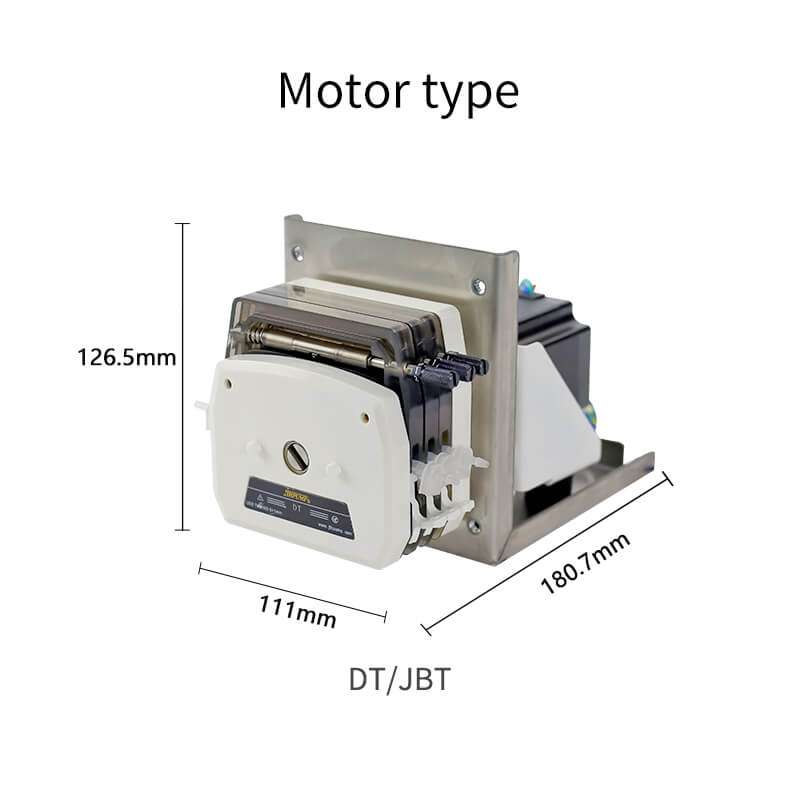

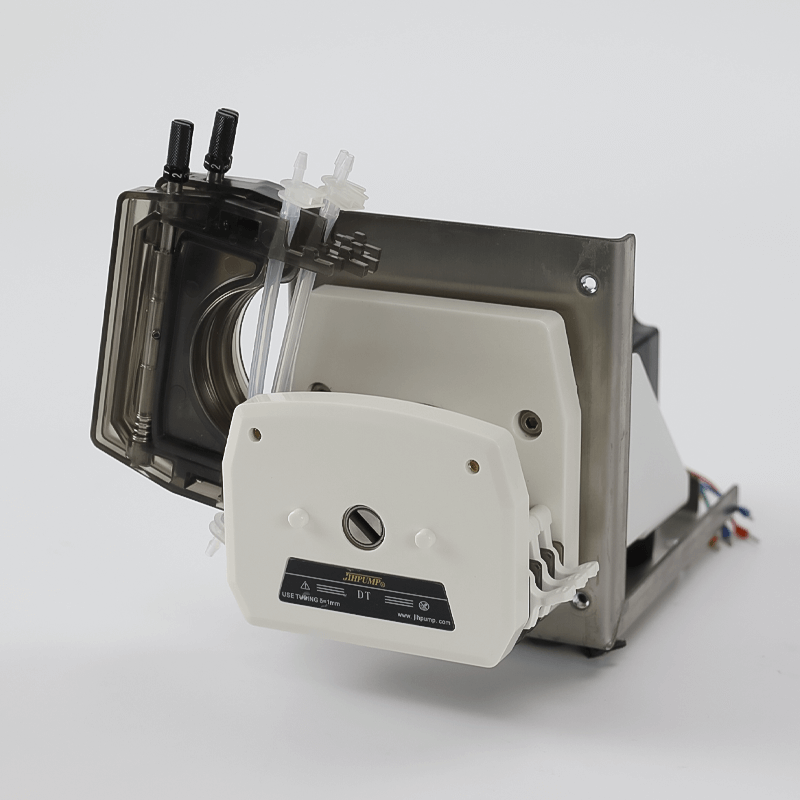

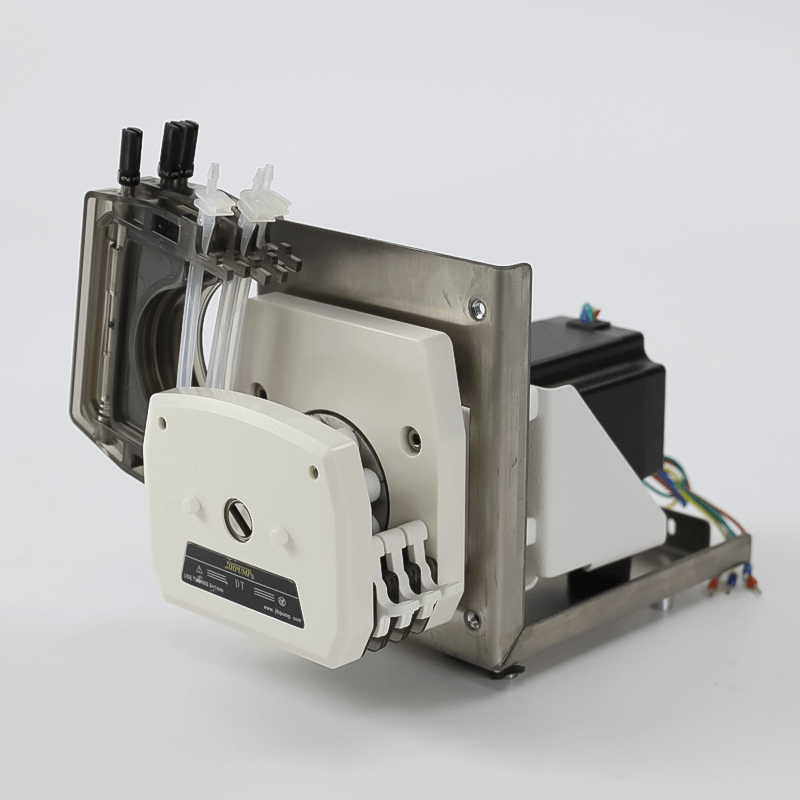

DT/JBT Easy Mounting Bracket OEM Peristaltic Pumps
- Models: DT/JBT
- Maximum channel quantity: 12
- Reference flow rate: ≤55ml/min(Reference Flow of Single Channel）
■ Easy-to-install peristaltic pump head, easy to disassemble and install tubes
■ The pump head can be installed with 1×1, 2×1, 3×1 and other tubes with a wall thickness of 1mm
■ Can be adapted to various drives such as stepper motors, DC geared motors, AC motors, etc.
■ Stepper motors have three types of drivers to choose from: JBT-BM voltage type, JBT-BT communication type, and QBT-M1 pulse type
■ DT pump head has 2/3/4/6 multi-channel options, or 2 pump heads can be connected in series
DT/JBT Easy Mounting Bracket OEM peristaltic pump is designed for easy installation, making it quick and convenient to replace tubes, reducing maintenance time and effort. The pump head can support various tubing sizes with a wall thickness of 1mm, such as 1×1, 2×1, and 3×1, providing great versatility to meet different fluid transfer needs. This peristaltic pump is compatible with various drive systems, including stepper motors, DC gear motors, and AC motors, offering flexible power options. The DT series pump heads offer multiple options and can be connected in series with two pump heads to achieve higher flow rates and efficiency, making it suitable for complex fluid transfer applications.

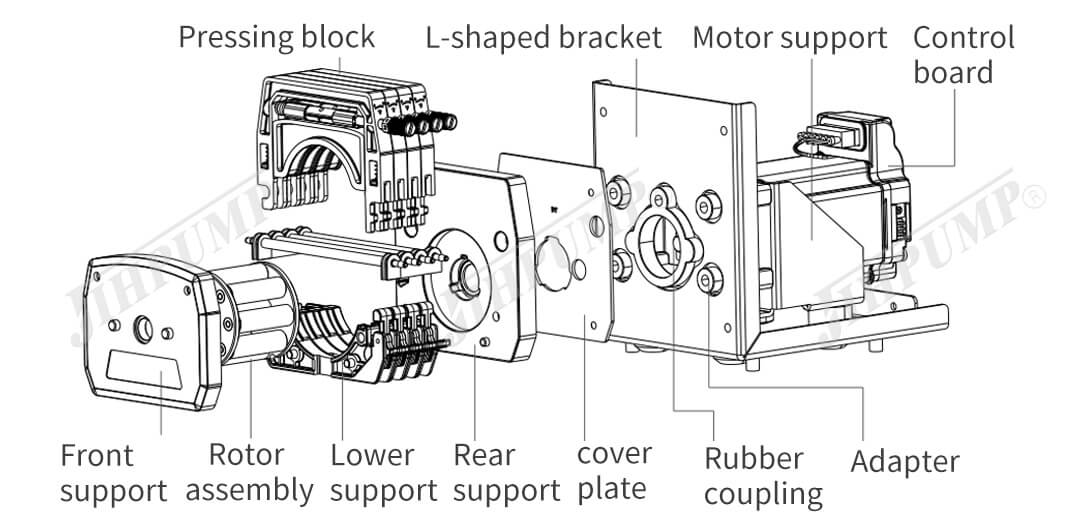

Product Configuration
Product Parameters
| Product Parameters | |
| Product Name | Bracket Peristaltic Pumps |
| Product Model | DT/JBT |
| Voltage | DC 24V，3A |
| Power | ≤36W |
| Drive | 57 type stepper motor drive |
| Work Environment | Temperature 0 (no icing)～60℃, relative humidity≤85% |
| Weight | 1950g（DT4） |
| Outlet Pressure | ≤0.10MPa |
| Noise | ≤60dB（testing environment noise≤40dB. The horizontal distance between the test product and the noise meter is 1 meter.） |
| Speed Range | ≤150rpm/min |
| Function | Start/stop, cw/ccw rotation, up/down speed |
Reference Flow Rate
| Reference Flow of Single Channel (unit: ml/min) | ||||||
| Motor Speed/Tube Type | Silicone tube | Silicone tube | ||||
| 1*1 (ID1*OD3) | 2*1 (ID2*OD4) | 3*1 (ID3*OD5) | 1*1 (ID1*OD3) | 2*1 (ID2*OD4) | 3*1 (ID3*OD5) | |
| 150rpm | 10 | 30 | 50 | 9.5 | 30 | 55 |
| Number of Channels | ≤12 | ≤12 | ≤12 | ≤8 | ≤8 | ≤6 |
| Flow Description | 1. The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water. 2. The total flow of multiple channels ≈ single channel flow * number of channels | |||||
Typical Applications
Analytical instruments, IVD filling, medical instruments, laboratories, grinders

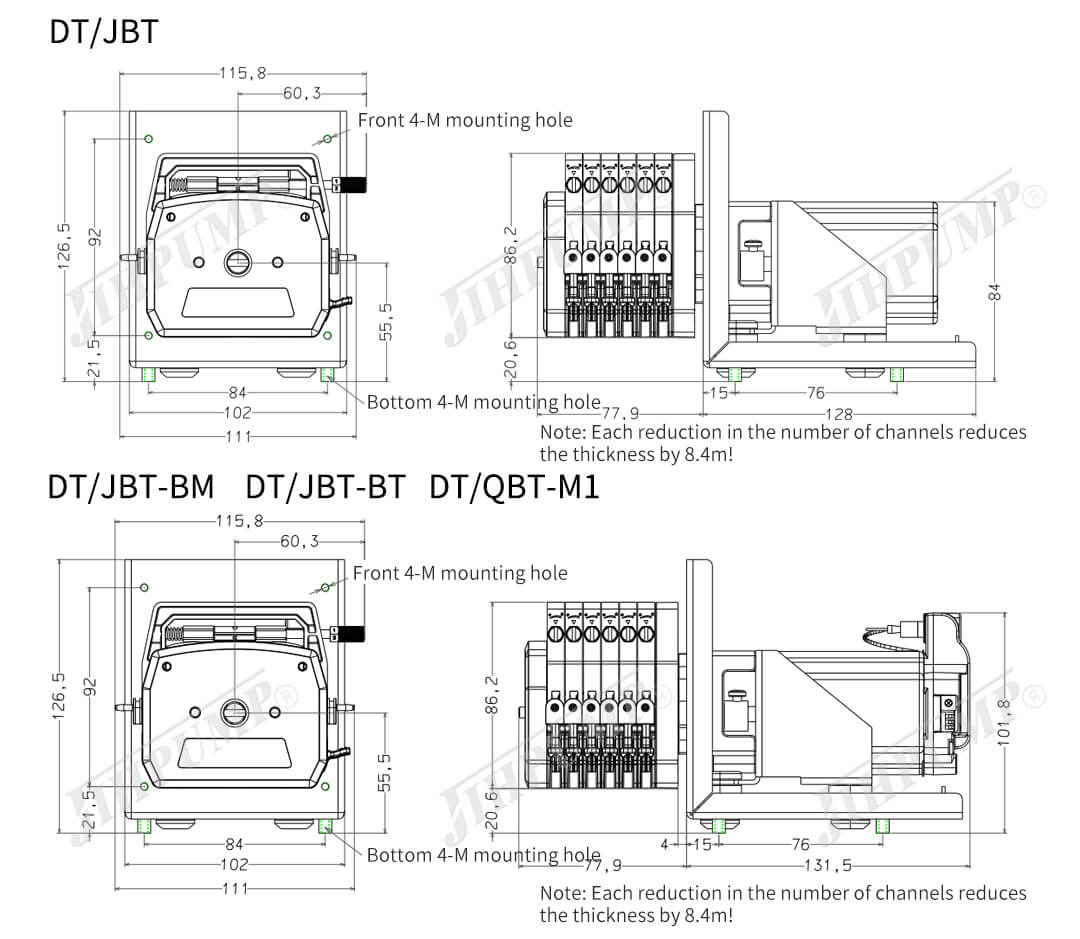

Overall Dimension
