304KB Quick Mounting Panel OEM Peristaltic Pumps

  • Models: 304KB
  • Maximum channel quantity: 1
  • Reference flow rate: ≤3250ml/min

■ OEM peristaltic pump with small volume and large flow rate;
■ Three types of hoses are available, which can be installed with 24#, 35#, and 36# peristaltic pump hoses;
■ Suitable for DC, DC planetary and stepper motors;

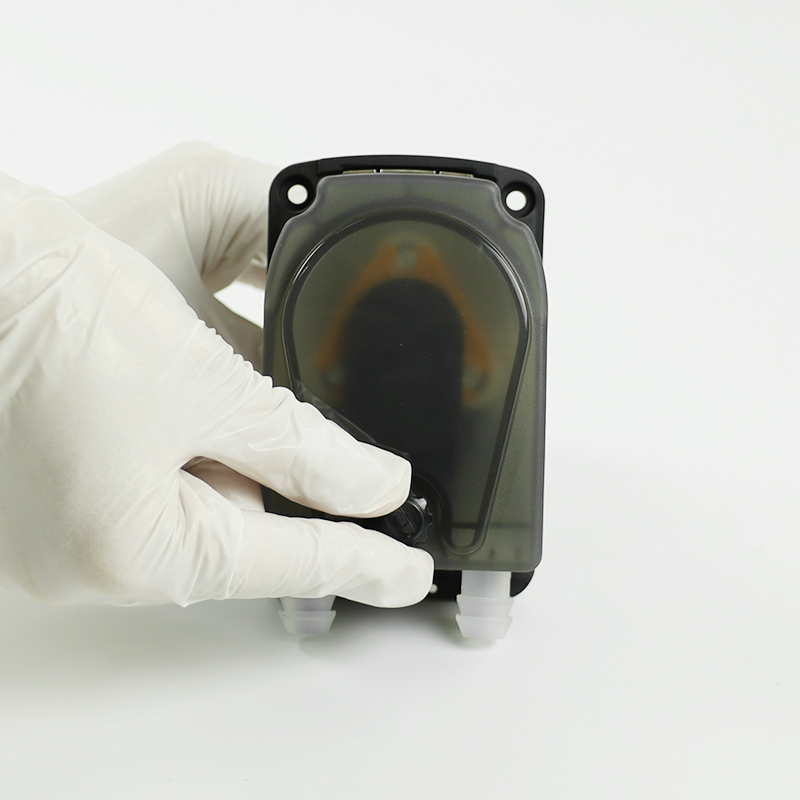

■ Tighten with hand screws, and replace the tube without tools;
■ The base has its own mounting hole, so no need to add a separate.

304KB Quick Mounting Panel OEM Peristaltic Pump is a compact yet powerful solution designed for high flow rates while maintaining a small footprint. This versatile pump is compatible with three hose types – 24#, 35#, and 36# – allowing for seamless integration into various systems. This pump is designed to work with both DC, DC planetary and stepper motors, it offers flexibility for diverse applications. The user-friendly hand screw mechanism enables easy tightening and tool-free tube replacement, enhancing convenience during maintenance. Moreover, the built-in mounting holes in the base eliminate the need for a separate mounting panel, simplifying installation.

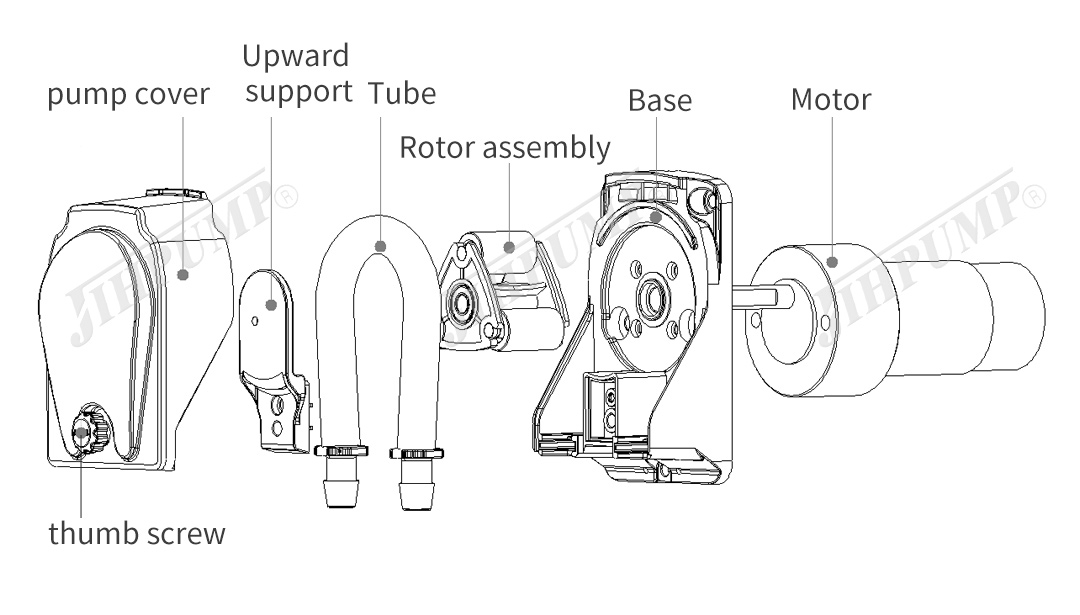

Product Configuration

Product Parameters

Product Parameters
Product Model304KB/ZL304KB/ZLX304KB/BT

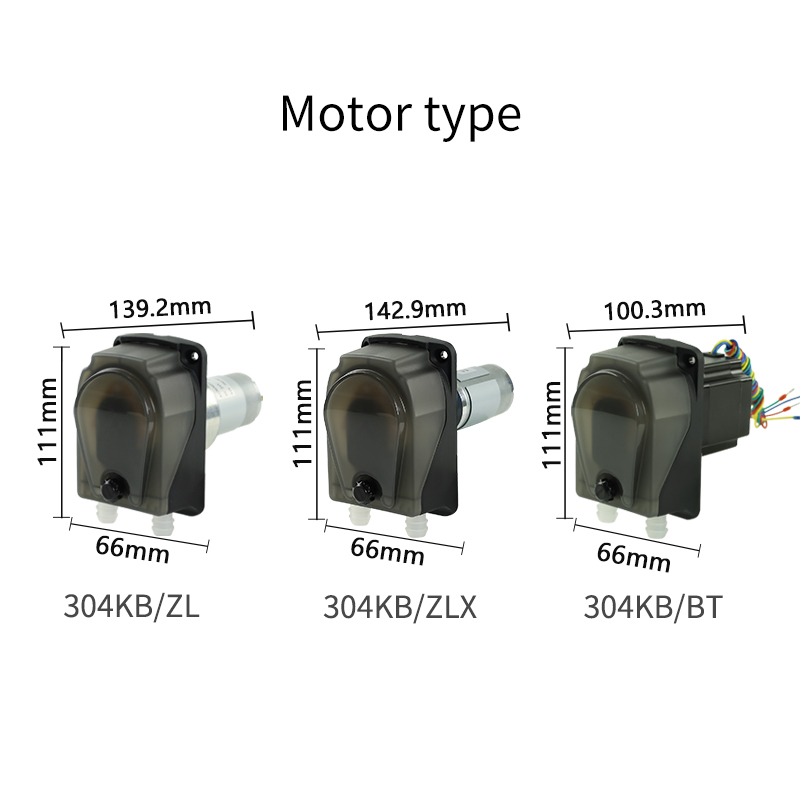

Motor typeDC gear motorDC planetary gear motorStepper motor
VoltageDC 24VDC24VDC 24V
Power≤15W20W～36W24W
Weight553g550g776g
Working Environmentemperature 0 (no icing) ~ 60℃, relative humidity≤85%RH
Outlet Pressure≤0.17MPa

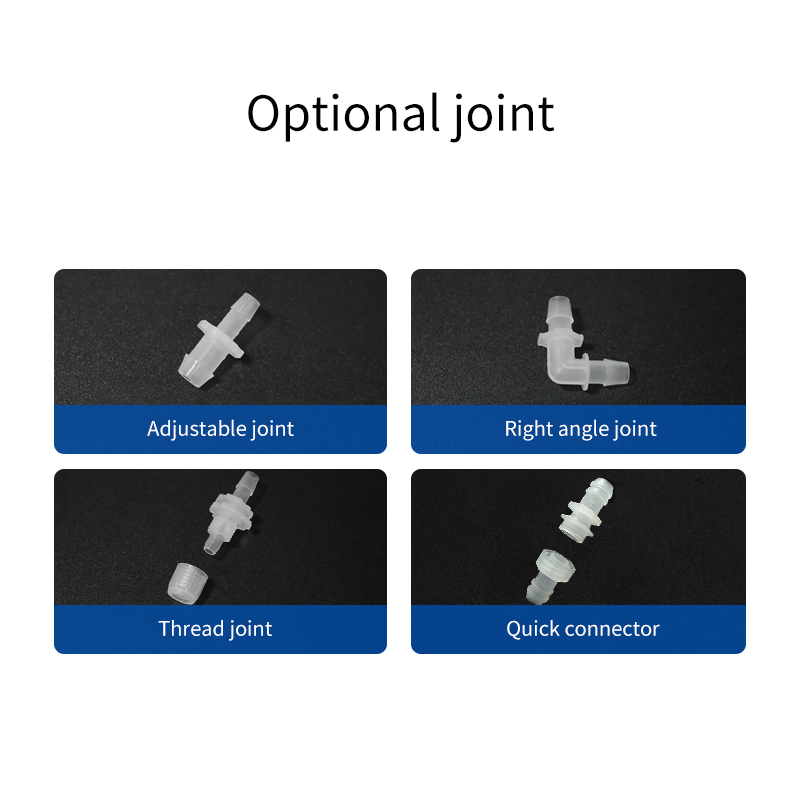

Tube Connection MethodStandard: Direct joint    Optional: Adjustable joint, Right angle joint, Thread joint, Quick connector
Noise≤63dB≤63dB≤53dB
(Testing environment noise≤40dB. The horizontal distance between the test product and the noise meter is 1 meter.）
FunctionStart/stop, cw/ccw rotation, up/down speed
Main MaterialPump cover: PP      Roller: POM    Base: PA

Reference Flow Rate

Reference Flow Rate (unit: ml/min)
Product Model304KB/ZL304KB/ZLX304KB/BT
Motor Speed/Tube Model172r338r526r570r300r
24# (ID6.4*OD11.250291214881700904
35# (ID7.9*OD12.7)7381310210625801305
36# (ID9.6*OD14.4)9001471259732501479
Flow DescriptionThe flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water.

Typical Applications

Milk tea machine, ice cream machine, coffee machine, beverage machine, soup machine, dairy product cleaning machine, water quality sampling equipment, protein analyzer.

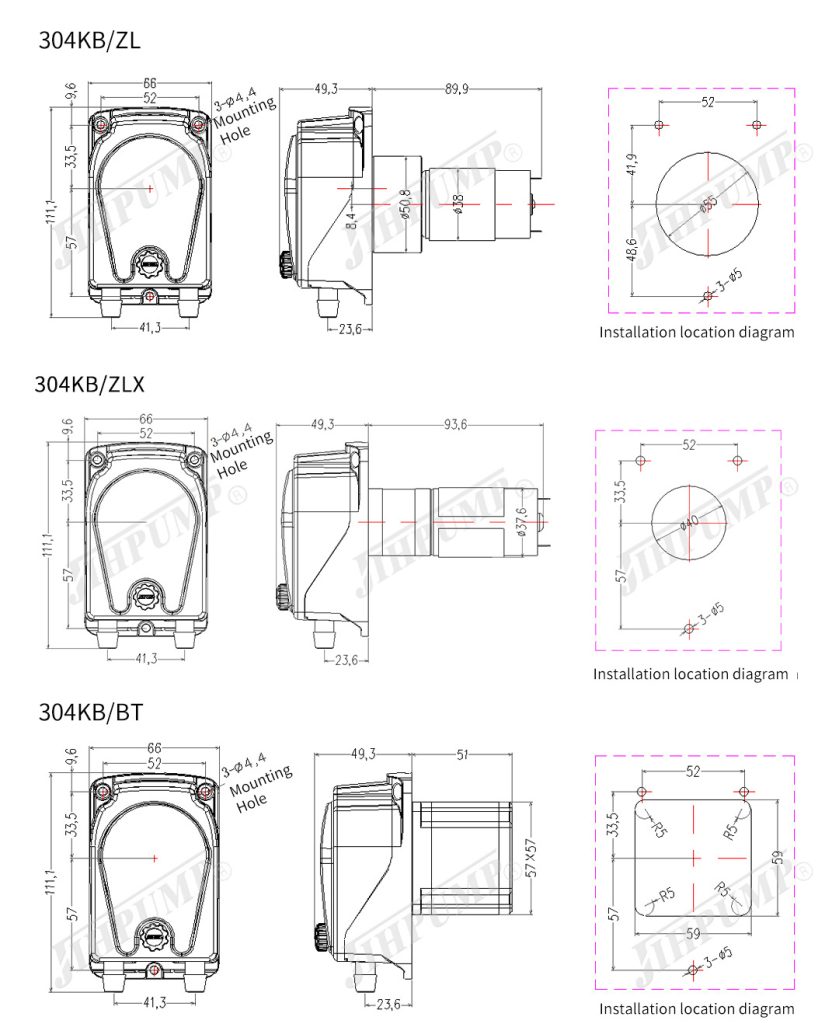

Overall Dimension
