803Z Straight Tubeline OEM Peristaltic Pumps
- Models: 803Z
- Maximum channel quantity: 1
- Reference flow rate: ≤5340ml/min
■ A new type of multi-purpose peristaltic pump, combined modular design can be used for U-shaped, L-shaped, linear tubes.
■ The unique adjustable pressing tube clearance mechanism can adapt to the fluctuation of the pump tube wall thickness and adjust the discharge pressure.
■ The rotary opening and closing handle and the sliding pressing tube structure design enable the tube to be easily assembled and disassembled.
■ It can be installed with a 3.3mm wall thickness tube for easy delivery of large flow viscous liquids.
■ Can adapt to a variety of drive motors such as ordinary DC, DC planetary motors.
■ The pump body base is designed with mounting holes, and the joints on both sides can be selected according to the customer’s piping requirements.
803Z Straight Tubeline OEM Peristaltic Pump is a versatile new linear peristaltic pump with a modular design that can support U-type, L-type, and straight tube configurations. Its unique adjustable pressure tube gap mechanism allows for variations in tube wall thickness, allowing it to adjust the discharge pressure. The rotary handle and sliding pressure tube structure make tube installation and removal more convenient. It supports 3.3mm wall thickness tubing, making it easy to transfer viscous liquids with high flow rates.

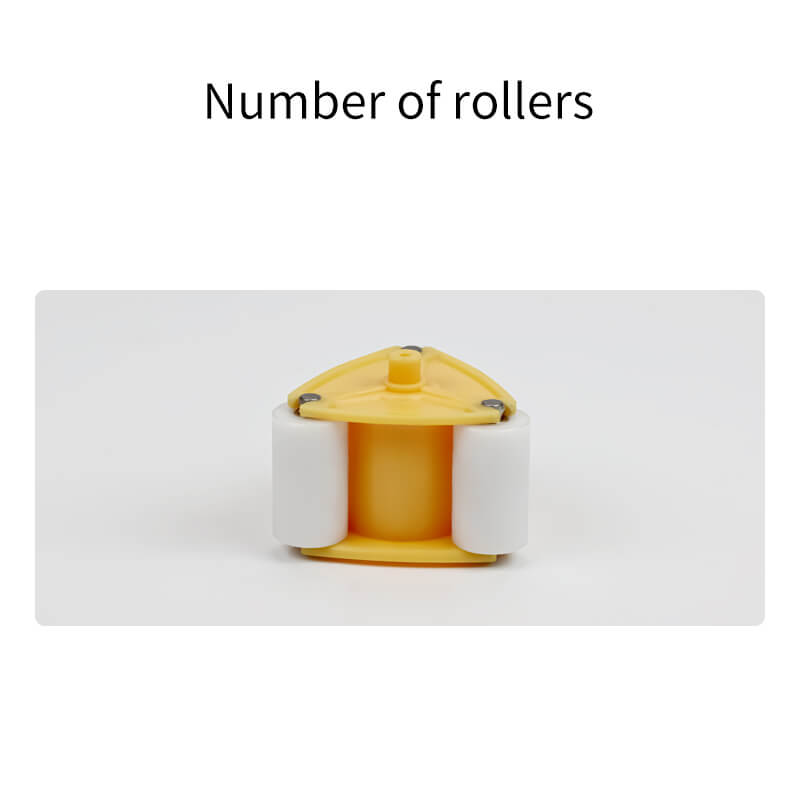

Product Configuration
Product Parameters
| Product Parameters | ||
| Product Model | 803Z/ZL | 803Z/BT |
| Motor Type | DC gear motor | Stepper motor |
| Voltage | DC 12V,4A/24V，2A | DC 24V/36V |
| Power | ≤48W | ≤36W |
| Weight | 920g | 1612g |
| Working Environment | Temperature 0 ~ 60℃, relative humidity < 85%RH | |
| Outlet Pressure | ≤0.17MPa | |
| Tube Connection Method | Standard: Direct joint Optional: Direct joint（PVDF）,Thread joint | |
| Noise | ≤72dB | |
| （Testing environment noise≤40dB. The horizontal distance between the test product and the noise meter is 1 meter.） | ||
| Function | Start/stop, cw/ccw rotation, up/down speed | |
| Tubeline | Standard：U shape Optional: L shape, straight | |
| Main Material | Upper support: PA Rear support: PA Rollers：POM | |
Reference Flow Rate
| Reference Flow Rate（unit: ml/min） | |||||||
| Product Model | 803Z/ZL | Product Model | 803Z/BT | ||||
| Tube type/Motor speed | 73#(ID9.6*OD16.2) | 82#(ID12.7*OD19.3) | Tube type/Motor speed | 73#(ID9.6*OD16.2) | 82#(ID12.7*OD19.3) | ||
| 166r | U shape | 1380 | 2355 | 24V | U shape | 2140（250rpm） | 2600（200rpm） |
| L shape | 1700 | 2620 | L shape | 2250（250rpm） | 2800（200rpm） | ||
| Straight | 1660 | 2700 | Straight | 2400（250rpm） | 2900（200rpm） | ||
| 326r | U Type | 2810 | 4590 | 36V | U Type | 2550（300rpm） | 3850（300rpm） |
| L Type | 3430 | 5230 | L Type | 2700（300rpm） | 4250（300rpm） | ||
| Straight | 3350 | 5340 | Straight | 3000（300rpm） | 4780（300rpm） | ||
| Flow Description | 1.The flow rate is measured at room temperature of 23°C and no pressure at the inlet and outlet, while transporting clean water. 2.When using 36V continuous operation, the temperature rise of the motor is relatively high. Please do a good job of ventilation and heat dissipation. | ||||||
Typical Applications
Ice cream machine, coffee machine, beverage machine, yogurt machine, water quality sampling equipment, dairy product cleaning machine, soup adding machine, bubble tea machine, vending machine, noodle machine, popcorn machine, soup adding machine, syrup machine
Overall Dimension
