Peristaltic Chemical Metering Pumps: The Ultimate Choice for Chemical Dosing

In industries such as chemical processing, pharmaceuticals, water treatment, and biological laboratories, the precise metering of chemical liquids is directly related to product quality, process stability, and production safety. As process requirements continue to rise, traditional diaphragm pumps and gear pumps have gradually revealed their limitations in terms of accuracy, corrosion resistance, and maintenance costs.

Against this backdrop, peristaltic chemical metering pumps have become the preferred choice for an increasing number of industrial users, thanks to their outstanding metering accuracy, contamination-free fluid transfer, and excellent chemical compatibility.

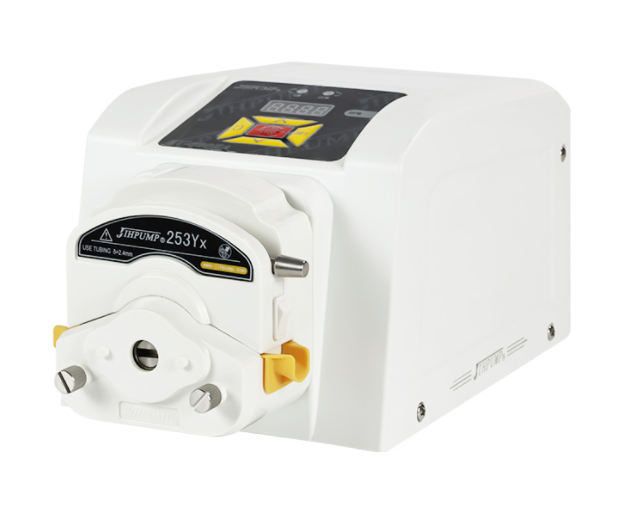

Part 1. What is a Peristaltic Chemical Metering Pump?

A peristaltic chemical metering pump represents the class of precision metering pumps in which liquid is transported by periodic compression of a flexible tube with rotating rollers or shoes. Fluid is passed only inside the tubing and is completely isolated from other pump components, thus guaranteeing stability, controllability, and safety of a chemical fluid transfer process.

Based on its core operating principle, peristaltic pumps inherently boast advantages in their accurate volumetric control and high repeatability, which make them perfect for precise dosing work in fields like chemical agents, catalysts, coating liquids, and pharmaceutical raw materials.

The basic structure typically includes:

• Pump head (roller or shoe design)
• Replaceable tubing
• Drive system (DC motor, stepper motor, or servo motor)
• Control module (speed and flow rate adjustment)

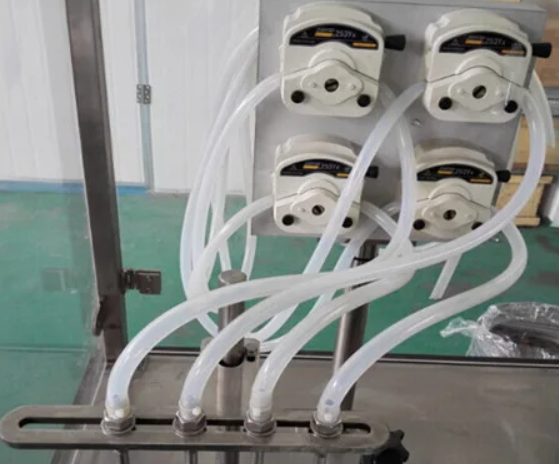

Part 2. Key Benefits of Peristaltic Chemical Metering Pumps

Peristaltic chemical metering pumps are finding increasing applications in the field of chemical dosing and precise fluid handling due to their novel operational mechanism and efficiency. Peristaltic metering pumps prove more effective in terms of accuracy, safety, cleanliness, and ease of maintenance compared to traditional methods. The following points highlight the important benefits associated with the use of these pumps.

1. High-Accuracy and Highly Repeatable

Peristaltic pump flow rate is linear to its speed of rotation; thus, the dosing rates can be accurately regulated. After calibration, the dosage accuracy of the peristaltic pump is reliable even after several years of service. Peristaltic dosing pumps are thus useful in applications requiring stringent control of ratios as well as accuracy when adding chemicals.

2. Superior Anti-Corrosion Properties and Operational Safety

As the liquid is only coming into contact with the flexible tubing, peristaltic chemical metering pumps find no difficulty in handling aggressive or dangerous substances like acids, alkalis, and solvents. Chemical liquids can be handled by peristaltic chemical metering pumps by simply selecting the tubing material.

3. Contamination-Free and Clean Fluid Transfer

As the peristaltic pumps do not consist of valves, seals, or fluid pathways, the danger of cross-contamination can never occur in this equipment. Hence, the main reason why peristaltic pumps are used in the pharmaceutical industry or biotechnology labs is because of the purity of the equipment.

4. Simple Maintenance and Low Operation Cost

Requirements for maintenance are minimal and entail only routine tubing replacement. There is no need to have the pump disassembled, which is always time- and labor-intensive. Therefore, peristaltic pumps have a lower total cost of ownership than traditional pumps.

5. Strong Self-Prime Ability and Dry Run Tolerance

Peristaltic pumps are known for their very good self-priming capability and ability to run dry without damaging the pump casing. This makes them very ideal for working in processes where there are varying process conditions.

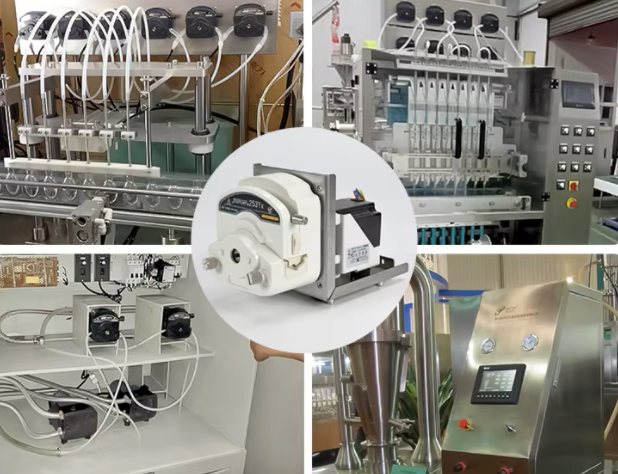

Part 3. Typical Applications of Peristaltic Chemical Metering Pumps

Owing to their dosage accuracy, compatibility, and safe transfer of chemicals, peristaltic chemical metering pumps are employed in several processes, which are listed below. These are some of the most notable. It is important to note that there may be a few more applications as well.

Chemical Industry

In chemical processing, peristaltic chemical metering pumps are normally utilized in chemical dosing applications of acids, bases, additives, and catalysts. This technology of controlled chemical dosing enables high-quality production by preventing hazards and risks associated with improper chemical dosing.

Pharmaceutical and Biotechnology

In pharma and biotech, high accuracy and purity are required for handling liquids in metering. The peristaltic chemical metering pumps are employed in transferring and dosing active ingredients, reagents, and intermediates in processes requiring high accuracy, low shear, and contamination-free handling, as specified by GMP and laboratory requirements.

Water Treatment Systems

Peristaltic chemical metering pumps have widespread use in municipal and industrial water treatment plants for the automated dosage of disinfection chemicals, flocculants, and pH adjustment chemicals. It has the advantage of being strongly self-priming and highly resistant to corrosion and is therefore considered an appropriate chemical dosing pump for continuous and unattended operation.

Food and Fine Chemical Processing

In the case of the food industry and the manufacturing of fine chemicals, peristaltic chemical metering pumps are preferred for transferring flavorings, colorings, and other fluids of a very high level of hygiene. The reason for this ease of cleaning and changing the tubing, which comes into contact with the fluid only.

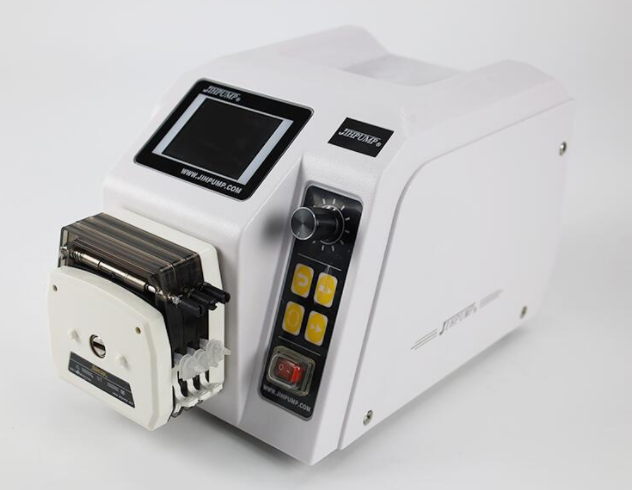

Part 4. How to Choose the Right Peristaltic Chemical Metering Pump?

Choosing the best peristaltic chemical metering pump can ensure that the process of accurate dosing takes place. When choosing the best peristaltic chemical metering pump, the following aspects are considered:

1. Flow Rate Ranges and Accuracy of Meters

To begin, the necessary range of flow rates and the accuracy of the dose, depending on the specific task, must be identified. The specific pump heads and the corresponding sizes of the tubes enable different levels of flow rates, and the motors used enable different levels of control accuracy.

2. Chemical Media Characteristics

The properties of the chemical fluid play a critical role in pump selection. Factors such as corrosiveness, viscosity, and operating temperature should be evaluated when selecting tubing materials. Common options include silicone, fluoroelastomer, PVC, and Norprene, each offering different levels of chemical resistance, flexibility, and service life.

3. Drive and Control Methods

For industrial usages, the flexibility offered by the presence of variable frequency drives or advanced intelligent control systems in peristaltic chemical metering pumps is beneficial. The presence of these functionalities enables easy interfacing with automated systems for precise control over speed, flow rate, and dosing cycles.

4. Operating Environment and Duty Cycle

The operating environment and runtime can impact pump performance as well as longevity. When running on continuous duty cycles, the lifespan of the tubing, the issue of heat dissipation, and the mechanical design of the pump must be given serious considerations.

Part 5. Maintenance and Usage Recommendations for Peristaltic Chemical Metering Pumps

Proper maintenance and correct operating practices are essential for ensuring the long-term performance, accuracy, and reliability of peristaltic chemical metering pumps. Scientific maintenance not only extends the service life of the pump but also helps maintain consistent dosing accuracy and overall system stability. The following recommendations should be followed in daily operation:

Regularly Inspect Tubing Wear

Tubing is the sole replaceable part in a peristaltic pump. Because it has a direct effect on the accuracy of fluid flow, its regular examination can anticipate any deviation in fluid flow or unexpected breakdowns.

Establish a Tubing Replacement Schedule

According to the operational time, compatibility with chemicals, and duty cycle, an appropriate replacement time should be determined for the defined tubing replacement interval. It is important to replace the tubing ahead of time to prevent downtime due to tube wear.

Perform Periodic Flow Calibration

Over time, tubing elasticity may change due to mechanical stress and chemical exposure. Periodic flow calibration ensures that the actual output matches the required dosing rate, helping to maintain high metering accuracy and process consistency.

Avoid Excessive Pressure and Temperature

Operating the pump under excessively high pressure or temperature can significantly shorten tubing life and affect performance. Ensure that the system operates within the recommended pressure and temperature ranges to protect the tubing and maintain reliable pump operation.

By following these maintenance and usage best practices, users can maximize the lifespan of peristaltic chemical metering pumps while ensuring stable, accurate, and safe operation across a wide range of applications.

JIHPump: Professional Peristaltic Chemical Metering Pump Manufacturer

As a dedicated manufacturer specializing in peristaltic pump technology, JIHPump is committed to providing global customers with high-performance, stable, and reliable Peristaltic Chemical Metering Pump solutions.

With nearly 20 years of industry experience and continuous technological innovation, our peristaltic chemical metering pumps are widely used in chemical processing, pharmaceuticals, water treatment, biotechnology, and fine chemical industries, meeting strict requirements for accuracy, safety, and durability under various operating conditions.

JIHPump’s core strengths include:

• High-precision metering design: Ensures stable and repeatable chemical dosing
• Multiple tubing and pump head configurations: Suitable for corrosive, viscous, and high-purity media
• Strict quality control system: Guarantees reliable performance during long-term continuous operation
• Professional technical support and fast response: Comprehensive assistance from pump selection to after-sales service

Whether you are searching for laboratory-standard precision metering pumps or industrial-standard chemical dosing systems, JIHPump offers reliable peristaltic chemical metering pumps and quality services.

If you would like to know more information about our products or application-dependent selection recommendations, reach out JIHPump. Allow an expert in the field of Peristaltic Pumps to assist you in optimizing your chemical dosing unit for increased efficiency, accuracy, and safety.
