What is Stepper Peristaltic Pump? – Explained in Detail

Stepper peristaltic pump is like a precise “liquid dancer,” carefully controlling every drop of fluid under the command of a stepper motor, ensuring a smooth and controllable transfer process.

Compared to traditional DC motor-driven peristaltic pumps, the stepper peristaltic pump offers greater precision with each rotation allowing for finer flow adjustments. We will provide a detailed introduction to everything you need to know about stepper peristaltic pumps in this post. Let’s get started!

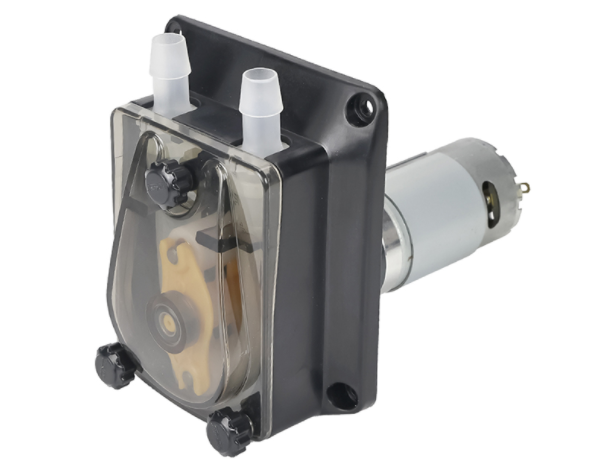

Part 1. What is a Stepper Peristaltic Pump?

Peristaltic pump is a type of pump that uses rollers to compress a hose, causing fluid to flow in one direction along the hose. Its main feature is that the fluid only comes into contact with the hose, preventing contamination and leakage.

However, stepper motor peristaltic pump uses a stepper motor as the driving source. Compared to traditional DC or AC motors, a stepper motor provides higher precision in flow control and more stable operation.

The stepper motor rotates in discrete steps, with a fixed angle for each step, and its speed is controlled by pulse signals, allowing for precise adjustment of fluid flow. This characteristic makes the stepper motor peristaltic pump ideal for applications that require accurate dosing and variable flow control.

Part 2. Working Principle of the Stepper Peristaltic Pump

The core working principle of the stepper peristaltic pump is similar to that of a regular peristaltic pump, relying on rollers to compress the hose and move the fluid. However, its driving component uses a stepper motor, providing more precise flow control. The specific working process is as follows:

• Stepper Motor Drive: The stepper motor rotates precisely according to a set step angle, ensuring that the pump head’s rollers operate at the desired rate.
• Hose Compression Action: The rollers progressively compress the hose, creating a fluid transfer pathway, and as the rollers rotate, they push the liquid forward.
• Precise Flow Control: By adjusting the pulse frequency and step angle of the stepper motor, the flow rate can be finely controlled to meet the needs of different applications.

Part 3. Advantages of Stepper Motor Peristaltic Pump

1. High Precision Flow Control

The stepper motor rotates step by step according to a preset step angle, allowing for much higher flow control accuracy compared to peristaltic pumps driven by regular motors. This makes it ideal for precise dosing applications.

2. Adjustable Flow Rate to Suit Different Needs

By adjusting the step angle and pulse frequency of the stepper motor, users can easily change the flow rate to meet the requirements of different scenarios.

3. No Contamination, Easy Maintenance

Since the fluid is only transported through the hose, the pump body does not come into direct contact with the liquid, preventing cross-contamination. This also reduces cleaning and maintenance costs for the equipment.

4. Suitable for Various Liquids

The stepper motor peristaltic pump can transport a wide range of fluids, including corrosive liquids, viscous liquids, suspensions, and sterile solutions, making it widely used in industries such as pharmaceuticals, food, and chemicals.

5. Low Pulsation, More Stable Flow

With the use of microstep driving technology, the stepper motor peristaltic pump reduces fluid pulsations, enhancing flow stability. This makes it especially popular in laboratory and medical applications.

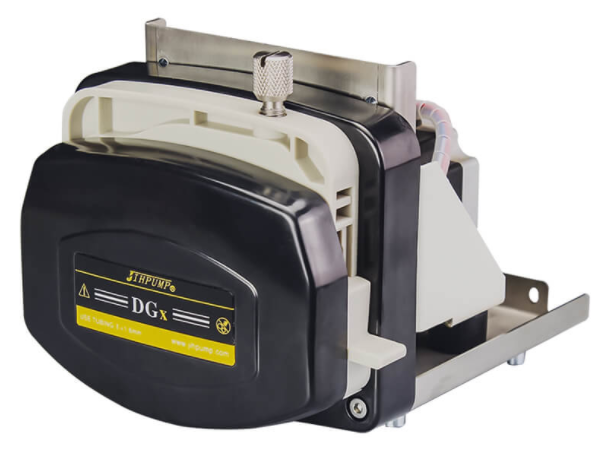

Part 4. Factors to Consider When Choose Right Stepper Peristaltic Pump

When selecting the right stepper peristaltic pump, several critical factors must be considered to ensure it meets the specific needs of your application. Here are the key aspects to focus on:

Flow Rate Requirements

Different models of peristaltic pumps support various flow rate ranges, so it’s important to choose one that aligns with the volume of fluid you need to pump.

Whether you need a low-flow system for precise dosing or a higher-flow pump for industrial applications, selecting the correct flow range will ensure efficiency and accuracy in fluid delivery.

Tube Material Compatibility

Since the tube comes into direct contact with the fluid, selecting the appropriate tube material is crucial to avoid contamination and ensure compatibility. For instance, silicone tubing is ideal for food and pharmaceutical applications, offering flexibility and resistance to heat.

On the other hand, materials like Viton or Tygon are better suited for handling aggressive chemicals and solvents due to their chemical resistance. Be sure to match the tube material with the characteristics of the fluid being transported to maintain safety and reliability.

Control Method

Stepper peristaltic pumps typically offer multiple control options, such as manual speed control, external signal control, or PLC (Programmable Logic Controller) integration.

The choice of control method will depend on the complexity of your application and how automated or user-friendly you want the system to be. For more precise, automated systems, PLC control may be the best option, while manual control might suffice for simpler tasks.

Pulsation and Flow Stability

High-precision applications, such as biological research or pharmaceutical processes, often require minimal pulsation for smooth and consistent fluid flow. A pump with low pulsation ensures stable flow, which is essential for processes that demand exact fluid quantities and high accuracy.

If your application involves sensitive experiments or precise dosing, make sure to choose a pump designed for low-pulsation operation to avoid fluctuations in flow that could affect your results.

Brand and Quality Assurance

Selecting a reputable manufacturer is key to ensuring the durability and reliability of your pump. Opt for pumps from trusted brands known for their quality control, engineering expertise, and customer support.

The durability of a stepper peristaltic pump is critical, especially for long-term, high-performance applications. A pump from a reputable brand will offer consistent performance, reduced maintenance costs, and a longer operational lifespan, ensuring that your investment delivers value over time.

Part 5. JIHPump Stepper Peristaltic Pump – Best Precision Fluid Handling Solution

JIHPump is the professional peristaltic pump manufacturer, it has different peristaltic pump, such as stepper peristaltic pump, linear peristaltic pump, industrial peristaltic pump and more.

Its stepper peristaltic pump is designed to offer exceptional precision and reliability in fluid transfer applications.

Combining cutting-edge stepper motor technology with the proven peristaltic pumping principle, this pump provides high accuracy in fluid flow control, making it an ideal solution for a wide range of industries, including pharmaceuticals, food processing, chemical handling, and laboratory applications.

Key Features of Stepper Peristaltic Pump from JIHPump

High Precision Flow Control: The JIHPump Stepper Peristaltic Pump uses a stepper motor for precise, step-by-step rotation, allowing for accurate fluid dosing and variable flow control.

Versatile and Adjustable Flow Rate: Easily adjust the flow rate by changing pulse frequency and step angle, offering flexibility for both slow and high-volume fluid delivery.

No Cross-Contamination: The pump’s tubing-only contact design prevents direct fluid contact with the pump body, reducing contamination risks and simplifying maintenance.

Durable and Reliable: Built with high-quality materials for long-lasting, stable performance, minimizing downtime and maintenance needs.

Minimal Pulsation for Smooth Flow: The stepper motor’s precise control ensures low pulsation, providing smooth, consistent flow, which is vital for sensitive applications.

Wide Compatibility with Fluids: Able to handle a variety of fluids, including corrosive liquids, thick fluids, suspensions, and sterile solutions, making it versatile across industries.

Wrap Up

Stepper peristaltic pumps, with their high precision, contamination-free operation, and easy maintenance, play a crucial role in the field of precision fluid transfer. As technology advances, the future of stepper peristaltic pumps will see even greater intelligence, featuring remote control, data monitoring, and automatic adjustment capabilities to meet the needs of a broader range of applications.

If you’re looking for high-quality stepper peristaltic pumps, JIHPump offers a range of precision, reliable products. Feel free to contact JIHPump for more information!
