Discover the Power of High IP Peristaltic Pumps
In industrial, pharmaceutical, chemical, and other extreme environments, conventional peristaltic pumps often fall short of meeting specific operational requirements, particularly in terms of dust and water ingress protection. However, the advent of “high IP” peristaltic pumps has filled this gap. Through enhanced design, these pumps achieve higher levels of protection, enabling them to operate reliably and consistently in harsh conditions.
What is a High IP Peristaltic Pump?
“High IP” refers to peristaltic pumps with a high Ingress Protection rating, meaning they have a high level of dust and water resistance. According to the IP code defined by IEC 60529 and ISO 20653, a higher IP rating indicates a stronger protection level against the intrusion of external objects.
For example, the BPP series of peristaltic pumps with an IP65 rating can completely prevent dust from entering and withstand water jets from any direction, ensuring that the pump is not damaged by water ingress.
Features and Advantages of High IP Peristaltic Pumps
Exceptional Sealing: The BPP series of high IP peristaltic pumps features a multi-layer sealing design that ensures internal components remain dry and clean, even under high-pressure washdown or water spray conditions.
Corrosion Resistance: The pump housing and accessories are constructed from premium corrosion-resistant materials, enabling them to withstand corrosive environments such as acid and alkaline solutions, as well as salt spray.
Reinforced Structural Design: The enhanced physical strength and durability make these pumps suitable for applications involving vibration or shock.
Easy Cleaning and Maintenance: The smooth surface design facilitates easy cleaning and simplifies pump tube replacement, reducing downtime and improving production efficiency.
Application Scenarios of High IP Peristaltic Pumps
High IP peristaltic pumps represent a technological innovation in the industry, and their exceptional performance has earned them market recognition and trust. Whether in complex industrial settings or extreme natural environments, they have demonstrated remarkable capabilities. With ongoing technological advancements, the future of high IP peristaltic pumps holds even more promising developments.
The versatility of high IP peristaltic pumps makes them suitable for a wide range of applications across various industries:
Harsh Environment Operations: In facilities like chemical plants, pharmaceutical manufacturing, and food processing, equipment is frequently exposed to harsh conditions such as high-temperature steam, corrosive gases, and particulate matter. High IP rated peristaltic pumps are ideally suited for fluid transfer in these demanding environments due to their enhanced protection against ingress.
Outdoor Operations: In applications such as agricultural irrigation, urban drainage systems, and marine exploration, peristaltic pumps must withstand exposure to various weather elements. The high ingress protection rating ensures reliable operation even in adverse weather conditions.
Pharmaceutical Industry: Within GMP manufacturing facilities, high IP peristaltic pumps are employed to transport high-purity solvents and pharmaceutical liquids, safeguarding the integrity of the production process by preventing external contamination.
Chemical Production: When handling toxic, hazardous, or flammable chemicals, the high level of protection provided by high IP rated peristaltic pumps helps prevent leaks and safeguards personnel.
Food and Beverage Processing: These pumps are well-suited for pumping viscous fluids such as syrups, sauces, and food-grade chemicals in food and beverage production.
Marine Applications: In marine environments, high IP peristaltic pumps are used to pump seawater, bilge water, and other fluids.
JIHPUMP’s High IP Rating Series Peristaltic Pumps
JIHPUMP, a leading peristaltic pump manufacturer, offers a range of high IP rated peristaltic pumps designed to excel in demanding applications.
BT-600EL High IP Rating Series:
BT-600EL High IP Rating Series is a high-performance pump designed for extreme environments, featuring a fully aluminum alloy die-cast housing with an IP54 protection rating, effectively resisting dust and water splashes to ensure stable operation in high dust and humidity conditions. This pump has a four-digit LED display that shows real-time speed with a resolution of up to 0.1 rpm.
Its high-precision stepper motor operates with 8 subdivision drives for smooth operation and low noise. The user-friendly interface makes it easy to adjust speed and direction with membrane buttons. Additionally, the BT-600EL offers three main functions: flow control, timing, and filling, and supports footswitch and infrared sensing for automated filling.
Product Parameters
| Product Parameters | |
| Product Name | BT-EL Series |
| Product Model | 600EL |
| Speed Range | 0.1～600r |
| Speed Resolution | 0.1rpm |
| Outlet Pressure | ≤0.17MPa |
| Major Function | Start/stop, cw/ccw rotation, up/down speed，Program Settings |
| External Control Mode | Foot switch、0～5V、0～10V、4～20mA、 ModBus communication protocol |
| Display | Digital display |
| Voltage | AC 100～240V，50/60Hz，2.0A |
| Power | ≤54W |
| Work Environment | Temperature 0 ~ 60 ℃, relative humidity ＜ 85%RH |
| Motor Type | 57 type stepper motor drive |
| Motor Life | 6000~20000h |
| Drive Size | L282*W160*H191mm |
| IP Rating | IP54 |

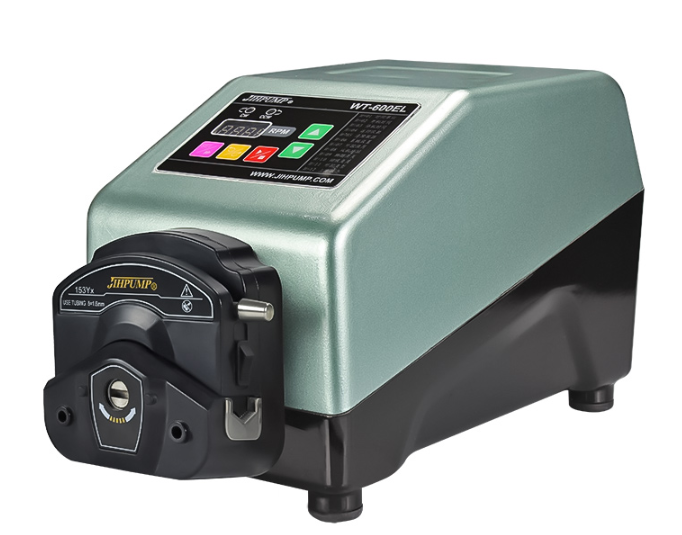

WT-600EL High IP Rating Series:
WT-600EL High IP Rating Series is an intelligent pump designed for demanding industrial environments, featuring a robust fully enclosed aluminum alloy casing with an IP54 protection rating, ensuring reliability in harsh conditions. It utilizes advanced LED display technology to show real-time speed with a resolution of 0.1 rpm, facilitating easy monitoring and adjustments.
The high-performance stepper motor has 8 subdivisions for high precision control and reduced operational resonance. The pump has a user-friendly interface, allowing flexible speed and direction adjustments via membrane buttons and includes practical features such as flow control, timing, and filling. It can be externally controlled through various signals (such as 4-20mA, 0-10V, etc.), making it compatible with various pump heads to meet different flow needs.
Product Parameters
| Product Parameters | |
| Product Model | WT-600EL |
| Speed Range | 30～600rpm |
| Outlet Pressure | ≤0.17MPa |
| Voltage | AC 100～240V，50/60Hz，2.0A |
| Power | ≤120W |
| Work Environment | Temperature 0 ~ 60 ℃, relative humidity ＜ 85%RH |
| Motor Type | Brushless DC gear motor drive |
| Display | LED digital display |
| External Control Mode | 0～5V、0～10V、4～20mA、 ModBus communication protocol |
| Function | Start/stop, cw/ccw rotation, up/down speed，Program setting (timing, filling) |
Need to Find High IP Peristaltic Pumps?
High IP peristaltic pumps offer a robust and reliable solution for fluid transfer in demanding environments. By incorporating advanced ingress protection features, these pumps ensure consistent performance and minimize downtime, even in the most challenging conditions.
By carefully evaluating these factors and consulting with experienced peristaltic pump manufacturers like JIHPUMP, you can select the ideal high IP peristaltic pump for your specific needs.
